DescriptionMaterial:Steel.Version:Case-hardened (56 ±1 HRC) and blue electro zinc-plated.

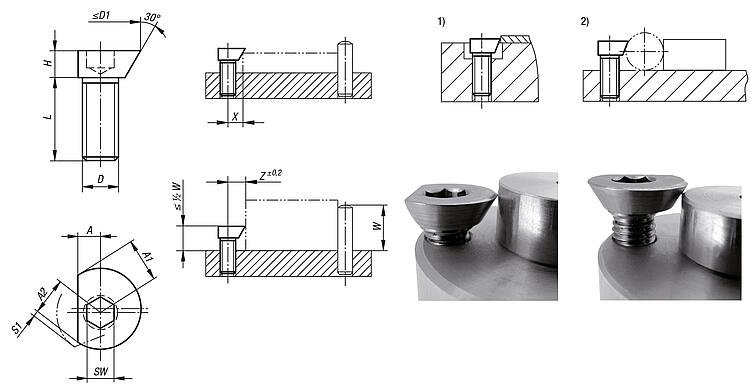

Grade 8.8Note:Robust, compact spiral cam clamping screws that exert a positive down force on diverse workpiece forms.Assembly:Drill and tap several holes at a distance X or Z (see diagram). Screw the cam screw into the required height and position with the flat side to the workpiece. Position the workpiece and tighten the cam screw with a hexagon key. Full clamping is achieved with approximately a 1/3 rotation. Lubricate the tapped hole regularly.
Place stops on the face towards which the screw turns to prevent the workpiece rotating away.On request:Spiral cam screws with LH thread.Drawing reference:1) clamping sheet metal
2) clamping round parts DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| Order No. | A | A1 | A2 | D
| D1
max. | H | L | SW | S1
(travel) | X | Z | Clamping
force
kN | Tightening
torque
max. Nm | CAD | Acc. | Price | Order |
|---|
| 04433-0408 | 3 | 4,6 | 4 | M4 | 9,2 | 3 | 8 | 2,5 | 0,6 | 3,5 | 4,2 | 0,09 | 1,5 |  | | on request | | | 04433-0510 | 3,5 | 5,7 | 5 | M5 | 11,4 | 4 | 10 | 3 | 0,7 | 4,2 | 5,2 | 0,1 | 2 | | | on request | | | 04433-0612 | 4,5 | 7,1 | 6,1 | M6 | 14,2 | 5 | 12 | 4 | 1 | 5,4 | 6,4 | 0,3 | 4,5 | | | on request | | | 04433-0816 | 5,5 | 8,9 | 7,7 | M8 | 18 | 6 | 16 | 5 | 1,2 | 6,6 | 8 | 2,7 | 20 | | | on request | | | 04433-1020 | 6,5 | 11,1 | 9,4 | M10 | 22,2 | 7 | 20 | 6 | 1,7 | 8,3 | 9,8 | 4 | 30 | | | on request | | | 04433-1224 | 8 | 13,5 | 11,6 | M12 | 27 | 9 | 24 | 8 | 1,9 | 10,1 | 12 | 5,4 | 44 | | | on request | |
