04432Fixture clamps unequal hexagon |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Cam screw steel tempered to 10.9.
Hexagon washer mild steel.Version:Cam screw black oxidised.
Hexagon washer hardened and black oxidised.Note:Theses unequal hexagon fixture clamps can minimise the cost of clamping in fixtures. The clamping range can be altered up to 17 mm from the same tapped hole. Simply rotate the hexagon washer.
On request:Replacement cam screws.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
| | | | -
- 1/12, 2/13, 3/14, 4/15, 5/16, 6/17
- 7/18, 8/19, 9/20, 10/21, 11/22, 12/23
- 13/24, 14/25, 15/26, 16/27, 17/28, 18/29
| | | | | | | | | Reset |
|---|

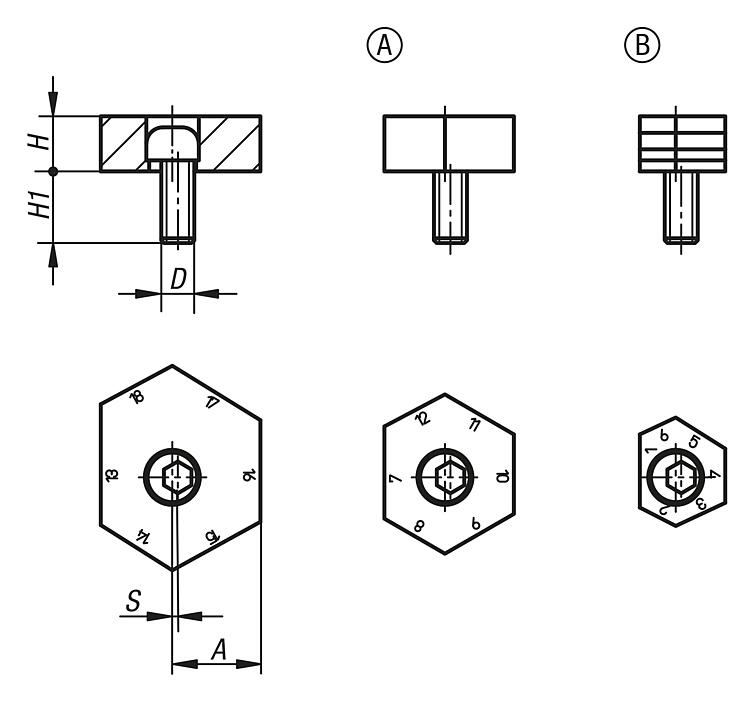

| Order No. | Form | Version
| Distance A
by face No. | D | H | H1 | S
(cam travel) | Clamping
force
kN | CAD | Acc. | Price | Order |
|---|
| 04432-09 | A | smooth | 1/12, 2/13, 3/14, 4/15, 5/16, 6/17 | M12 | 10 | 22 | 1 | 18 |  | | on request | | | 04432-10 | A | smooth | 7/18, 8/19, 9/20, 10/21, 11/22, 12/23 | M12 | 10 | 22 | 1 | 18 | | | on request | | | 04432-11 | A | smooth | 13/24, 14/25, 15/26, 16/27, 17/28, 18/29 | M12 | 10 | 22 | 1 | 18 | | | on request | | | 04432-13 | B | serrated | 1/12, 2/13, 3/14, 4/15, 5/16, 6/17 | M12 | 10 | 22 | 1 | 18 | | | on request | | | 04432-14 | B | serrated | 7/18, 8/19, 9/20, 10/21, 11/22, 12/23 | M12 | 10 | 22 | 1 | 18 | | | on request | | | 04432-15 | B | serrated | 13/24, 14/25, 15/26, 16/27, 17/28, 18/29 | M12 | 10 | 22 | 1 | 18 | | | on request | |
