Item description/product images |
|
|
DescriptionMaterial:Cam tool steel.
Shaft and grip QT steel.
Ball knob thermoset PF 31.Version:Cam and shaft hardened and black oxidised.
Grip black oxidised.
Ball knob, black.Note:* Admissible hand force for the handle.Accessory:Standard handles 06355.
Screw-in handles with adjustable torque 06357.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

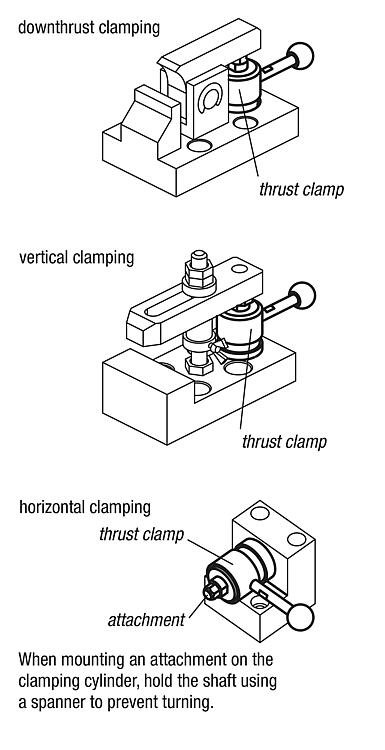

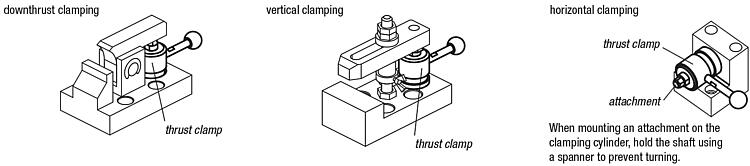

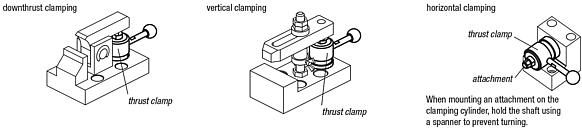

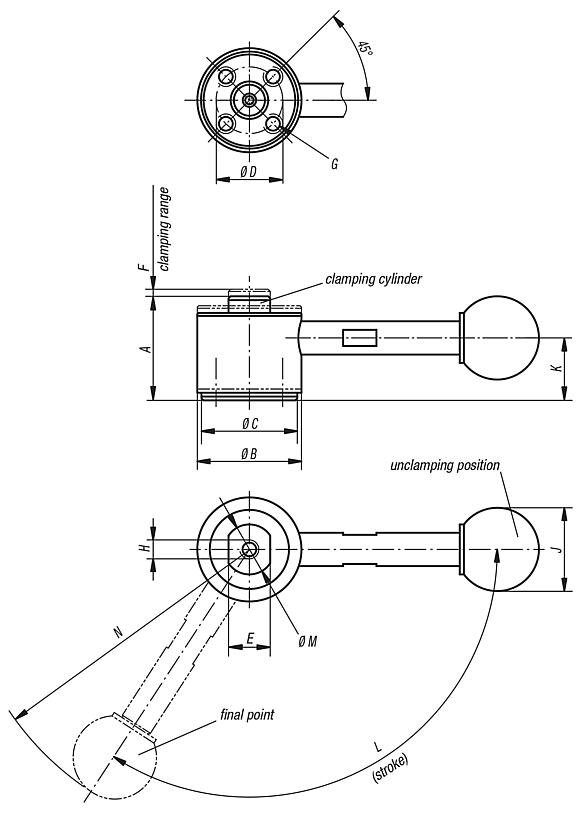

Order No.
| Version 1 | A
min. | A
max. | B | C | D | E | F | G | H | J | K | L | M | N | Clamping
force
N | Hand
force
FH N | CAD | Acc. | Price | Order |
|---|
| 04402-252500 | without grip | 25 | 26,7 | 25 | 23 | 16 | 10 | 1,7 | M4 x 6 | M4x6 | - | 15 | 123° | 12 | - | 3000 | 150* |  |  | on request | | | 04402-252501 | with grip | 25 | 26,7 | 25 | 23 | 16 | 10 | 1,7 | M4 x 6 | M4x6 | 20 | 15 | 123° | 12 | 69,5 | 3000 | 150* | | | on request | | | 04402-323200 | without grip | 32 | 34,5 | 32 | 30 | 20 | 13 | 2,5 | M6 x 9 | M6 x 9 | - | 19,5 | 135° | 15 | - | 4000 | 200* | | | on request | | | 04402-323201 | with grip | 32 | 34,5 | 32 | 30 | 20 | 13 | 2,5 | M6 x 9 | M6 x 9 | 25 | 19,5 | 135° | 15 | 103 | 4000 | 200* | | | on request | |
