04422Clamping jaws for floating clamps |
go back |
|
|
DescriptionMaterial:Steel.Version:Nitrided and black oxidised.Note:The clamping jaws can be used for floating clamps to increase the clamping range.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

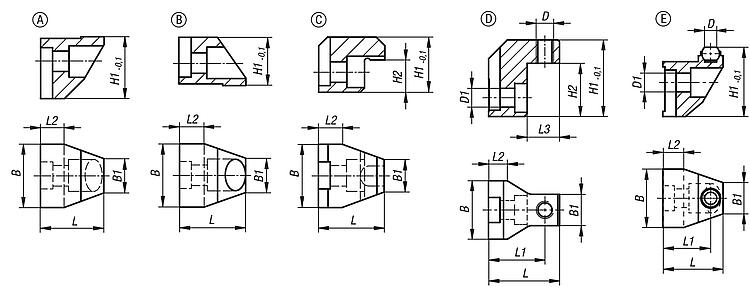

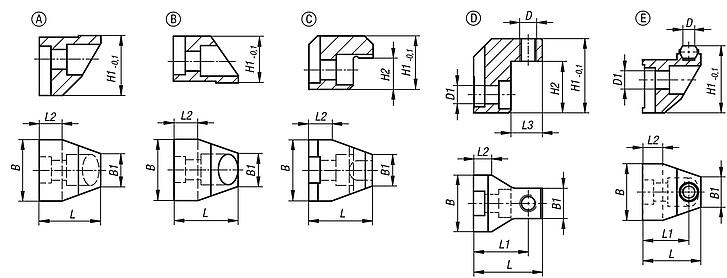

Drawings (total overview) |
| Order No. | Form | Version 1 | B
| B1 | H1 | L | L2 | CAD | Acc. | Price | Order |
|---|

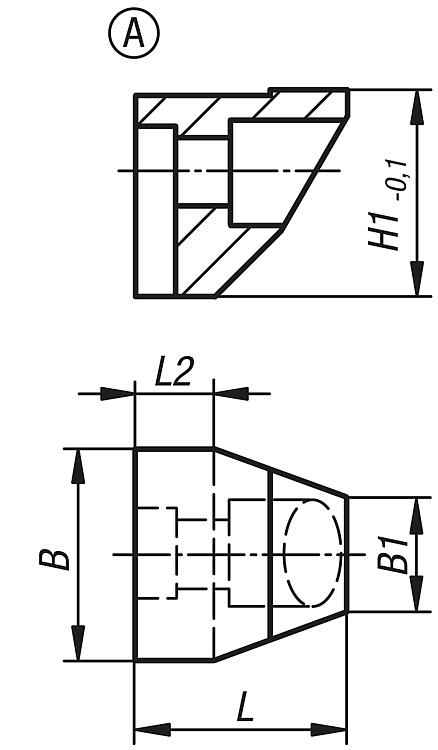

| 04422-90000 | A | standard lower jaw | 28 | 15 | 26,8 | 28 | 10 |  | | on request | |
|
| Order No. | Form | Version 1 | B
| B1 | H

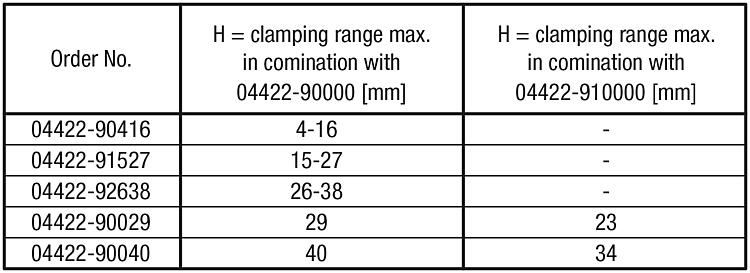

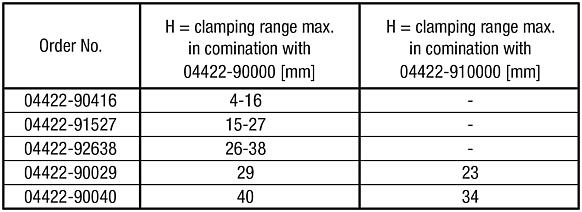

clamping range
| H1 | L | L2 | CAD | Acc. | Price | Order |
|---|

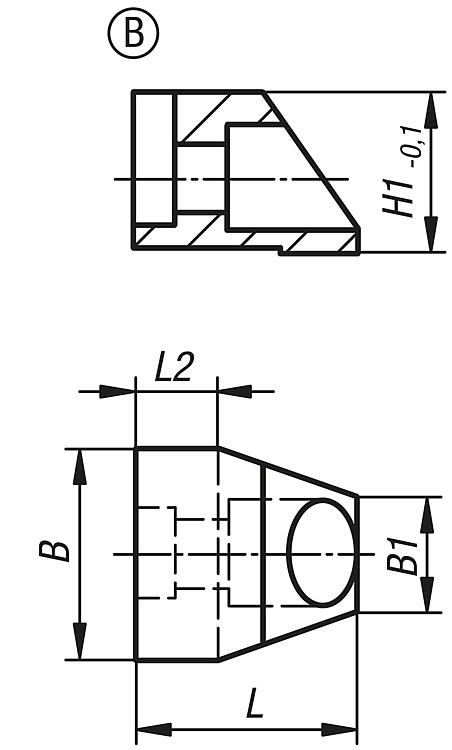

| 04422-90012 | B | standard upper jaw | 28 | 15 | 0-12 | 21 | 29,5 | 11,5 | | | on request | |
|
| Order No. | Form | Version 1 | B
| B1 | H
clamping range
| H1 | H2 | L | L2 | CAD | Acc. | Price | Order |
|---|

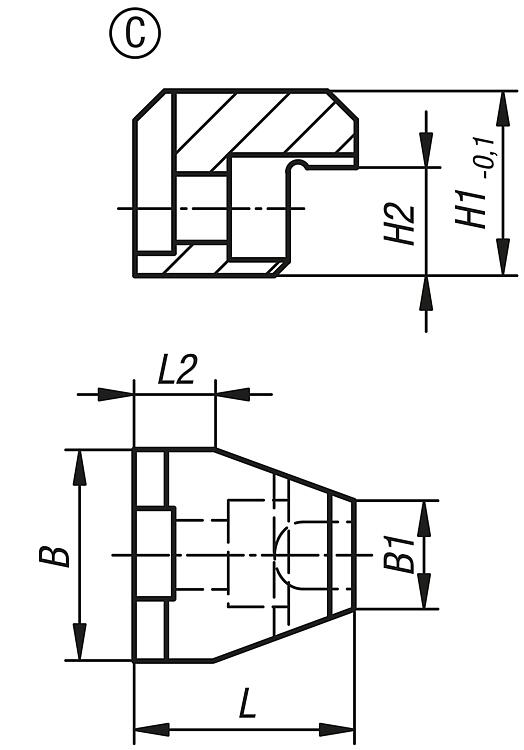

| 04422-90416 | C | exchange upper jaw | 28 | 15 | 4-16 | 24,5 | 3,5 | 29,5 | 11,5 | | | on request | | | 04422-91527 | C | exchange upper jaw | 28 | 15 | 15-27 | 24,5 | 14,5 | 29,5 | 11,5 | | | on request | | | 04422-92638 | C | exchange upper jaw | 28 | 15 | 26-38 | 35,5 | 25,5 | 29,5 | 11,5 | | | on request | |
|
| Order No. | Form | Version 1 | B | B1 | D
| D1 | H1 | H2 | L | L1 | L2 | L3 | CAD | Acc. | Price | Order |
|---|

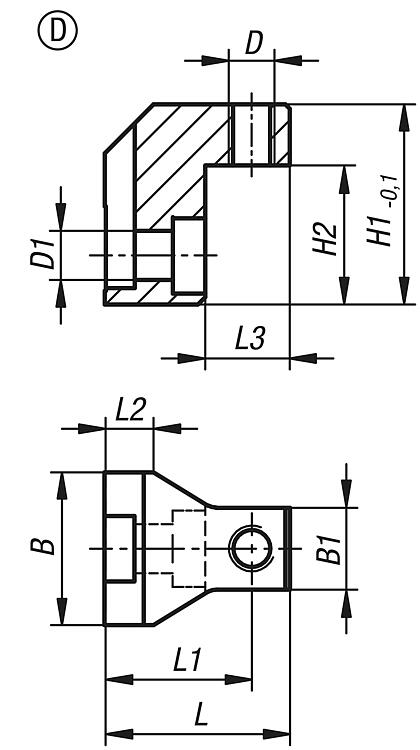

| 04422-90029 | D | upper jaw | 28 | 15 | M8 | 4,5 | 29,5 | 16,5 | 31,5 | 24,5 | 8 | 16 | | | on request | | | 04422-90040 | D | upper jaw | 28 | 15 | M8 | 4,5 | 40,5 | 27,5 | 31,5 | 24,5 | 8 | 16 | | | on request | |
|
| Form | Order No. | Version 1 | B | B1 | D
| D1 | H1 | L | L1 | L2 | CAD | Acc. | Price | Order |
|---|

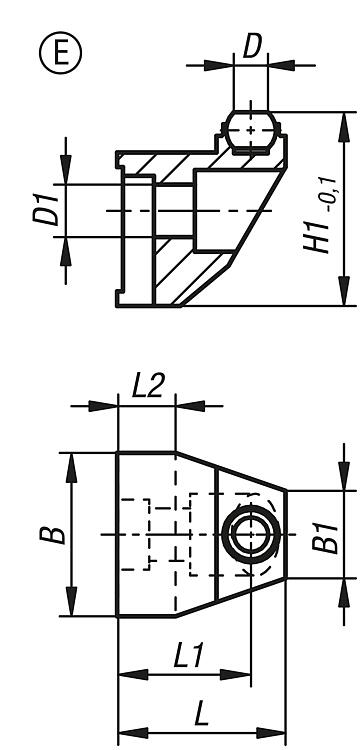

| E | 04422-910000 | lower jaw | 28 | 15 | 5,8 | 4,5 | 32,8 | 30 | 23 | 10 | | | on request | |
|
