04430Clamping element “arness” |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Steel.
Ball knob thermoset PF 31Version:Housing painted silver-grey hammertone.
All other parts and accessories black oxidised.

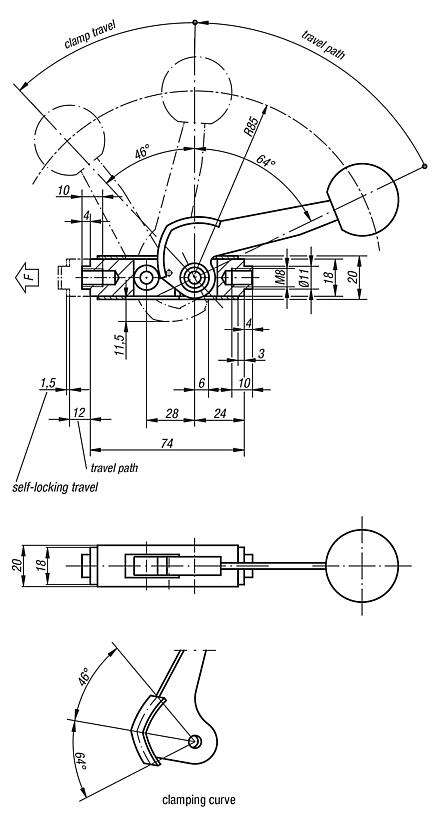

Ball knob red.Note:The travel path is 12 mm. Self-locking occurs in any position within only 1.5 mm of clamp travel, allowing workpieces with tolerances of up to 1 mm to be securely clamped. The arness clamping element can be fitted in any horizontal or vertical position.
Several standard parts have been developed to achieve individual adaptation for various circumstances and are available as optional accessories.
The thrust pad and all parts of the cam system subject to heavy loads are case-hardened.
The maximum permissible clamping force is approximately 4905 N. DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

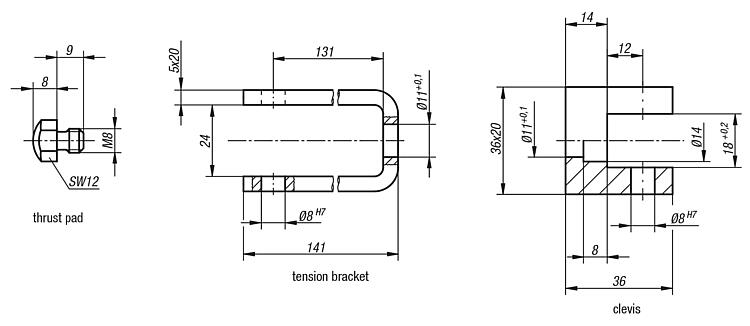

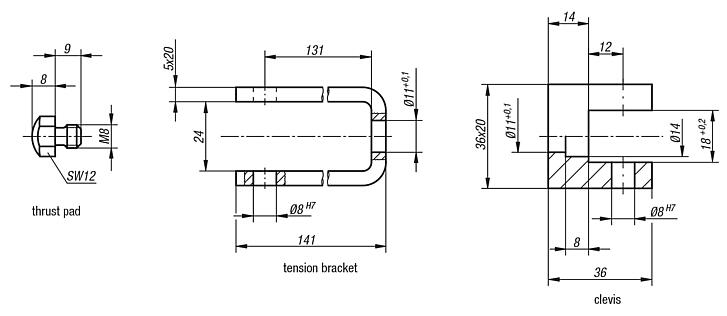

Drawings (total overview) |
Order No.
| Dimensions | CAD | Acc. | Price | Order |
|---|
| 04430-01 | see drawing |  | | on request | |
|
|
