Flat clamps with cam

04472

Flat clamps with cam

Products
- Product overview
  - Flexible standard component system
    - Clamp straps Clamping devices
      - Clamping jaws Edge clamps Tension nuts and screws
        Flat clamps with cam

Item description/product images

Show/filter all items

DescriptionProduct description:Form A with locating pin.
Form B without locating pin.
Form C without locating pin, with tension lever.Material:Carbon steel.Version:Black oxidised.Note:By Form C, the tension lever can be
user-friendly aligned in 30° increments
by loosening the grub screw.Assembly:See drawing (Form A).Advantages:- Compact and flat design
- Quick and easy clamping of componentsDrawing reference:

1) Clamping start position
2) Clamping end position
3) Grub screw

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04472 Flat clamps with cam

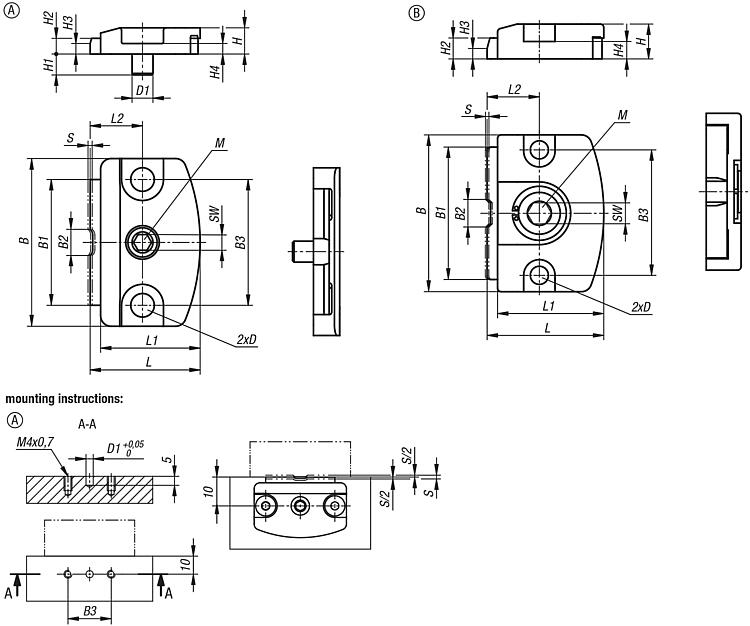

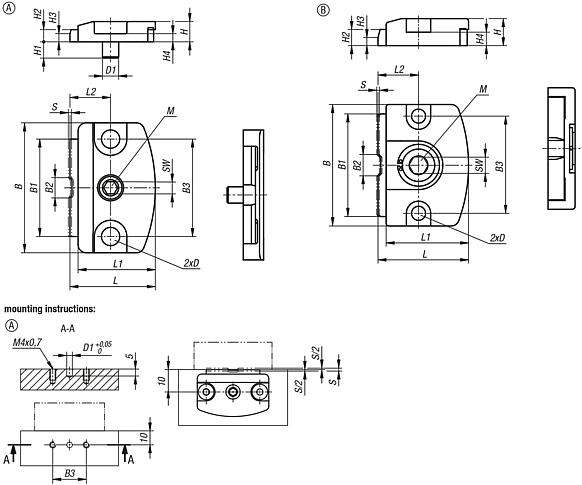

Drawings (total overview)

Flat clamps with cam

Flat clamps with cam

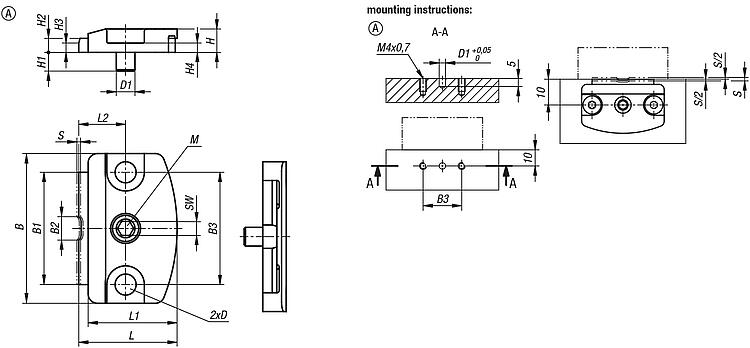

Flat clamps with cam, Form A, with locating pin

More information

Drawings

Flat clamps with cam, Form A, with locating pin

Item selection/filter

Order No.	Form	B	B1	B2	B3	D	D1	H	H1	H2	H3	H4	L	L1	L2	SW	Travel S	Clamping force kN	Tightening torque max. Nm	CAD	Acc.	Price	Order
04472-00130	A	32	24	5	24	4,5	4	5	4	3	2	2	21	19	10	3	0,8	1,3	2,1			on request

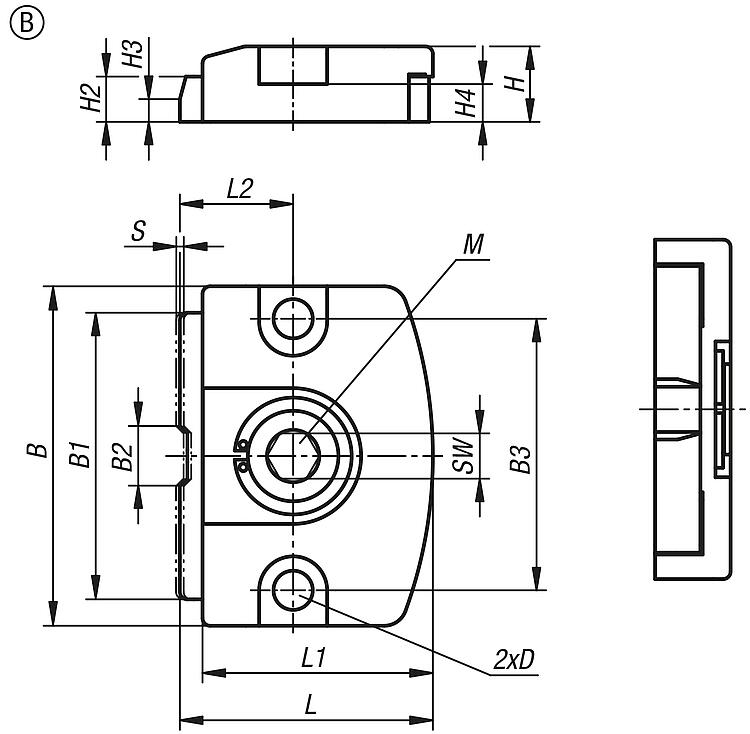

Flat clamps with cam, Form B, without locating pin

More information

Drawings

Flat clamps with cam, Form B, without locating pin

Item selection/filter

Order No.	Form	B	B1	B2	B3	D	H	H2	H3	H4	L	L1	L2	SW	Travel S	Clamping force kN	Tightening torque max. Nm	CAD	Acc.	Price	Order
04472-10400	B	45	38	8	36	5,2	10	6	3	5	33,5	30,5	15	6	1	4	10			on request
04472-10600	B	70	60	12	55	8,2	15	9	5	7	50	46	22	10	2	6	27			on request

Flat clamps with cam, Form C, without locating pin, with tension lever

More information

Drawings

Flat clamps with cam, Form C, without locating pin, with tension lever

Item selection/filter

Order No.	Form	B	B1	B2	B3	D	D1	D2	H	H2	H3	H4	H5	H6	H7	L	L1	L2	R	Travel S	Hand force FH N	Clamping force kN	CAD	Acc.	Price	Order
04472-20600	C	70	60	12	55	8,2	19	M5x5	15	9	5	7	30	46	18	50	46	22	100	2	280	6			on request
04472-20400	C	45	38	8	36	5,2	13	M4x4	10	6	3	5	20	30	12	33,5	30,5	15	63	1	170	4			on request
