        Toe clamps compact

Item description/product images

DescriptionMaterial:Steel.Version:Body tempered and black oxidised.
Square washer case-hardened and brass-plated.Note:This cam action compact toe clamp requires very little space to produce multi-fixture clamping.

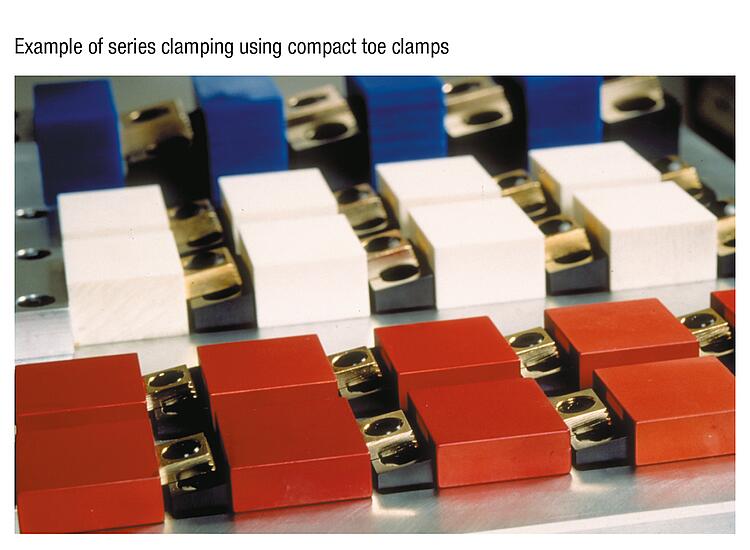

Workpieces can be clamped in series by using the back side of a clamp as a stop for the next row.
Mount preferably in slots with B +0.05 mm. The height of the clamp can be adjusted by altering the slot depth.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04521 Toe clamps compact

308 kB

Drawings

Item selection/filter

Order No.	L	L1	L2	B	H	H1	H2	H3 max.	S	D	S1 (travel)	SW	SW1	Clamping force kN	Tightening torque max. Nm	Accessories NLM	Price
04521-08	43,2	25,4	19	19	12,7	15,7	6,4	21,4	1,5	M8	1,6	5	7	8,9	28	04521-10-1013	on request
04521-10	54	33,5	25,4	25,4	11,4	15,4	9,7	24,5	1,8	M10	2	7	8	17,8	88	04521-10-1216	on request
04521-12	75	50,8	38	38,1	25,5	31,5	13	43	2,05	M12	2,5	10	12	26,7	135	04521-10-1630	on request
