        Wedge clamps jaw face smooth or serrated

Item description/product images

DescriptionMaterial:Wedge and jaw segments carbon steel.Version:Wedge and jaw segments hardened, black.Note:The functioning principle make the wedge clamps ideal for series clamping. The wedge form can exert high clamping forces.
These wedge clamps can be mounted in grid holes or T-slots. Tightening the socket screw moves the wedge down and the jaws out pressing the workpieces against the fixtures fixed stops.
The wedge has a slightly elongated hole allowing for movement to compensate for tolerances.

Spread width:
M8 = ±0.5 mm
M10 = ±1.0 mm
M12 = ±1.0 mm

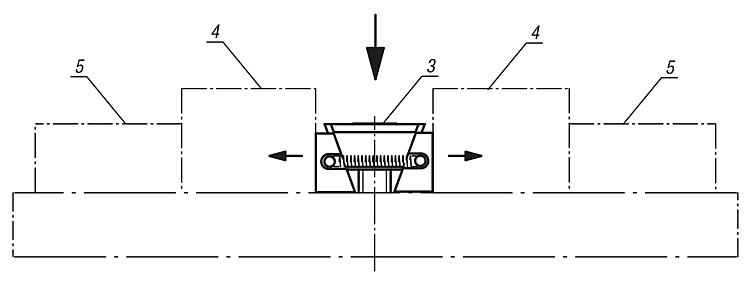

M16 = ±1.5 mmDrawing reference:

D) DIN 6912 cap screw

1) Jaw face smooth
2) Jaw face serrated
3) Wedge clamps
4) Workpiece
5) Fixed stop

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04524 Wedge clamps jaw face smooth or serrated

192 kB

Drawings

Item selection/filter

Order No.	Version 1	Version 2	A min.	A max.	B	C	D	E	Clamping force max. kN	Tightening torque max. Nm	Price
04524-1108	smooth	double sided	30,5	33,5	24	15	M8X25	2	15	25	on request
04524-1110	smooth	double sided	32	37	28	19	M10X25	3,5	20	49	on request
04524-1112	smooth	double sided	44	49,5	30	22	M12X40	3,5	30	85	on request
04524-1116	smooth	double sided	55	62	40	29	M16X60	4	50	210	on request
04524-2108	serrated	double sided	30,5	33,5	24	15	M8X25	2	15	25	on request
04524-2110	serrated	double sided	32	37	28	19	M10X25	3,5	20	49	on request
04524-2112	serrated	double sided	44	49,5	30	22	M12X40	3,5	30	85	on request
04524-2116	serrated	double sided	55	62	40	29	M16X60	4	50	210	on request
04524-1208	smooth	double sided	30,5	33,5	30	15	M8X25	2	15	25	on request
04524-1210	smooth	double sided	32	37	38	19	M10X25	3,5	20	49	on request
04524-1212	smooth	double sided	44	49,5	48	22	M12X40	3,5	30	85	on request
04524-1216	smooth	double sided	55	62	48	29	M16X60	4	50	210	on request
04524-2208	serrated	double sided	30,5	33,5	30	15	M8X25	2	15	25	on request
04524-2210	serrated	double sided	32	37	38	19	M10X25	3,5	20	49	on request
04524-2212	serrated	double sided	44	49,5	48	22	M12X40	3,5	30	85	on request
04524-2216	serrated	double sided	55	62	48	29	M16X60	4	50	210	on request
