        Wedge clamps jaw faces serrated

Item description/product images

DescriptionMaterial:Body and clamping segments tool steel.Version:Body hardened.
Jaw segments hardened (49-51 HRC) black oxidised.
Wedge faces ground.Note:The compact design makes these wedge clamps ideal for horizontal and vertical series clamping. The hardened and ground wedge faces can exert high clamping forces. These wedge clamps can be mounted in grid holes or T-slots. Tightening the DIN 912 socket screw moves the wedge down and the jaws out pressing the workpieces against the fixtures fixed stops.

The jaws of version 04525-08 and 04525-0810 are not serrated.

The wedge has a slightly elongated hole allowing for movement.

Spread width:
04525-08 = ±0.5 mm
04525-12 = ±1.0 mm

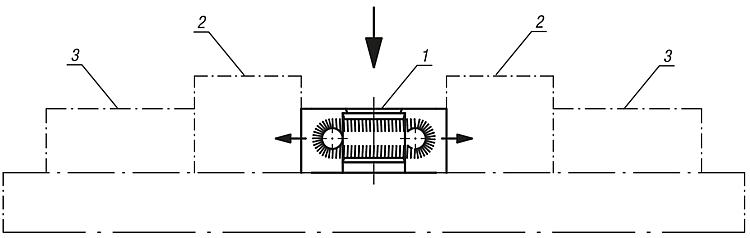

04525-16 = ±1.5 mmDrawing reference:

D) DIN 912 cap screw

1) Wedge clamps
2) Workpiece
3) Fixed stop

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04525 Wedge clamps jaw faces serrated

399 kB

Drawings

Item selection/filter

Order No.	Version 1	A min.	A max.	B	B1	C	D	E	Version 2	G	Clamping force max. kN	Tightening torque max. Nm	Price
04525-08	smooth	27	31	29	21	15	M8X25	2,5	for tapped hole	M8	15	25	on request
04525-0810	smooth	27	31	29	21	15	M8X25	2,5	for t-slot	10	15	25	on request
04525-12	serrated	42	49	41	30	22	M12X40	4	for tapped hole	M12	30	85	on request
04525-1214	serrated	42	49	41	30	22	M12X30	4	for t-slot	14	30	85	on request
04525-16	serrated	57	66	56	42	29	M16X60	5	for tapped hole	M16	50	210	on request
04525-1618	serrated	57	66	56	42	29	M16X50	5	for t-slot	18	50	210	on request
