        Wedge clamps double jaw faces serrated

Item description/product images

DescriptionMaterial:Body and jaw segments tool steel.Version:Body hardened.
Jaw segments hardened (49-51 HRC) and black oxidised.
Wedge faces ground.Note:Because of their compact design, the double wedge clamps are especially suitable for horizontal and vertical multiple clamping. The hardened and ground wedge surfaces make high clamping forces possible.
Optionally, the appropriate wedge clamp can be mounted either in a grid hole or T-slot. Inserting a socket head screw DIN 912 moves the two clamping segments outwards and presses the workpieces against a fixed stop.
The so-called “draw-down effect” is caused by the double wedge of this version.

Travel acc. to order No.:
04527-12 = ±1.0 mm

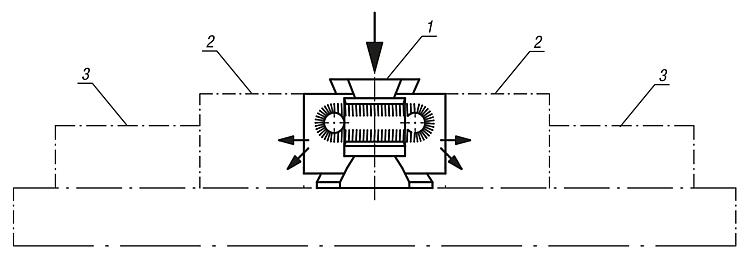

04527-16 = ±1.5 mmDrawing reference:

D) DIN 912 cap screw

1) Wedge clamps
2) Workpiece
3) Fixed stop

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04527 Wedge clamps double jaw faces serrated

424 kB

Drawings

Item selection/filter

Order No.	A min.	A max.	B	B1	C	D	E	Version 2	G	Clamping force max. kN	Tightening torque max. Nm	Price
04527-12	42	49	41	30	36	M12X60	5	for tapped hole	M12	40	85	on request
04527-1214	42	49	41	30	36	M12X50	5	for t-slot	14	40	85	on request
04527-16	57	67	56	42	50	M16X80	5	for tapped hole	M16	60	210	on request
04527-1618	57	67	56	42	50	M16X70	5	for t-slot	18	60	210	on request
