Wedge clamps

04567

Wedge clamps

Products
- Product overview
  - Flexible standard component system
    - Clamp straps Clamping devices
      - Clamping jaws Edge clamps Tension nuts and screws
        Wedge clamps

Item description/product images

DescriptionMaterial:Carbon steel.Version:Jaw plate hardened (33–39 HRC) and black oxidised.Note:Due to the functioning principle, wedge clamps are suitable for clamping in series.
The wedges generate higher clamping forces.
The wedge clamps are available with cap screws or countersunk screws.

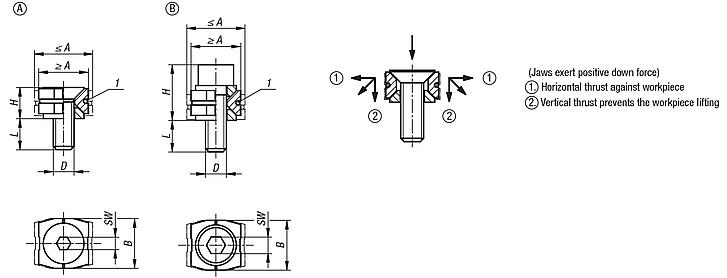

Wedge clamps with pull-down effect.Drawing reference:

Dimension L refers to ≤ A.
Dimension H refers to ≥ A.

1) O-ring

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04567 Wedge clamps

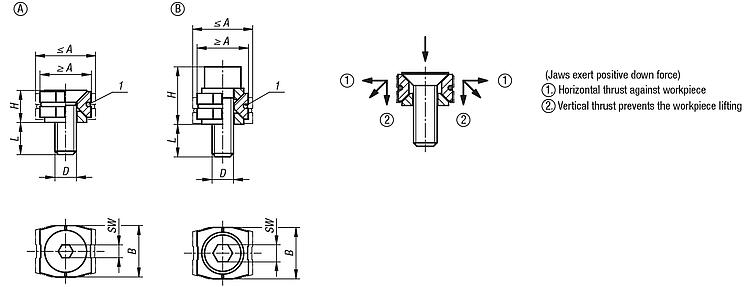

Drawings (total overview)

Wedge clamps

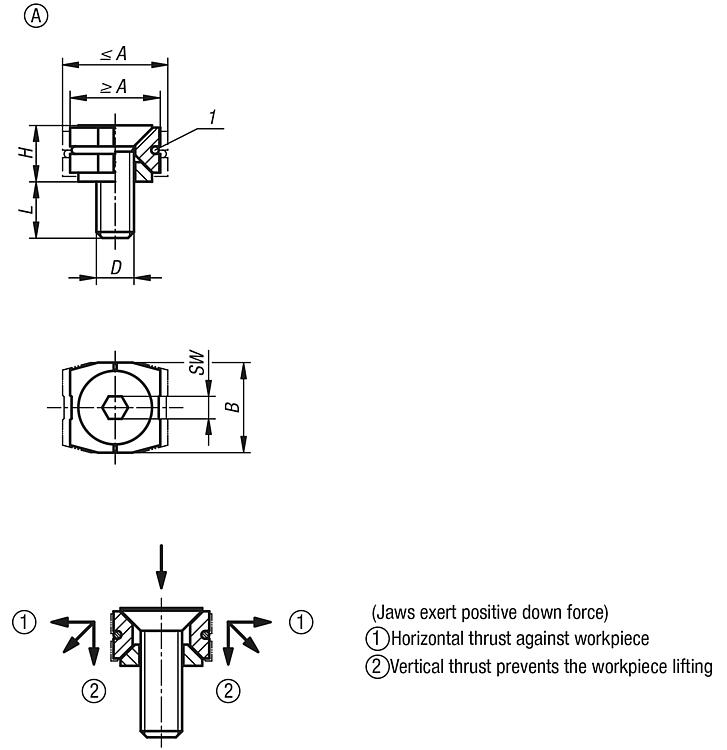

Wedge clamp with countersunk screw, Form A

More information

Drawings

Wedge clamp with countersunk screw, Form A

Item selection/filter

Order No.	Form	A min.	A max.	B	D	H	L	SW	Clamping force max. kN	Tightening torque max. Nm	CAD	Acc.	Price	Order
04567-11205	A	12	14	12	M5X15	7,5	9,5	3	2	4,3			on request
04567-11506	A	15	17	14,8	M6X16	8,7	9,3	4	3,5	7,3			on request
04567-11808	A	18,5	21,5	18,4	M8X20	11,8	11,3	5	5	18			on request

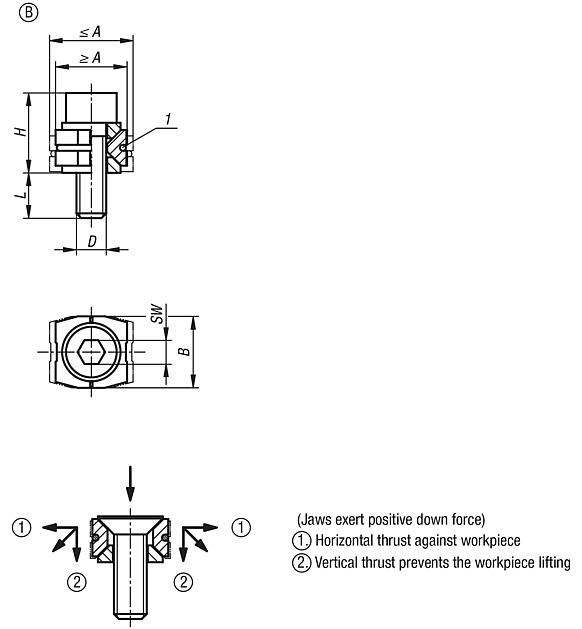

Wedge clamp with socket head screw, Form B

More information

Drawings

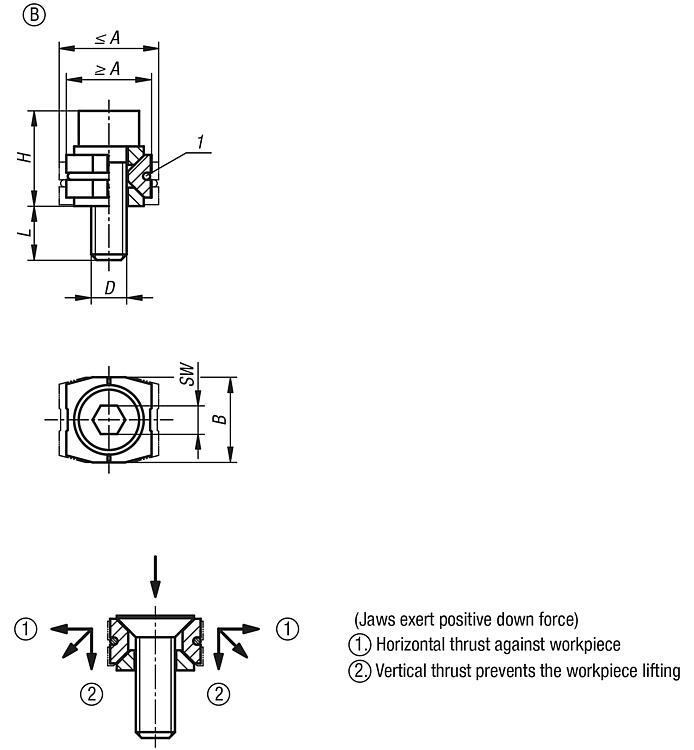

Wedge clamp with socket head screw, Form B

Item selection/filter

Order No.	Form	A min.	A max.	B	D	H	L	SW	Clamping force max. kN	Tightening torque max. Nm	CAD	Acc.	Price	Order
04567-21205	B	12	14	12	M5X16	13,4	9,6	4	3	5,4			on request
04567-21506	B	15	17	14,8	M6X18	15,8	10,2	5	4,5	9,1			on request
04567-21808	B	18,5	21,5	18,4	M8X25	21,2	14,9	6	9	22			on request
