        Flat clamp, steel for T-slot

Item description/product images

DescriptionMaterial:Steel body.

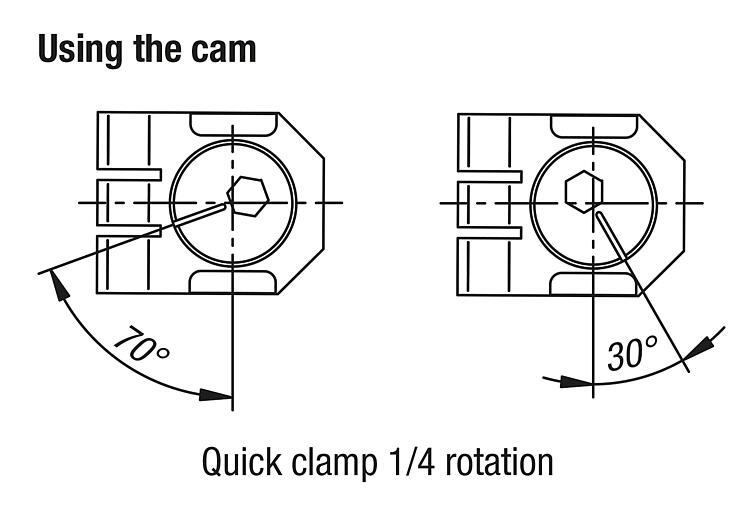

Clamping element and stop made from spring steel.Version:Base element tempered.Note for ordering:The order number includes one pair, made up of a clamping element and a stop.Note:By turning the cam screw on the clamping element the workpiece is forced downwards (positive down force). The clamping element also forces the workpiece against the stop, thereby providing a flat parallel seating.
The stop side provides a reference that makes precise replications possible.

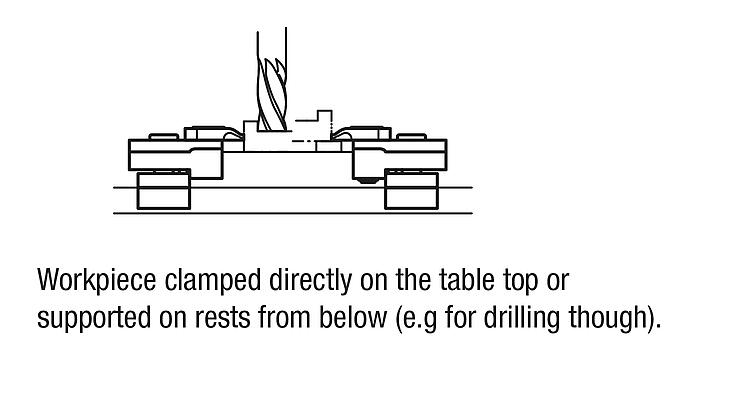

Cam hub: 1.2 mm.Application:Suitable for clamping multiple and individual parts on fixtures and T-slot tables.Drawing reference:

1) Cam screw
2) Clamping element
3) Stop
4) Body

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04571-10 Flat clamp, steel for T-slot

288 kB

Drawings

Item selection/filter

Order No.	B	B1	H	H1	H2	L	L1	L2	SW	Slot width	F kN	Tightening torque Nm	Price
04571-10-10	18	20	10,5	7,5	5	46	25	15	4	10	4	9	on request
04571-10-12	18	20	10,5	7,5	5	48	25	15	4	12	4	9	on request
04571-10-14	22	20	10,5	7,5	5	52	25	15	4	14	4	9	on request
04571-10-16	25	20	10,5	7,5	5	48	25	15	4	16	4	9	on request
04571-10-18	25	20	10,5	7,5	5	48	25	15	4	18	4	9	on request
