Side clamps

04575

Side clamps

Products
- Product overview
  - Flexible standard component system
    - Clamp straps Clamping devices
      - Clamping jaws Edge clamps Tension nuts and screws
        Side clamps

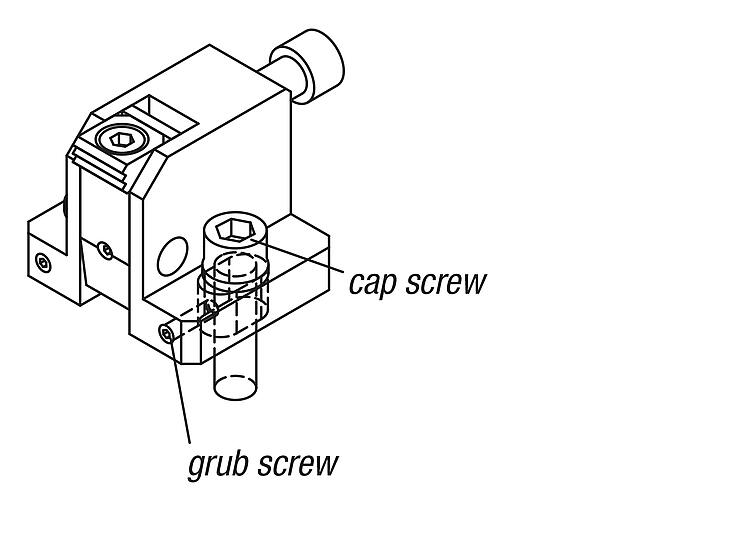

Item description/product images

DescriptionMaterial:Housing and arm carbon steel.
Jaw tool steel.Version:Housing, black oxidised.
Arm and jaw tempered and black oxidised.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04575 Side clamps

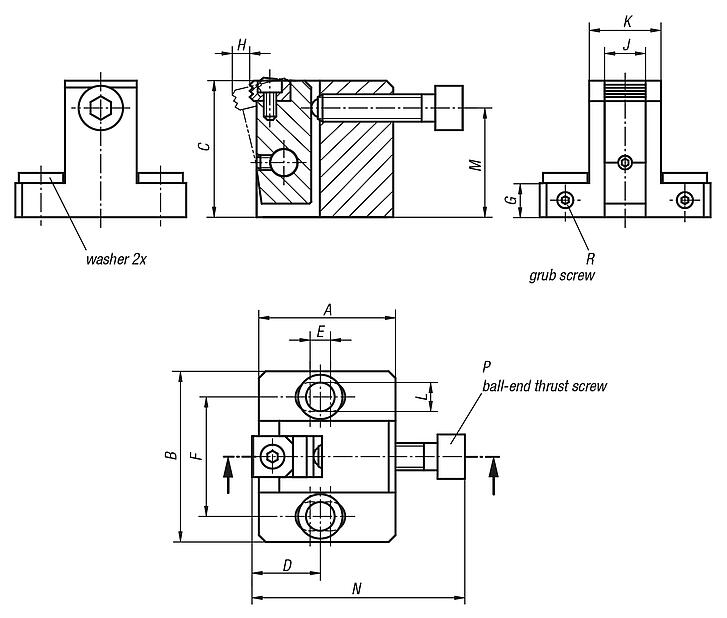

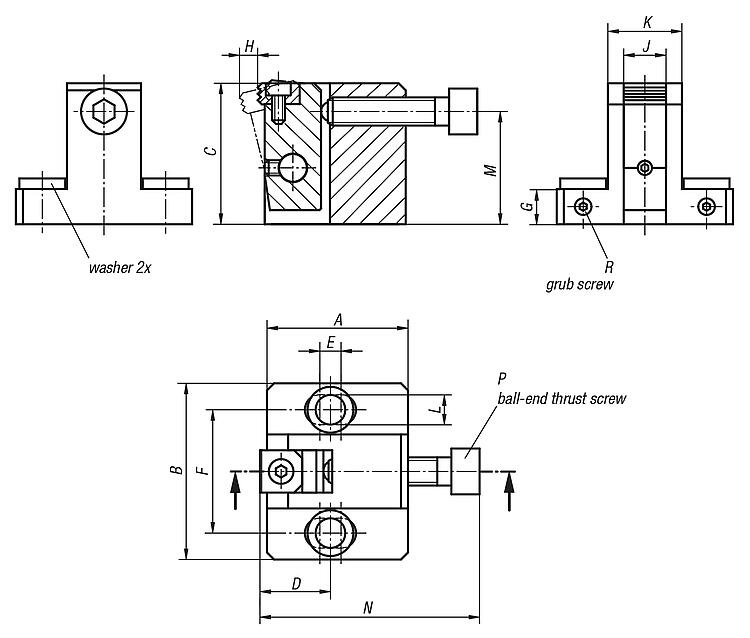

Drawings

Side clamps

Item selection/filter

Order No.	A	B	C	D	E	F	G	H	J	K	L	M	N	P	R	F=Retaining force N	Tightening torque Nm	CAD	Acc.	Price	Order
04575-080400	40	50	40	20	6	35	10	5,3	12	21	8,5	32	62,5	M8 x 35	M4x10	15000	25			on request
04575-100500	50	65	50	25	8	45	12	7,1	16	27	11	40	74	M10 x 40	M4x12	27000	50			on request
04575-120600	60	70	60	30	10	50	15	8	20	31	13	48	91	M12 x 50	M5x15	38000	90			on request
04575-160800	80	90	80	40	15	65	20	10,2	25	39	17	64	115	M16 x 60	M6x20	46000	130			on request
