04610Swivel hold-down clamps mini, with cam lever |
go back |
|
Item description/product images |
|
|

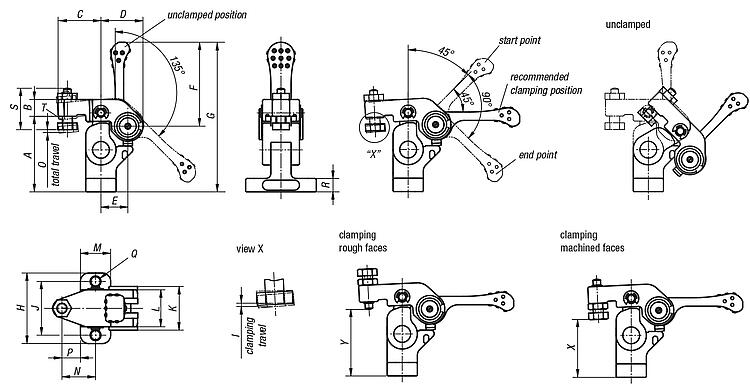

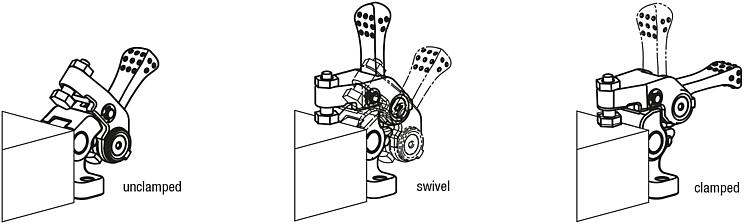

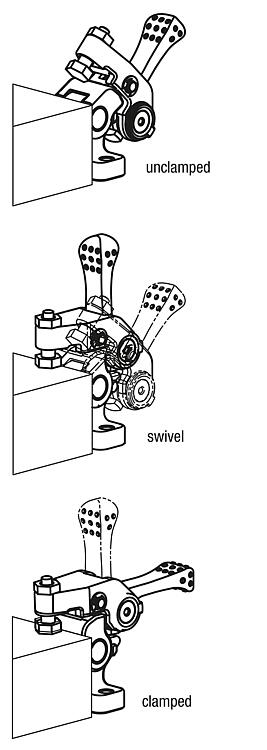

DescriptionMaterial:Carbon steel.Version:Tempered and black oxidised.Note:Swing clamps are used where the clamping points must be free when the workpiece is loaded or removed.
* Admissible hand force for the handle.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| A | B | C | D
| E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | X
min. | X
max. | Y
min. | Y
max. | F=Retaining
force N | Hand
force
FH N | CAD | Acc. | Price | Order |
|---|
| 04610-100 | 45 | 10 | 25,5 | 25 | 16 | 50 | 89 | 42 | 1 | 32 | 26 | 22 | 18 | 20 | 1,5 | 11 | 5,5 | 8 | 24 | M6 | 31,5 | 40,5 | 34,5 | 43,5 | 700 | 100* |  | | on request | | | 04610-150 | 55 | 12 | 32 | 31 | 20 | 63 | 109 | 52 | 1,2 | 40 | 32 | 28 | 22 | 25 | 1,8 | 14 | 6,6 | 10 | 30,5 | M8 | 36,4 | 48,6 | 41,4 | 53,6 | 1100 | 150* | | | on request | |
