        Down-thrust clamps

Item description/product images

DescriptionMaterial:Steel.Version:Case-hardened, black oxidised and ground.Note:The clamping heights can be increased with riser bars 04378 and for 04620-12 to 04620-14 and 04620-22 to 04620-24 reduced by self-aligning pads 02000.

Advantages:
- Rapid clamping by hand via threaded spindle and spiral cam.
- Quick and easy workpiece exchange by pivoting the clamp arm.
- Compact design, small clamping space required.
- Simple adaptation to tall clamping heights using the riser cylinders.

The clamps can be mounted in two ways:
1) in a T-slot.
2) by the M12 screw directly in a fixture base.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04620 Down-thrust clamps

219 kB

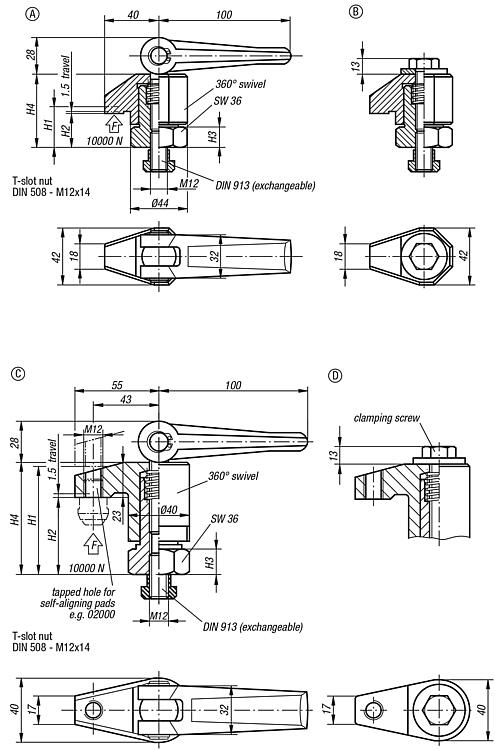

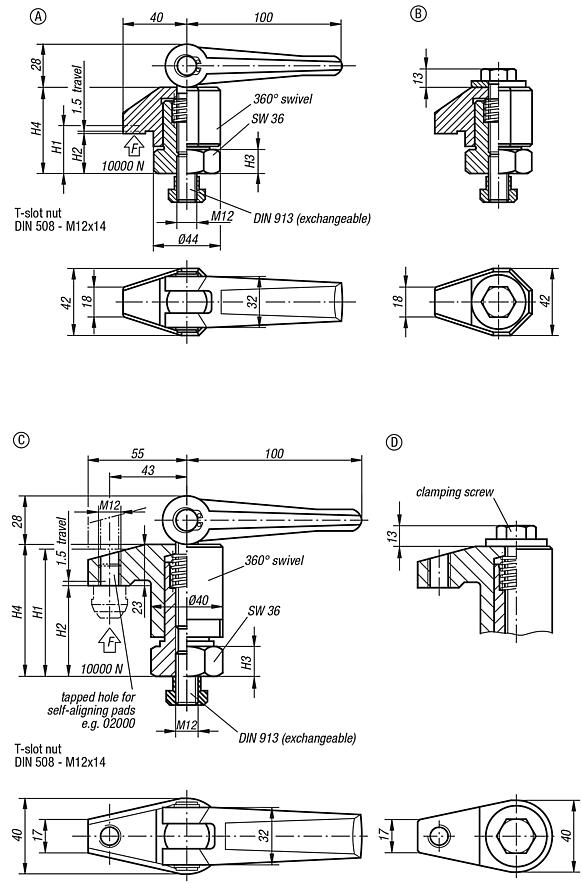

Drawings

Item selection/filter

Order No.	Form	Form definition	Clamping height max. H1	Clamping height min. H2	H3	H4	Price
04620-11	A	with cam lever	30	25	15	54-59	on request
04620-12	C	with cam lever and thread	70	50	15	73-93	on request
04620-13	C	with cam lever and thread	98	68	15	91-121	on request
04620-14	C	with cam lever and thread	135	95	22	118-158	on request
04620-21	B	with clamping screw	30	25	15	54-59	on request
04620-22	D	with clamping screw and thread	70	50	15	73-93	on request
04620-23	D	with clamping screw and thread	98	68	15	91-121	on request
04620-24	D	with clamping screw and thread	135	95	22	118-158	on request
