        Clamp nuts

Item description/product images

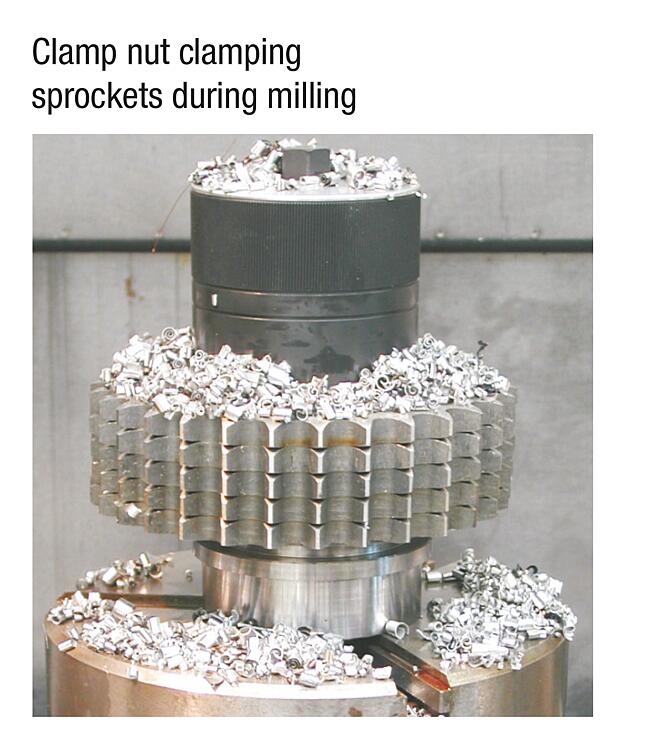

DescriptionMaterial:Housing carbon steel, cover aluminium.Version:CarbonitridedNote:The main feature of the mechanical clamp nut is an integrated planetary gear to simplify the manual clamping torque. After manually adjusting the clamp nut up to the workpiece the drive pinion of the planetary gear is engaged by turning the hexagonal spigot “SW1” to the right. The clamp nut is self-locking in every position. The clamp nut can be used for many clamping tasks throughout the machining field, especially for clamping parts in presses and punches.
Suitable bolts for t-slots see 07040.

The clamp nuts are supplied without t-slot bolts.Drawing reference:

1) ratchet
2) screws for T-slots up to M24, min. grade 10.9

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04750 Clamp nuts

288 kB

Drawings

Item selection/filter

Order No.	D	D1	D2	D3	H	H1	T min.	T max.	B	SW1	Clamping force max. kN	max. static load kN	Tightening torque max. Nm	Price
04750-6012	M12	32	60	62	50	10	16	24	14	13	60	70	20	on request
04750-6016	M16	32	60	62	50	10	16	24	18	13	60	120	25	on request
04750-6020	M20	32	60	62	50	10	16	24	22	13	60	120	30	on request
04750-10016	M16	42	71	73	70	10	25	35	18	15	100	130	35	on request
04750-10020	M20	42	71	73	70	10	25	35	22	15	100	200	40	on request
04750-10024	M24	42	71	73	70	10	25	35	28	15	100	200	45	on request
