        Rack plates

Item description/product images

DescriptionMaterial:Carbon steel.Version:Black oxidised.Note:Rack plates are used to position stepped and standard toe clamps.
The holes (G) for DIN 912 socket head screws is used to fasten the rack plate to suitable base elements. The tapped hole (F) is used to secure the toe clamps.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 04470-05 Rack plates

476 kB

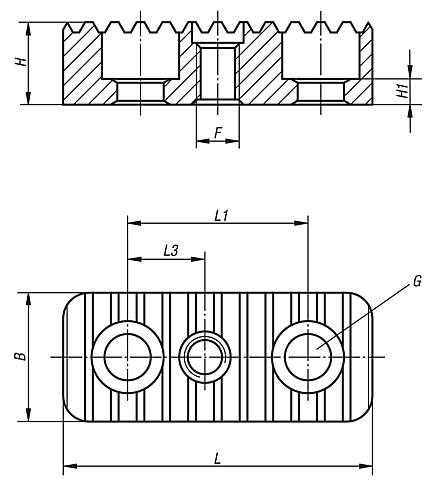

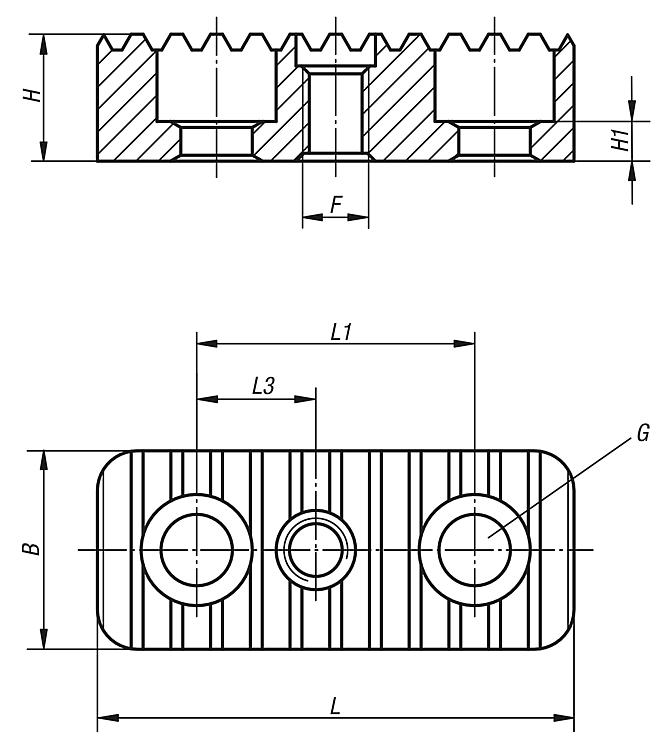

Drawings

Item selection/filter

Order No.	B	F	G hole for DIN 912 cap screw	H	H1	L	L1	L3	Price
04470-05-94008116	25	M8	M8	16	7	50	25	12,5	on request
04470-05-94008120	25	M8	M8	20	9	50	25	12,5	on request
04470-05-94008125	25	M8	M8	25	13	50	25	12,5	on request
04470-05-94008132	25	M8	M8	32	20	50	25	12,5	on request
04470-05-94008140	25	M8	M8	40	28	50	25	12,5	on request
04470-05-94012020	35	M12	M12	20	5	85	50	20	on request
04470-05-94012025	35	M12	M12	25	12	85	50	20	on request
04470-05-94012032	35	M12	M12	32	12	85	50	20	on request
04470-05-94012040	35	M12	M12	40	12	85	50	20	on request
04470-05-94012050	35	M12	M12	50	12	85	50	20	on request
04470-05-94016025	40	M16	M16	25	6	90	50	25	on request
04470-05-94016032	40	M16	M16	32	13	90	50	25	on request
04470-05-94016040	40	M16	M16	40	15	90	50	25	on request
04470-05-94016050	40	M16	M16	50	15	90	50	25	on request
04470-05-94016063	40	M16	M16	63	15	90	50	25	on request
