Adapter rings
 04486-05

Adapter rings

 go back

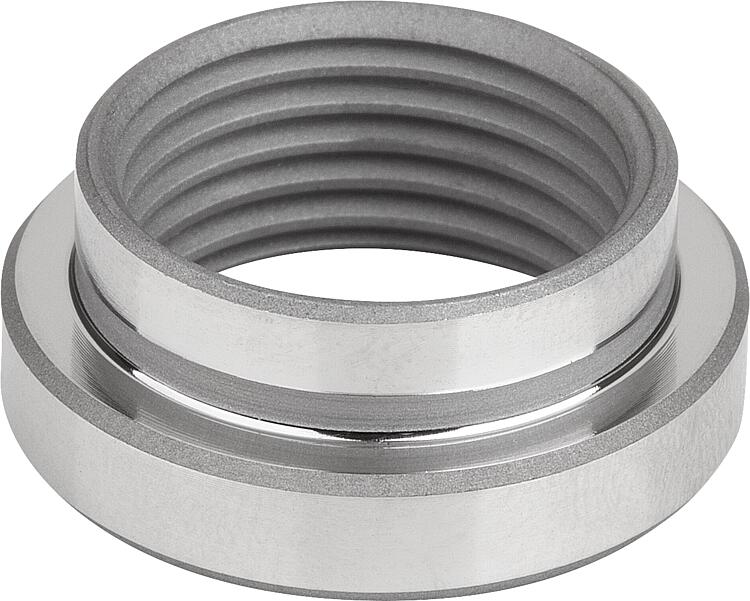

Item description/product images
DescriptionProduct description:Adapter rings can be used to reduce to different fitting diameters. This permits various clamping elements to be positioned on fixtures with grid holes.Material:Steel.Version:Hardened.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 04486-05 Adapter rings 222 kB

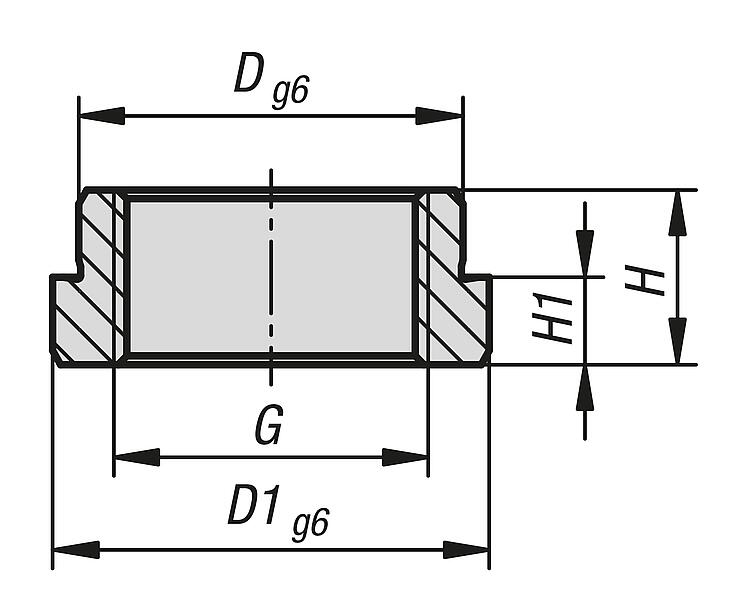

Drawings

Adapter rings

Item selection/filter
Order No.D

D1HH1GCADAcc.PriceOrder
04486-05-18251825105M14x1,5 on request
04486-05-20252025105M18x1,5 on request
04486-05-22252225105M18x1,5 on request
04486-05-24252425105M18x1,5 on request
04486-05-25252525100,8M18x1,5 on request
