05591Quarter-turn clamp locks stainless steel rotary knob plastic or... |
go back |
|
|
DescriptionMaterial:Housing stainless steel.
Pin steel or stainless steel.
Pin stainless steel.
Twist knob stainless steel or thermoplastic PA (polyamide)Version:Housing bright.
Pin nickel plated or bright.
Pin bright.
Twist knob fibreglass reinforced PA, black.
Twist knob stainless steel, bright.Note:M2 or M3 fastening screws are supplied.

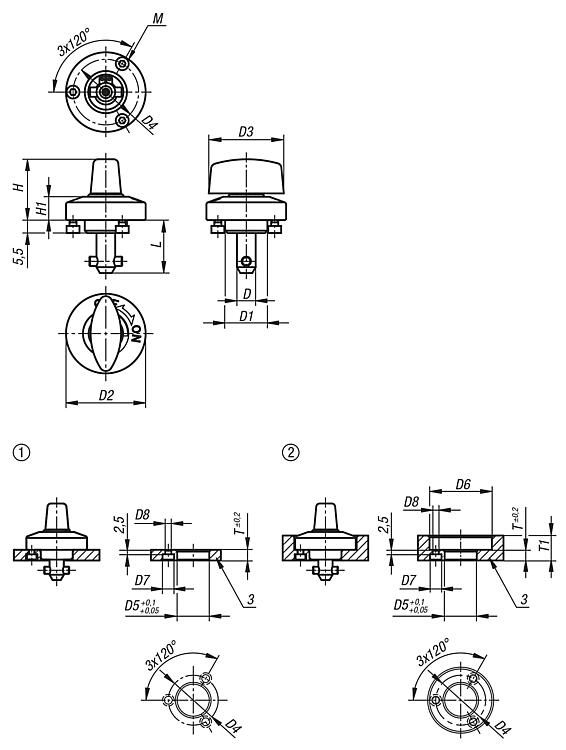

Mounting option 1 for plate thickness 6 or 12 mm.
Mounting option 2 for plate thickness 12 to 20 mm.

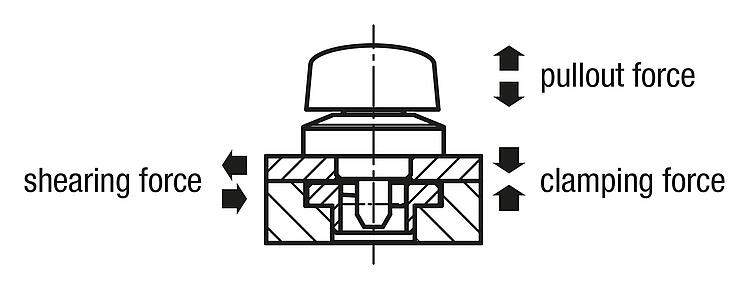

A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.
Accessory:Clamping plates 05592Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

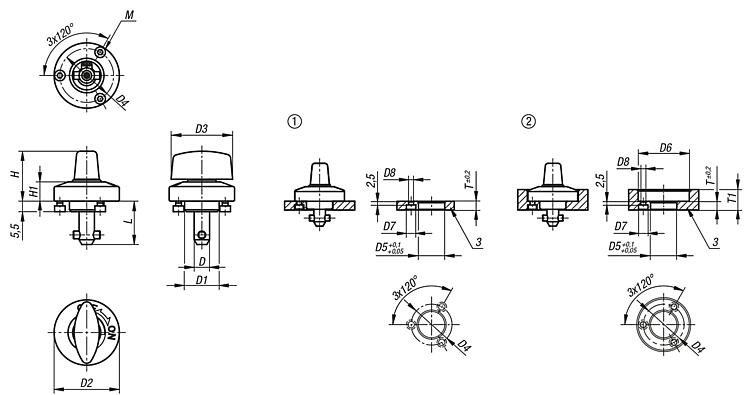

Drawings (total overview) |
| Order No. | Component
material | Version 2 | D | L | D1 | D2 | D3 | D4 | H | H1 | M | D5 | D6 | D7 | D8 | T | T1 | Clamping
force
N | Shearing force
kN | Pullout force F
kN | Temperature
resistance
| CAD | Acc. | Price | Order |
|---|
| 05591-516 | plastic | pins steel | 5 | 15,5 | 14 | 25 | 20 | 21 | 19 | 6,5 | M2x3 | 14 | 26 | 4,4 | 2,4 | 6 | 6-10 | 60 | 1,8 | 1,2 | ≤130 °C |  | | on request | | | 05591-817 | plastic | pins steel | 8 | 17 | 18 | 34 | 32 | 28 | 26 | 10 | M3x4 | 18 | 35 | 6,5 | 3,4 | 6 | 6-14 | 90 | 3,2 | 2,6 | ≤130 °C | | | on request | | | 05591-823 | plastic | pins steel | 8 | 23 | 18 | 34 | 32 | 28 | 26 | 10 | M3x4 | 18 | 35 | 6,5 | 3,4 | 12 | 12-20 | 90 | 3,2 | 2,6 | ≤130 °C | | | on request | |
|
Quarter-turn clamp locks stainless steel, rotary knob stainless steel
|
More information |
| Order No. | Component
material | Version 2 | D | L | D1 | D2 | D3 | D4 | H | H1 | M | D5 | D6 | D7 | D8 | T | T1 | Clamping
force
N | Shearing force
kN | Pullout force F
kN | Temperature
resistance
| CAD | Acc. | Price | Order |
|---|
| 05591-5161 | stainless steel | pins steel | 5 | 15,5 | 14 | 25 | 20 | 21 | 19 | 6,5 | M2x3 | 14 | 26 | 4,4 | 2,4 | 6 | 6-10 | 60 | 1,8 | 1,2 | ≤200 °C | | | on request | | | 05591-8171 | stainless steel | pins steel | 8 | 17 | 18 | 34 | 32 | 28 | 25,5 | 10 | M3x4 | 18 | 35 | 6,5 | 3,4 | 6 | 6-14 | 90 | 3,2 | 2,6 | ≤200 °C | | | on request | | | 05591-8231 | stainless steel | pins steel | 8 | 23 | 18 | 34 | 32 | 28 | 25,5 | 10 | M3x4 | 18 | 35 | 6,5 | 3,4 | 12 | 12-20 | 90 | 3,2 | 2,6 | ≤200 °C | | | on request | | | 05591-15161 | stainless steel | pin stainless steel | 5 | 15,5 | 14 | 25 | 20 | 21 | 19 | 6,5 | M2x3 | 14 | 26 | 4,4 | 2,4 | 6 | 6-10 | 60 | 1,8 | 1,2 | ≤200 °C | | | on request | | | 05591-18171 | stainless steel | pin stainless steel | 8 | 17 | 18 | 34 | 32 | 28 | 25,5 | 10 | M3x4 | 18 | 35 | 6,5 | 3,4 | 6 | 6-14 | 90 | 3,2 | 2,6 | ≤200 °C | | | on request | | | 05591-18231 | stainless steel | pin stainless steel | 8 | 23 | 18 | 34 | 32 | 28 | 25,5 | 10 | M3x4 | 18 | 35 | 6,5 | 3,4 | 12 | 12-20 | 90 | 3,2 | 2,6 | ≤200 °C | | | on request | |
|
