        Quarter-turn clamp lock with recessed grip

Item description/product images

DescriptionMaterial:

Housing and grip stainless steel 1.4310.
Pin stainless steel 1.4305.

Version:Bright.Note:Stainless steel M2,5 fastening screws are included.
Mounting option 1 for plate thickness 6 mm.
Mounting option 2 for plate thickness >6 mm.

A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.Type of operation:Ensure that the twist grip is in the "OFF" position.
Insert the quarter-turn clamp lock into the clamping plate and turn the grip to the ‘ON’ position.
When fully clamped, an audible click will be heard.Accessory:Stainless steel clamping plate 05592-05 for quarter-turn clamp lock with recessed grip.Drawing reference:

1) Mounting option 1
2) Mounting option 2
3) Plate
4) Suitable for M 2.5 countersunk head fastening screws

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 05592-03 Quarter-turn clamp lock with recessed grip

290 kB

Drawings

Item selection/filter

	28	13	39	25	32	39	28	16,5	8,5	2	M02,5	6	>6	3,5				Reset
Order No.	D	D1	D2	D3	D4	D5	D6	H	H1	H2	M	T	T1	T2	CAD	Acc.	Price	Order
05592-03-12813	28	13	39	25	32	39	28	16,5	8,5	2	M02,5	6	>6	3,5			on request

	2,5	30	1	30	≤180 °C				Reset

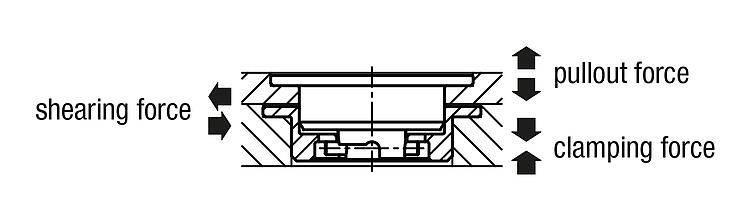

Order No.	Shearing force kN	Clamping force N	Pullout force F kN	Holding force N	Temperature resistance	CAD	Acc.	Price	Order
05592-03-12813	2,5	30	1	30	≤180 °C			on request
