05592-12Quarter-turn clamp locks, stainless steel, retractable, twist... |
go back |
|
Item description/product images |
|
|
DescriptionProduct description:Quarter-turn clamp locks are used for replacing and locking fixtures or hatches quickly and easily.
Tool-free clamping shortens setup times.Material:Stainless steel housing.
Bolt steel.
Rotary knob stainless steel or thermoplastic PA (polyamide)Version:Housing bright.
Bolt nickel plated.
Rotary knob PA fibreglass reinforced, black.
Rotary knob stainless steel, bright.Note:M2 or M3 stainless steel fastening screws are included.
Mounting option 1 for plate thickness 9 mm.
Mounting option 2 for plate thickness >9 to 20 mm.
Mounting option 3 for plate thickness 6 mm.
Mounting option 4 for plate thickness >6 mm to <9 mm.
A gap of more than 0.1 mm appears between the plates if the retaining force is exceeded.Type of operation:Ensure that the twist knob is in the "OFF" position.
Push or place the quarter-turn clamp lock over the pre-mounted clamping plate.
Press the twist knob down and turn it to the "ON" position.
When fully clamped, an audible click will be heard.Accessory:Steel clamping plate for quarter-turn clamp lock 05592-30.
Stainless steel spacer washer for quarter-turn clamp lock 05592-15.Drawing reference:1) Mounting option 1
2) Mounting option 2
3) Mounting option 3
4) Mounting option 4
5) Plate
6) Spacer washer DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Drawings (total overview) |
Quarter-turn clamp locks, stainless steel, retractable, twist knob plastic |
More information |
| Order No. | Version 2 | Component
material | L | L1 | H | H1 | H2 | D
| D1 | D2 | D3 | D4 | D5 | D6 | D7 | D8 | T | T1 | T2 | T3 | T4 | T5 | T6 | CAD | Acc. | Price | Order |
|---|
| 05592-12-2508 | pins steel | polyamide | 20 | 8,5 | 43,9 | 14,7 | 32,3 | 8 | 14 | 25 | 35 | 21 | 14 | 26 | 4,4 | 2,4 | 9 | 9-20 | 5,5 | 6 | 2,5 | 6-9 | 3 |  | | on request | | | 05592-12-3408 | pins steel | polyamide | 20 | 8,5 | 43,9 | 14,7 | 32,3 | 8 | 18 | 34 | 40 | 28 | 18 | 35 | 6,5 | 3,4 | 9 | 9-20 | 5,5 | 6 | 2,5 | 6-9 | 3 | | | on request | |

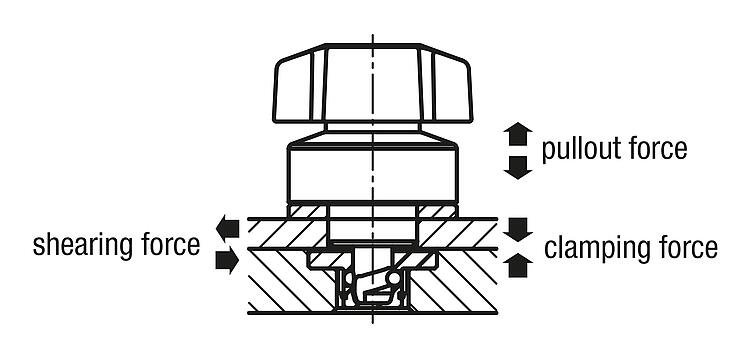

| Order No. | Version 2 | Component
material | M | Clamping
force
N | Shearing force
kN | Pullout force F
kN | Holding
force
N | Temperature
resistance
| CAD | Acc. | Price | Order |
|---|
| 05592-12-2508 | pins steel | polyamide | M2x3 | 250 | 3 | 1,6 | 250 | ≤130 °C | | | on request | | | 05592-12-3408 | pins steel | polyamide | M03X6 | 250 | 3 | 1,6 | 250 | ≤130 °C | | | on request | |
|
Quarter-turn clamp locks, stainless steel, retractable, twist knob stainless steel |
More information |
| Order No. | Version 2 | Component
material | L | L1 | H | H1 | H2 | D
| D1 | D2 | D3 | D4 | D5 | D6 | D7 | D8 | T | T1 | T2 | T3 | T4 | T5 | T6 | CAD | Acc. | Price | Order |
|---|
| 05592-12-25081 | pins steel | stainless steel A2 | 20 | 8,5 | 43,9 | 14,7 | 32,3 | 8 | 14 | 25 | 35 | 21 | 14 | 26 | 4,4 | 2,4 | 9 | 9-20 | 5,5 | 6 | 2,5 | 6-9 | 3 | | | on request | | | 05592-12-34081 | pins steel | stainless steel A2 | 20 | 8,5 | 43,9 | 14,7 | 32,3 | 8 | 18 | 34 | 40 | 28 | 18 | 35 | 6,5 | 3,4 | 9 | 9-20 | 5,5 | 6 | 2,5 | 6-9 | 3 | | | on request | |
| Order No. | Version 2 | Component
material | M | Clamping
force
N | Shearing force
kN | Pullout force F
kN | Holding
force
N | Temperature
resistance
| CAD | Acc. | Price | Order |
|---|
| 05592-12-25081 | pins steel | stainless steel A2 | M2x3 | 400 | 3 | 1,6 | 400 | ≤180 °C | | | on request | | | 05592-12-34081 | pins steel | stainless steel A2 | M03X6 | 400 | 3 | 1,6 | 400 | ≤180 °C | | | on request | |
|
