        Levers DIN 99

Item description/product images

Show/filter all items

DescriptionMaterial:Steel or stainless steel A2.Version:Steel polished.

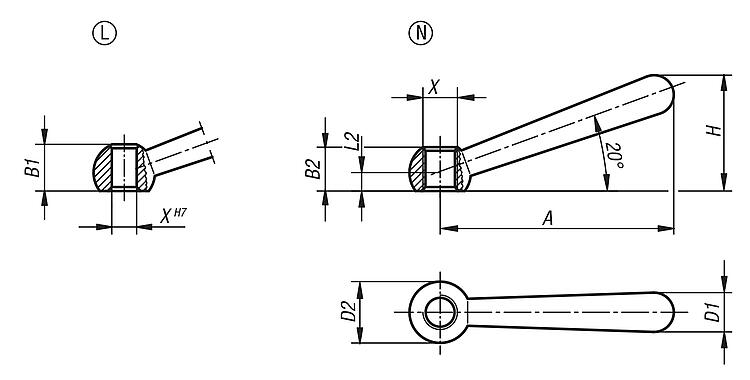

Stainless steel 1.4301 abrasive blasted.Note:To fix the lever to another element, gluing is often more cost-effective than pinning.Drawing reference:

Form L: with hole
Form N: with internal thread

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06330 LeversDIN 99

199 kB

Drawings (total overview)

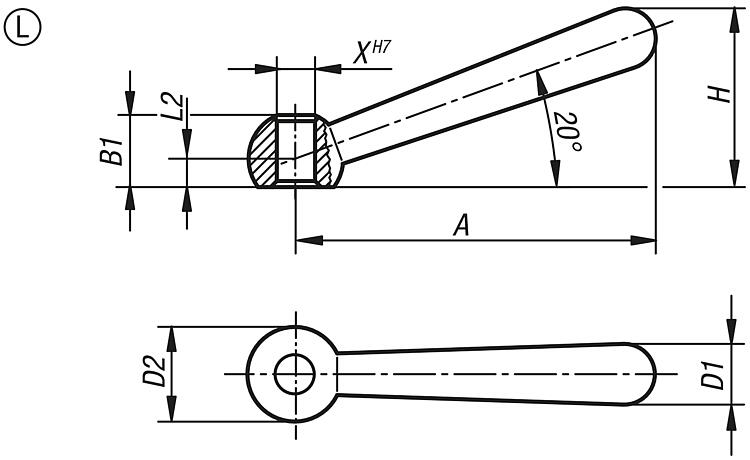

Levers DIN 99, Form L, with hole

More information

Drawings

Item selection/filter

Order No.	Form	Main material	X	A=Handle length	B1	D1	D2 ball	H	L2	Price
06330-106	L	steel	6	48	9,5	8	12	24	4	on request
06330-108	L	steel	8	60	12	10	16	30,5	5	on request
06330-110	L	steel	10	76	14,5	13	20	38	6	on request
06330-112	L	steel	12	95	18,5	16	25	47	7,5	on request
06330-116	L	steel	16	119	24	20	32	59,5	10	on request
06330-120	L	steel	20	152	30	25	40	75,5	12,5	on request
06330-0106	L	stainless steel A2	6	48	9,5	8	12	24	4	on request
06330-0108	L	stainless steel A2	8	60	12	10	16	30,5	5	on request
06330-0110	L	stainless steel A2	10	76	14,5	13	20	38	6	on request
06330-0112	L	stainless steel A2	12	95	18,5	16	25	47	7,5	on request
06330-0116	L	stainless steel A2	16	119	24	20	32	59,5	10	on request
06330-0120	L	stainless steel A2	20	152	30	25	40	75,5	12,5	on request

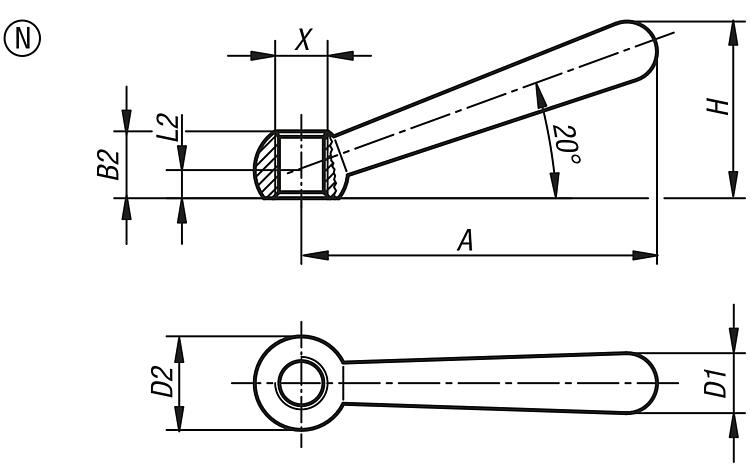

Levers DIN 99, Form N, with internal thread

More information

Drawings

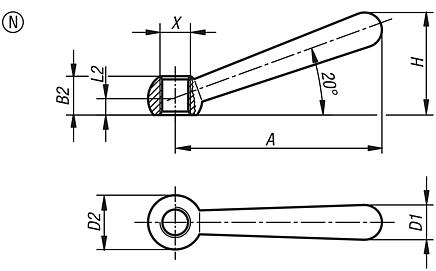

Levers DIN 99, Form N, with internal thread

Item selection/filter

Order No.	Form	Main material	X	A=Handle length	B2	D1	D2 ball	H	L2	Price
06330-206	N	steel	M6	48	9,5	8	12	24	4	on request
06330-208	N	steel	M8	60	12	10	16	30,5	5	on request
06330-210	N	steel	M10	76	14,5	13	20	38	6	on request
06330-212	N	steel	M12	95	18,5	16	25	47	7,5	on request
06330-216	N	steel	M16	119	24	20	32	59,5	10	on request
06330-220	N	steel	M20	152	30	25	40	75,5	12,5	on request
06330-0206	N	stainless steel A2	M6	48	9,5	8	12	24	4	on request
06330-0208	N	stainless steel A2	M8	60	12	10	16	30,5	5	on request
06330-0210	N	stainless steel A2	M10	76	14,5	13	20	38	6	on request
06330-0212	N	stainless steel A2	M12	95	18,5	16	25	47	7,5	on request
06330-0216	N	stainless steel A2	M16	119	24	20	32	59,5	10	on request
06330-0220	N	stainless steel A2	M20	152	30	25	40	75,5	12,5	on request
