        Tension levers internal thread, stainless steel

Item description/product images

Show/filter all items

DescriptionMaterial:

Steel parts stainless steel 1.4305.
Ball knob black plastic.

Version:Stainless steel parts bright.
Ball knob polished.On request:Other threads and special versions.

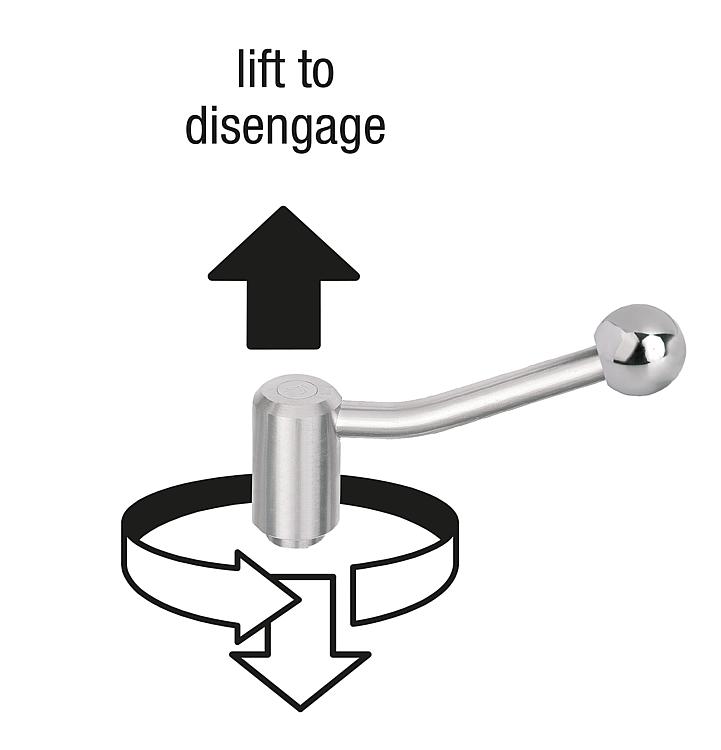

Dimensions “H1” and “A” available in other lengths at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06371 Tension leversinternal thread, stainless steel

214 kB

Drawings (total overview)

Tension levers in stainless steel with internal thread, 0 degrees

More information

Drawings

Tension levers in stainless steel with internal thread, 0 degrees

Item selection/filter

Order No.	Form	X	T	A=Handle length	D	D1	D2	D3	H	H1	H2	H4	No. of teeth	Price
06371-1082	0°	M8	14	92	16	24	25	10	44,5	4,5	37	49,5	22	on request
06371-1102	0°	M10	14	92	16	24	25	10	44,5	4,5	37	49,5	22	on request
06371-2102	0°	M10	17	111	19	28	32	12	51,5	5,5	42	57,5	24	on request
06371-2122	0°	M12	17	111	19	28	32	12	51,5	5,5	42	57,5	24	on request
06371-3122	0°	M12	23	134,5	23	33	32	13	58	6	47	65	26	on request
06371-3162	0°	M16	23	134,5	23	33	32	13	58	6	47	65	26	on request
06371-4162	0°	M16	27	134	30	41	32	13	68,5	7,5	56,5	76,5	36	on request
06371-4202	0°	M20	27	134	30	41	32	13	68,5	7,5	56,5	76,5	36	on request

Tension levers in stainless steel with internal thread, 20 degrees

More information

Drawings

Tension levers in stainless steel with internal thread, 20 degrees

Item selection/filter

Order No.	Form	X	T	A	A2	D	D1	D2	D3	H	H1	H2	H3	H4	No. of teeth	Price
06371-1081	20°	M8	14	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	on request
06371-1101	20°	M10	14	88	15	16	24	25	10	44,5	4,5	37	58,5	49,5	22	on request
06371-2101	20°	M10	17	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	24	on request
06371-2121	20°	M12	17	106	15	19	28	32	12	51,5	5,5	42	68,5	57,5	24	on request
06371-3121	20°	M12	23	128,5	15	23	33	32	13	58	6	47	81	65	26	on request
06371-3161	20°	M16	23	128,5	15	23	33	32	13	58	6	47	81	65	26	on request
06371-4161	20°	M16	27	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	on request
06371-4201	20°	M20	27	128,5	15	30	41	32	13	68,5	7,5	56,5	89,5	76,5	36	on request
