        Tension levers flat

Item description/product images

Show/filter all items

DescriptionMaterial:Steel parts grade 5.8.
Ball knob black thermoset PF 31Version:Black oxidised.Note:Flat tension levers can be used for simple clamping or control operations. Where applicable, there must be enough space available so that the grip can be rotated 360°.
The version with star socket is designed to allow a 45° change of position.On request:Other female threads, reamed holes and star sockets.
Dimension “A” available in other lengths at extra charge.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06342 Tension levers flat

163 kB

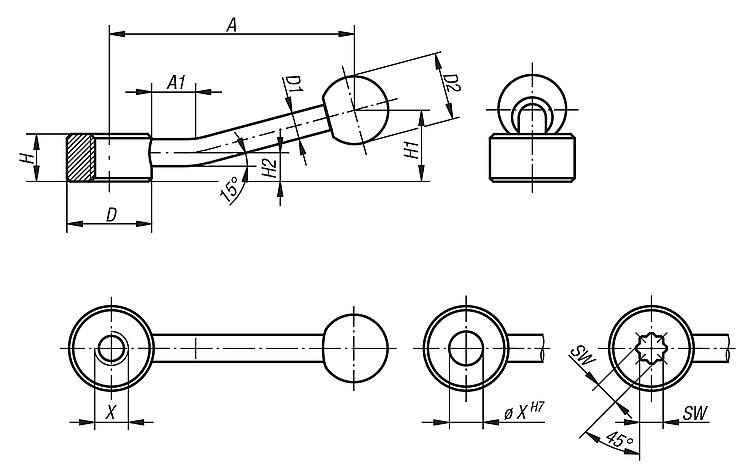

Drawings (total overview)

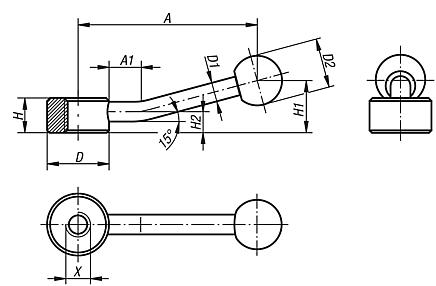

Tension levers flat with internal thread

More information

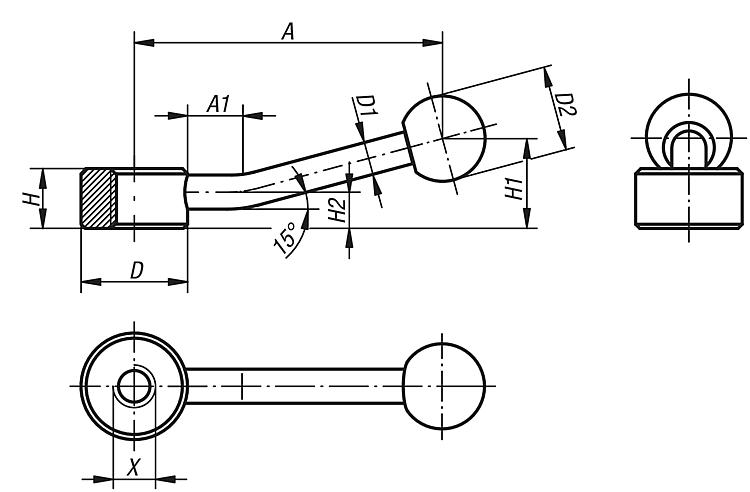

Drawings

Tension levers flat with internal thread

Item selection/filter

Order No.	Kind of fastening	X	A=Handle length	A1	D	D1	D2	H	H1	H2	Price
06342-206	internal thread	M6	75	15	25	8	20	14	22	8,5	on request
06342-208	internal thread	M8	75	15	25	8	20	14	22	8,5	on request
06342-210	internal thread	M10	75	15	25	8	20	14	22	8,5	on request
06342-212	internal thread	M12	100	15	33	10	25	17	27	10	on request
06342-216	internal thread	M16	100	15	33	10	25	17	27	10	on request
06342-220	internal thread	M20	128	15	41	12	30	20	36	11,5	on request
06342-224	internal thread	M24	128	15	41	12	30	20	36	11,5	on request

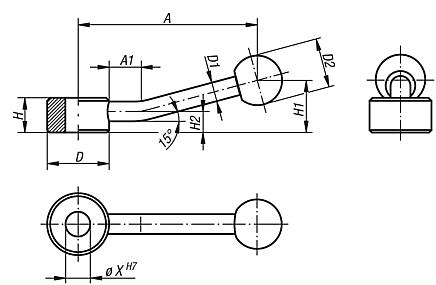

Tension levers flat with locating hole

More information

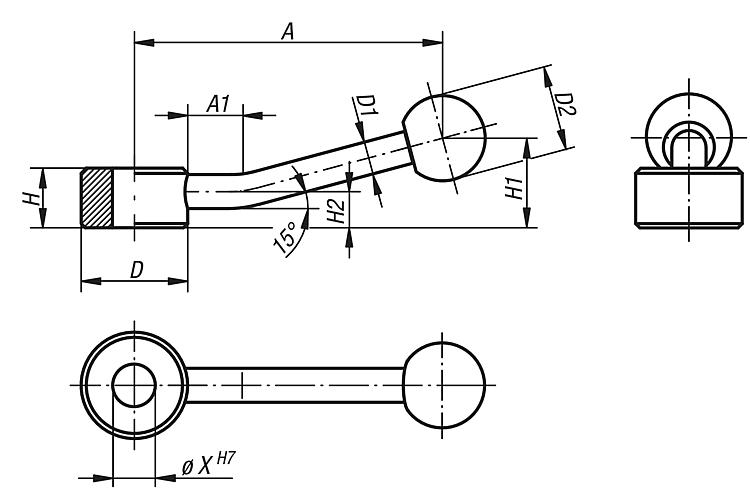

Drawings

Item selection/filter

Order No.	Kind of fastening	X	A=Handle length	A1	D	D1	D2	H	H1	H2	Price
06342-106	reamed hole	6	75	15	25	8	20	14	22	8,5	on request
06342-108	reamed hole	8	75	15	25	8	20	14	22	8,5	on request
06342-110	reamed hole	10	75	15	25	8	20	14	22	8,5	on request
06342-112	reamed hole	12	100	15	33	10	25	17	27	10	on request
06342-116	reamed hole	16	100	15	33	10	25	17	27	10	on request
06342-120	reamed hole	20	128	15	41	12	30	20	36	11,5	on request
06342-124	reamed hole	24	128	15	41	12	30	20	36	11,5	on request

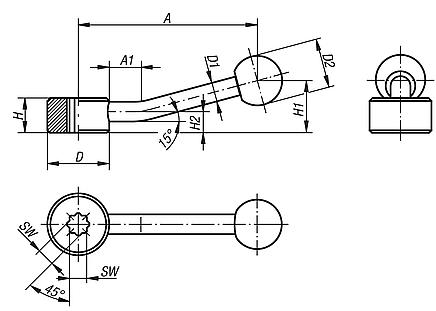

Tension levers flat with star socket

More information

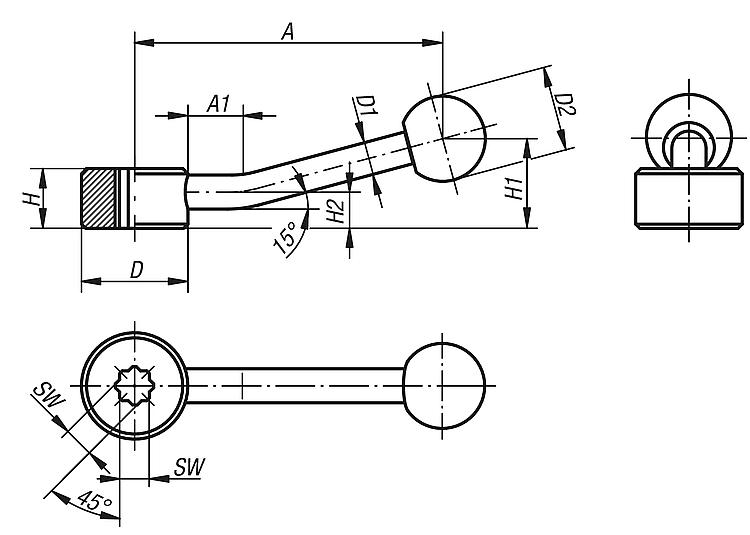

Drawings

Item selection/filter

Order No.	Kind of fastening	SW	A=Handle length	A1	D	D1	D2	H	H1	H2	Price
06342-305	star socket	5,5	75	15	25	8	20	14	22	8,5	on request
06342-307	star socket	7	75	15	25	8	20	14	22	8,5	on request
06342-309	star socket	9	100	15	33	10	25	17	27	10	on request
06342-311	star socket	11	100	15	33	10	25	17	27	10	on request
06342-314	star socket	14	128	15	41	12	30	20	36	11,5	on request
06342-319	star socket	19	128	15	41	12	30	20	36	11,5	on request
