Handwheels DIN 950, aluminium

 go back

Item description/product images

 Show/filter all items
DescriptionMaterial:Handwheel aluminium.
Fixed grip aluminium, centre pin black oxidised steel.
Revolving grip aluminium, centre pin trivalent blue passivated steel.Version:Wheel rim turned and polished.
On request:Hubs with square socket or powder-coated handwheels.
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06273 HandwheelsDIN 950, aluminium 321 kB

Drawings (total overview)

HandwheelsDIN 950, aluminium
HandwheelsDIN 950, aluminium

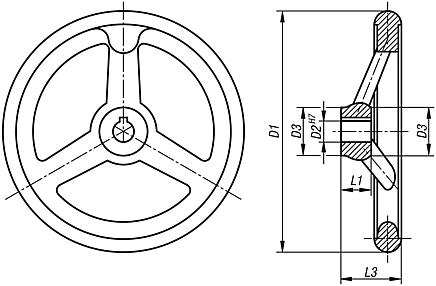

Handwheels DIN 950, aluminium, without grip

 More information

Drawings
Handwheels DIN 950, aluminium, without grip
Handwheels DIN 950, aluminium, without grip

Item selection/filter
Order No.Version 1D1D2D3≈L1L3B3
T
Number of
spokes		CADAcc.PriceOrder
06273-0080X10reamed hole8010H7241629--3 on request
06273-0080X12reamed hole8012H7241629--3 on request
06273-0100X10reamed hole10010H7261733--3 on request
06273-0100X12reamed hole10012H7261733--3 on request
06273-0125X12reamed hole12512H7281836--3 on request
06273-0125X14reamed hole12514H7281836--3 on request
06273-0140X14reamed hole14014H7301939--3 on request
06273-0140X16reamed hole14016H7301939--3 on request
06273-0160X14reamed hole16014H7322040--3 on request
06273-0160X16reamed hole16016H7322040--3 on request
06273-0180X16reamed hole18016H7372243--3 on request
06273-0180X18reamed hole18018H7372243--3 on request
06273-0200X18reamed hole20018H7382445--3 on request
06273-0200X22reamed hole20022H7382445--3 on request
06273-0250X22reamed hole25022H7452850--5 on request
06273-0250X26reamed hole25026H7452850--5 on request
06273-0315X26reamed hole31526H7533356--5 on request
06273-0315X30reamed hole31530H7533356--5 on request
06273-0400X30reamed hole40030H7653863--5 on request
06273-0400X34reamed hole40034H7653863--5 on request
06273-0500X34reamed hole50034H7784572--5 on request
06273-0500X40reamed hole50040H7784572--5 on request
06273-1080X10reamed hole with slot8010H7241629311,43 on request
06273-1080X12reamed hole with slot8012H7241629413,83 on request
06273-1100X10reamed hole with slot10010H7261733311,43 on request
06273-1100X12reamed hole with slot10012H7261733413,83 on request
06273-1125X12reamed hole with slot12512H7281836413,83 on request
06273-1125X14reamed hole with slot12514H7281836516,33 on request
06273-1140X14reamed hole with slot14014H7301939516,33 on request
06273-1140X16reamed hole with slot14016H7301939518,33 on request
06273-1160X14reamed hole with slot16014H7322040516,33 on request
06273-1160X16reamed hole with slot16016H7322040518,33 on request
06273-1180X16reamed hole with slot18016H7372243518,33 on request
06273-1180X18reamed hole with slot18018H7372243620,83 on request
06273-1200X18reamed hole with slot20018H7382445620,83 on request
06273-1200X22reamed hole with slot20022H7382445624,83 on request
06273-1250X22reamed hole with slot25022H7452850624,85 on request
06273-1250X26reamed hole with slot25026H7452850829,35 on request
06273-1315X26reamed hole with slot31526H7533356829,35 on request
06273-1315X30reamed hole with slot31530H7533356833,35 on request
06273-1400X30reamed hole with slot40030H7653863833,35 on request
06273-1400X34reamed hole with slot40034H76538631037,35 on request
06273-1500X34reamed hole with slot50034H77845721037,35 on request
06273-1500X40reamed hole with slot50040H77845721243,35 on request

Handwheels DIN 950, aluminium, with fixed grip

 More information

Drawings
Handwheels DIN 950, aluminium, with fixed grip
Handwheels DIN 950, aluminium, with fixed grip

Item selection/filter
Order No.Version 1D1D2D3≈L1L3B3
T
Number of
spokes		fixed machine handle
DIN 39 Form E		CADAcc.PriceOrder
06273-2080X10reamed hole8010H7241629--3ø16 x M6 x 50 on request
06273-2080X12reamed hole8012H7241629--3ø16 x M6 x 50 on request
06273-2100X10reamed hole10010H7261733--3ø16 x M6 x 50 on request
06273-2100X12reamed hole10012H7261733--3ø16 x M6 x 50 on request
06273-2125X12reamed hole12512H7281836--3ø20 x M8 x 64 on request
06273-2125X14reamed hole12514H7281836--3ø20 x M8 x 64 on request
06273-2140X14reamed hole14014H7301939--3ø20 x M8 x 64 on request
06273-2140X16reamed hole14016H7301939--3ø20 x M8 x 64 on request
06273-2160X14reamed hole16014H7322040--3ø25 x M10 x 80 on request
06273-2160X16reamed hole16016H7322040--3ø25 x M10 x 80 on request
06273-2180X16reamed hole18016H7372243--3ø25 x M10 x 80 on request
06273-2180X18reamed hole18018H7372243--3ø25 x M10 x 80 on request
06273-2200X18reamed hole20018H7382445--3ø25 x M10 x 80 on request
06273-2200X22reamed hole20022H7382445--3ø25 x M10 x 80 on request
06273-2250X22reamed hole25022H7452850--5ø32 x M12 x 100 on request
06273-2250X26reamed hole25026H7452850--5ø32 x M12 x 100 on request
06273-2315X26reamed hole31526H7533356--5ø32 x M12 x 100 on request
06273-2315X30reamed hole31530H7533356--5ø32 x M12 x 100 on request
06273-2400X30reamed hole40030H7653863--5ø36 x M16 x 112 on request
06273-2400X34reamed hole40034H7653863--5ø36 x M16 x 112 on request
06273-2500X34reamed hole50034H7784572--5ø36 x M16 x 112 on request
06273-2500X40reamed hole50040H7784572--5ø36 x M16 x 112 on request
06273-3080X10reamed hole with slot8010H7241629311,43ø16 x M6 x 50 on request
06273-3080X12reamed hole with slot8012H7241629413,83ø16 x M6 x 50 on request
06273-3100X10reamed hole with slot10010H7261733311,43ø16 x M6 x 50 on request
06273-3100X12reamed hole with slot10012H7261733413,83ø16 x M6 x 50 on request
06273-3125X12reamed hole with slot12512H7281836413,83ø20 x M8 x 64 on request
06273-3125X14reamed hole with slot12514H7281836516,33ø20 x M8 x 64 on request
06273-3140X14reamed hole with slot14014H7301939516,33ø20 x M8 x 64 on request
06273-3140X16reamed hole with slot14016H7301939518,33ø20 x M8 x 64 on request
06273-3160X14reamed hole with slot16014H7322040516,33ø25 x M10 x 80 on request
06273-3160X16reamed hole with slot16016H7322040518,33ø25 x M10 x 80 on request
06273-3180X16reamed hole with slot18016H7372243518,33ø25 x M10 x 80 on request
06273-3180X18reamed hole with slot18018H7372243620,83ø25 x M10 x 80 on request
06273-3200X18reamed hole with slot20018H7382445620,83ø25 x M10 x 80 on request
06273-3200X22reamed hole with slot20022H7382445624,83ø25 x M10 x 80 on request
06273-3250X22reamed hole with slot25022H7452850624,85ø32 x M12 x 100 on request
06273-3250X26reamed hole with slot25026H7452850829,35ø32 x M12 x 100 on request
06273-3315X26reamed hole with slot31526H7533356829,35ø32 x M12 x 100 on request
06273-3315X30reamed hole with slot31530H7533356833,35ø32 x M12 x 100 on request
06273-3400X30reamed hole with slot40030H7653863833,35ø36 x M16 x 112 on request
06273-3400X34reamed hole with slot40034H76538631037,35ø36 x M16 x 112 on request
06273-3500X34reamed hole with slot50034H77845721037,35ø36 x M16 x 112 on request
06273-3500X40reamed hole with slot50040H77845721243,35ø36 x M16 x 112 on request

Handwheels DIN 950, aluminium, with revolving grip

 More information

Drawings
Handwheels DIN 950, aluminium, with revolving grip
Handwheels DIN 950, aluminium, with revolving grip

Item selection/filter
Order No.Version 1D1D2D3≈L1L3B3
T
Number of
spokes		revolving grip
DIN 98 Form E		CADAcc.PriceOrder
06273-4080X10reamed hole8010H7241629--3ø16 x M6 x 54.5 on request
06273-4080X12reamed hole8012H7241629--3ø16 x M6 x 54.5 on request
06273-4100X10reamed hole10010H7261733--3ø16 x M6 x 54.5 on request
06273-4100X12reamed hole10012H7261733--3ø16 x M6 x 54.5 on request
06273-4125X12reamed hole12512H7281836--3ø20 x M8 x 67 on request
06273-4125X14reamed hole12514H7281836--3ø20 x M8 x 67 on request
06273-4140X14reamed hole14014H7301939--3ø20 x M8 x 67 on request
06273-4140X16reamed hole14016H7301939--3ø20 x M8 x 67 on request
06273-4160X14reamed hole16014H7322040--3ø25 x M10 x 83 on request
06273-4160X16reamed hole16016H7322040--3ø25 x M10 x 83 on request
06273-4180X16reamed hole18016H7372243--3ø25 x M10 x 83 on request
06273-4180X18reamed hole18018H7372243--3ø25 x M10 x 83 on request
06273-4200X18reamed hole20018H7382445--3ø25 x M10 x 83 on request
06273-4200X22reamed hole20022H7382445--3ø25 x M10 x 83 on request
06273-4250X22reamed hole25022H7452850--5ø32 x M12 x 105,5 on request
06273-4250X26reamed hole25026H7452850--5ø32 x M12 x 105,5 on request
06273-4315X26reamed hole31526H7533356--5ø32 x M12 x 105,5 on request
06273-4315X30reamed hole31530H7533356--5ø32 x M12 x 105,5 on request
06273-4400X30reamed hole40030H7653863--5ø36 x M16 x 117 on request
06273-4400X34reamed hole40034H7653863--5ø36 x M16 x 117 on request
06273-4500X34reamed hole50034H7784572--5ø36 x M16 x 117 on request
06273-4500X40reamed hole50040H7784572--5ø36 x M16 x 117 on request
06273-5080X10reamed hole with slot8010H7241629311,43ø16 x M6 x 54.5 on request
06273-5080X12reamed hole with slot8012H7241629413,83ø16 x M6 x 54.5 on request
06273-5100X10reamed hole with slot10010H7261733311,43ø16 x M6 x 54.5 on request
06273-5100X12reamed hole with slot10012H7261733413,83ø16 x M6 x 54.5 on request
06273-5125X12reamed hole with slot12512H7281836413,83ø20 x M8 x 67 on request
06273-5125X14reamed hole with slot12514H7281836516,33ø20 x M8 x 67 on request
06273-5140X14reamed hole with slot14014H7301939516,33ø20 x M8 x 67 on request
06273-5140X16reamed hole with slot14016H7301939518,33ø20 x M8 x 67 on request
06273-5160X14reamed hole with slot16014H7322040516,33ø25 x M10 x 83 on request
06273-5160X16reamed hole with slot16016H7322040518,33ø25 x M10 x 83 on request
06273-5180X16reamed hole with slot18016H7372243518,33ø25 x M10 x 83 on request
06273-5180X18reamed hole with slot18018H7372243620,83ø25 x M10 x 83 on request
06273-5200X18reamed hole with slot20018H7382445620,83ø25 x M10 x 83 on request
06273-5200X22reamed hole with slot20022H7382445624,83ø25 x M10 x 83 on request
06273-5250X22reamed hole with slot25022H7452850624,85ø32 x M12 x 105,5 on request
06273-5250X26reamed hole with slot25026H7452850829,35ø32 x M12 x 105,5 on request
06273-5315X26reamed hole with slot31526H7533356829,35ø32 x M12 x 105,5 on request
06273-5315X30reamed hole with slot31530H7533356833,35ø32 x M12 x 105,5 on request
06273-5400X30reamed hole with slot40030H7653863833,35ø36 x M16 x 117 on request
06273-5400X34reamed hole with slot40034H76538631037,35ø36 x M16 x 117 on request
06273-5500X34reamed hole with slot50034H77845721037,35ø36 x M16 x 117 on request
06273-5500X40reamed hole with slot50040H77845721243,35ø36 x M16 x 117 on request
