Taper grips

06320

Taper grips

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Handwheels, crank handles and screw-in grips
        Taper grips

Item description/product images

Show/filter all items

DescriptionMaterial:Thermoset PF 31, black.
Bush and stud electro zinc-plated steel.
Form E has copper-plated steel or brass bushes.Version:High-gloss polished.Note:The versions 06320-205 and 06320-206 have a brass bush.
The versions 06320-208 and 06320-2081 have copper-plated steel bushes.On request:Other colours.Drawing reference:

Form C: moulded internal thread
Form E: tapped bush
Form F: external thread

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06320 Taper grips

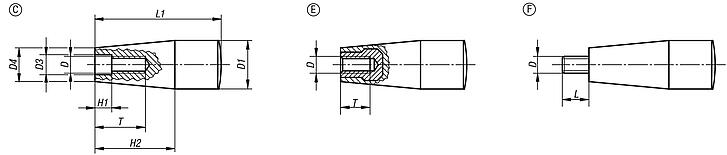

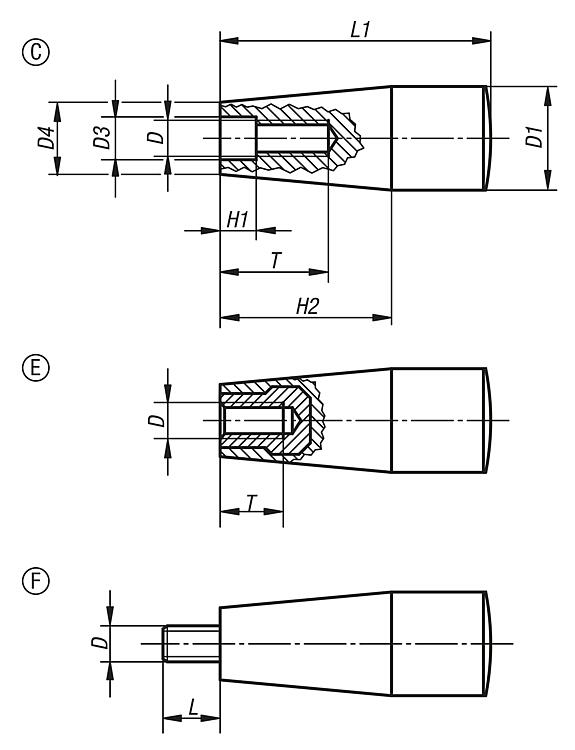

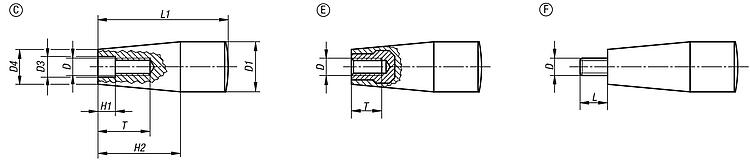

Drawings (total overview)

Taper grips

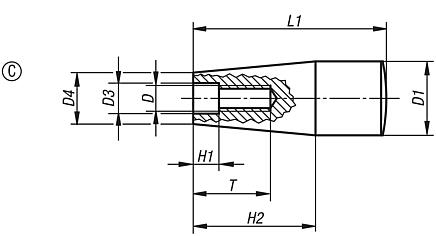

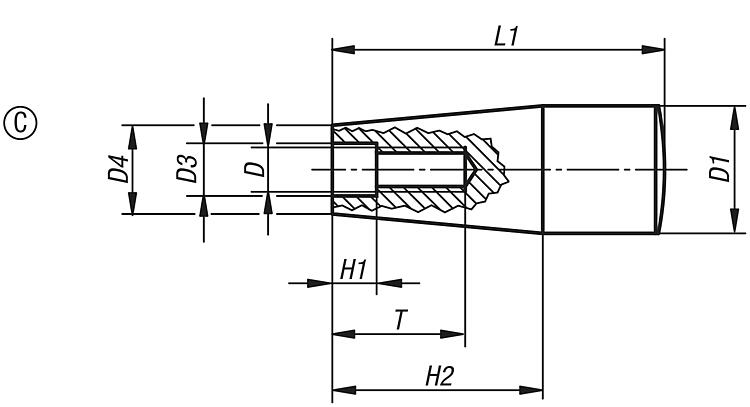

Taper grip with moulded thread, Form C

More information

Drawings

Taper grip with moulded thread, Form C

Item selection/filter

Order No.	Form	D	D1	D3	D4	H1	H2	L1	T	CAD	Acc.	Price	Order
06320-106	C	M6	17	6,2	15	2	26	45	14			on request
06320-108	C	M8	17	8,2	13	2	26	45	16			on request
06320-1081	C	M8	23	8,5	18	2	38	61	24			on request
06320-110	C	M10	29	10,5	21	3,5	42	71	28			on request

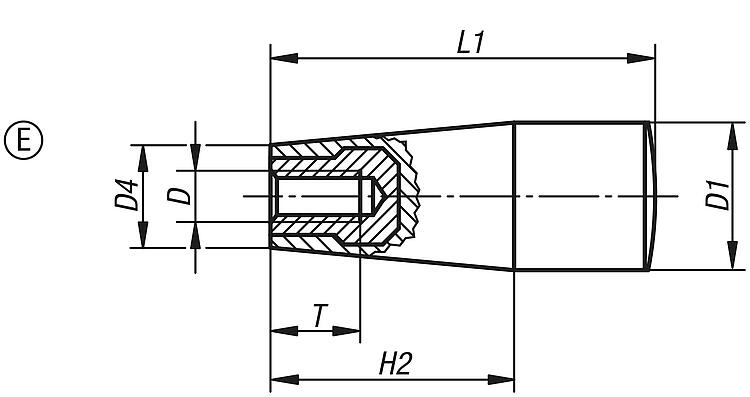

Taper grips with tapped bush, Form E

More information

Drawings

Taper grips with tapped bush, Form E

Item selection/filter

Order No.	Form	D	D1	D4	H2	L1	T	CAD	Acc.	Price	Order
06320-205	E	M5	17	15	26	45	10			on request
06320-206	E	M6	17	15	26	45	9			on request
06320-208	E	M8	23	18	38	61	14			on request
06320-2081	E	M8	28	21	42	71	14			on request

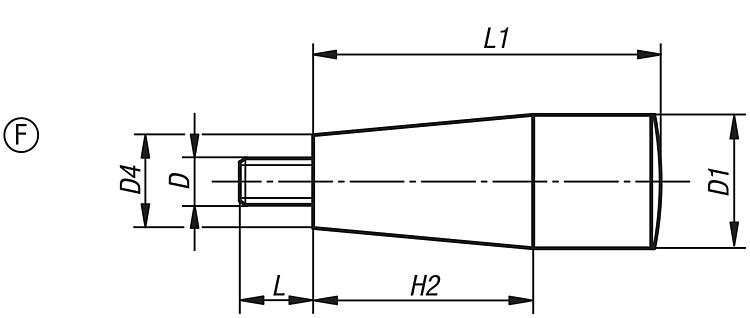

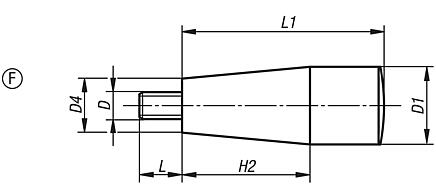

Taper grips with external thread, Form F

More information

Drawings

Taper grips with external thread, Form F

Item selection/filter

Order No.	Form	D	D1	D4	H2	L	L1	CAD	Acc.	Price	Order
06320-306	F	M6	17	15	26	18	45			on request
06320-308	F	M8	23	18	38	12	61			on request
06320-310	F	M10	29	21	42	20	71			on request
