Handwheels

06830

Handwheels

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Handwheels, crank handles and screw-in grips
        Handwheels

Item description/product images

Show/filter all items

DescriptionMaterial:Handwheel thermoset PF 31.
Bush steel, black oxidised.Version:High-gloss polished, black.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06830 Handwheels

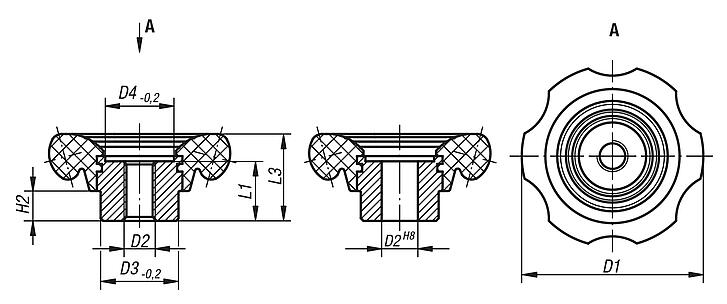

Drawings (total overview)

Handwheels

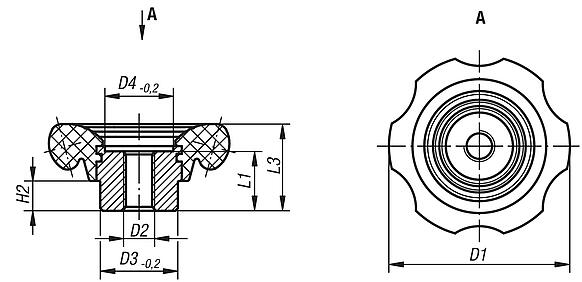

Handwheels with internal thread

More information

Drawings

Handwheels with internal thread

Item selection/filter

Order No.	Version 1	D1	D2	D3	D4	H2	L1	L3	CAD	Acc.	Price	Order
06830-70110	internal thread	70	M10	30	26,5	11,5	23	33,5			on request
06830-70112	internal thread	70	M12	30	26,5	11,5	23	33,5			on request
06830-83112	internal thread	83	M12	35	31,5	14	28	40			on request
06830-83116	internal thread	83	M16	35	31,5	14	28	40			on request

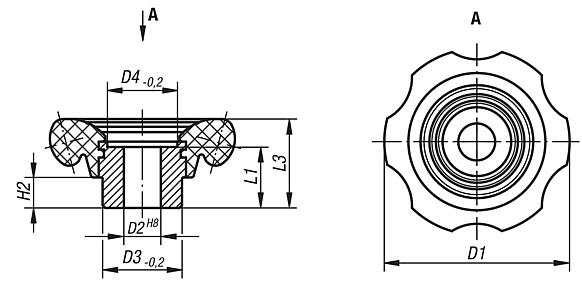

Handwheels with thru hole

More information

Drawings

Handwheels with thru hole

Item selection/filter

Order No.	Version 1	D1	D2	D3	D4	H2	L1	L3	CAD	Acc.	Price	Order
06830-70212	reamed hole	70	12H8	30	26,5	11,5	23	33,5			on request
06830-70214	reamed hole	70	14H8	30	26,5	11,5	23	33,5			on request
06830-83214	reamed hole	83	14H8	35	31,5	14	28	40			on request
06830-83216	reamed hole	83	16H8	35	31,5	14	28	40			on request
