06914

Pull handles, stainless steel, slanted both sides

go back

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Pull handles, tubular handles and recessed handles
        Pull handles, stainless steel, slanted both sides

Item description/product images

Show/filter all items

DescriptionMaterial:

Investment cast 1.4308 stainless steel.
Fasteners 1.4301 stainless steel.

Version:Abrasive cleaned and matt gloss electropolished.Assembly:Form A from the front.
Form B from the rear.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06914 Pull handles, stainless steel, slanted both sides

156 kB

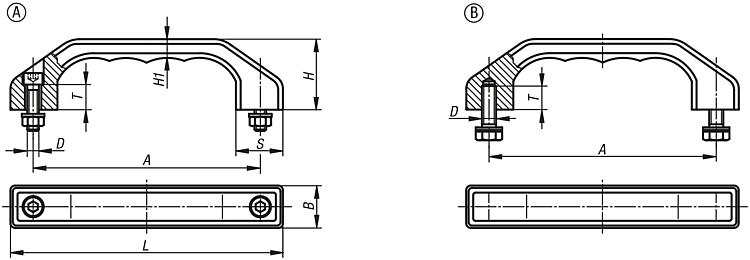

Drawings (total overview)

Pull handles, stainless steel, slanted both sides, mounting from front or rear

More information

Drawings

Pull handles, stainless steel, slanted both sides, mounting from front or rear

Item selection/filter

Order No.	Form	A	B	D	H	H1	L	S	T	Load capacity N	CAD	Acc.	Price	Order
06914-140081	A	140	25	M8x30	45	12	170	28	15	1000			on request
06914-180101	A	180	32	M10x40	58	15	218	36	18	1000			on request

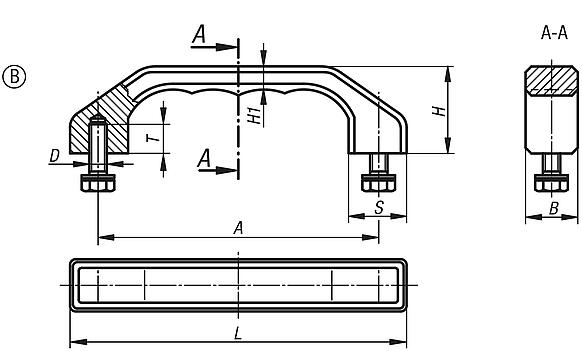

Pull handles, stainless steel, slanted both sides, mounting from the rear

More information

Drawings

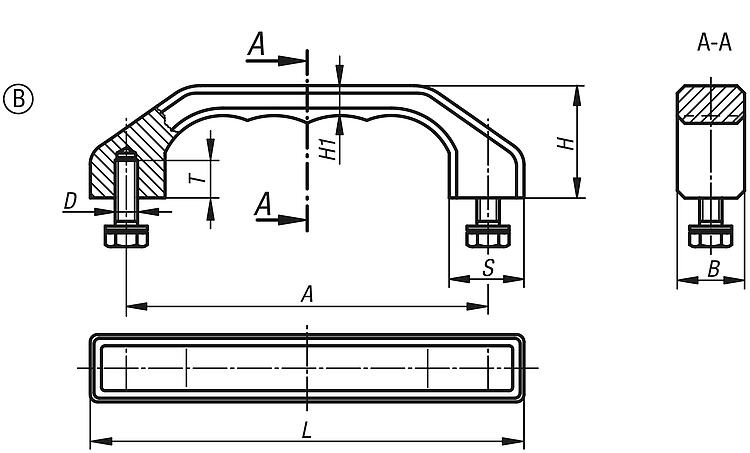

Pull handles, stainless steel, slanted both sides, mounting from the rear

Item selection/filter

Order No.	Form	A	B	D	H	H1	L	S	T	Load capacity N	CAD	Acc.	Price	Order
06914-140082	B	140	25	M8x18	45	12	170	28	15	1000			on request
06914-180102	B	180	32	M10x20	58	15	218	36	18	1000			on request
