Tubular handles, aluminium with powder coated grip legs

06925

Tubular handles, aluminium with powder coated grip legs

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Pull handles, tubular handles and recessed handles
        Tubular handles, aluminium with powder coated grip legs

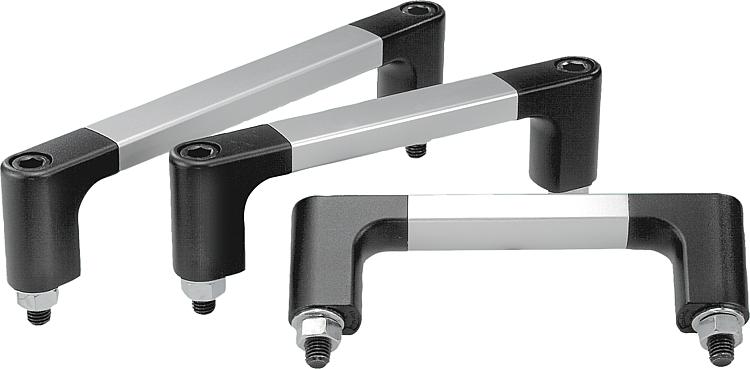

Item description/product images

DescriptionMaterial:Aluminium.Version:Leg black powder-coated.
Grip natural colour anodised.Note:Black electro zinc-plated M12x70 cap screws, suitable washers and nuts for fastening are supplied.Assembly:From the front.Special features:

RoHS

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06925 Tubular handles, aluminium with powder coated grip legs

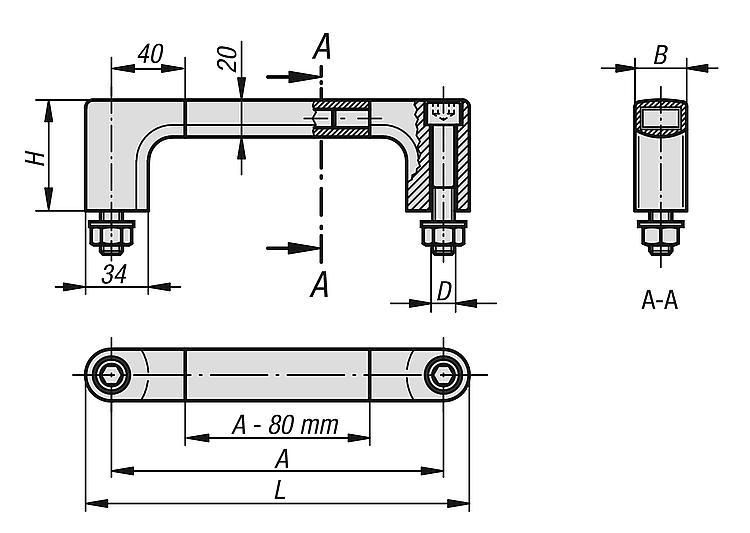

Drawings

Tubular handles, aluminium with powder coated grip legs

Item selection/filter

Order No.	A	B	D	H	L	Load capacity N	CAD	Acc.	Price	Order
06925-180	180	28	M12	60	208	1000			on request
06925-200	200	28	M12	60	228	1000			on request
06925-250	250	28	M12	60	278	1000			on request
06925-300	300	28	M12	60	328	1000			on request
06925-350	350	28	M12	60	378	1000			on request
06925-400	400	28	M12	60	428	1000			on request
06925-500	500	28	M12	60	528	1000			on request
06925-600	600	28	M12	60	628	1000			on request
