06929

Pull handles, aluminium, narrow

go back

Products
- Product overview
  - Flexible standard component system
    - Operating parts
      - Pull handles, tubular handles and recessed handles
        Pull handles, aluminium, narrow

Item description/product images

Show/filter all items

DescriptionMaterial:Profile aluminium EN AW-6060Version:Matt-finished, anodised black or natural tone.Assembly:From the rear.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06929 Pull handles, aluminium, narrow

115 kB

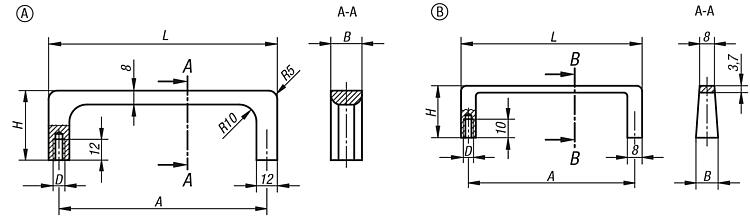

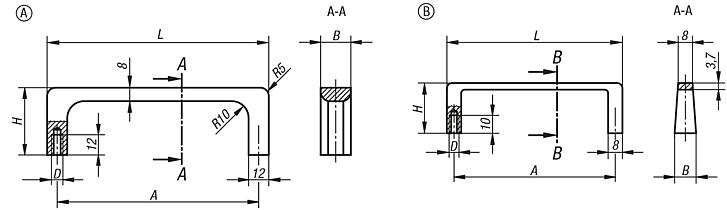

Drawings (total overview)

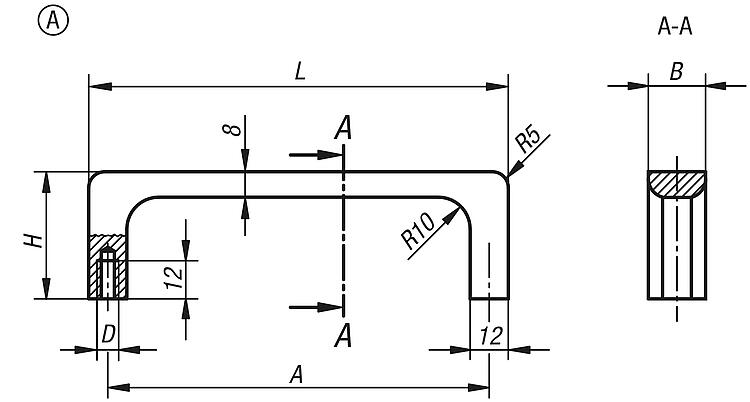

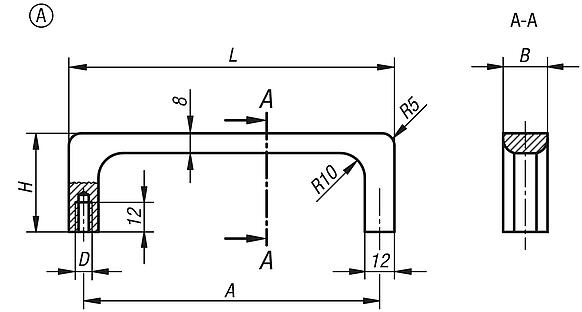

Pull handles, aluminium, narrow with unchanged width

More information

Drawings

Pull handles, aluminium, narrow with unchanged width

Item selection/filter

Order No.	Form	Main colour	A	B	D	H	L	Load capacity N	CAD	Acc.	Price	Order
06929-12001	A	black	120	18	M6	40	132	500			on request
06929-12003	A	natural	120	18	M6	40	132	500			on request

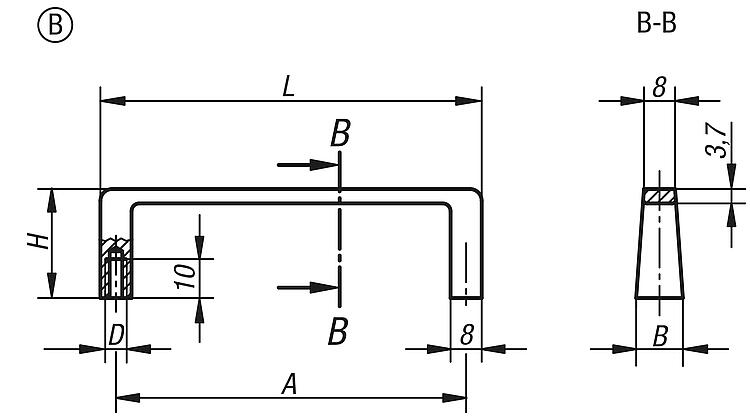

Pull handles, aluminium, narrow with modified width

More information

Drawings

Pull handles, aluminium, narrow with modified width

Item selection/filter

Order No.	Form	Main colour	A	B	D	H	L	Load capacity N	CAD	Acc.	Price	Order
06929-09001	B	black	90	12	M5	28	98	300			on request
06929-09003	B	natural	90	12	M5	28	98	300			on request
