        Pull handles, aluminium with plastic grip legs, mounted from front

Item description/product images

Show/filter all items

DescriptionMaterial:Grip aluminium.
Legs glass-bead reinforced polyamide.Version:Grip matt-finished and natural tone or black anodised.
Legs fine structure semi-matt, black.Assembly:From the front.Drawing reference:

1) Toothed locknut

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06932 Pull handles, aluminium with plastic grip legs

159 kB

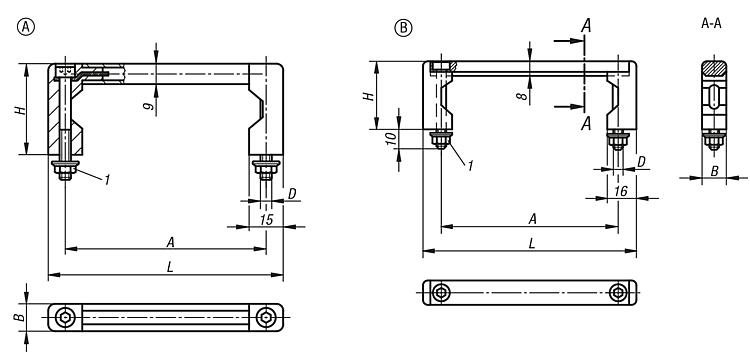

Drawings (total overview)

Pull handles, aluminium with plastic grip legs and ribbed grip, mounted from the front

More information

Drawings

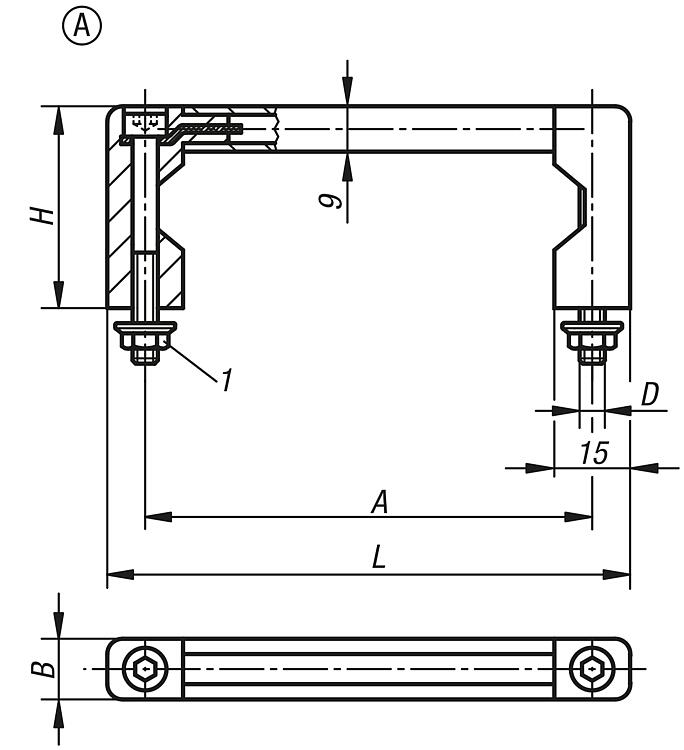

Pull handles, aluminium with plastic grip legs and ribbed grip, mounted from the front

Item selection/filter

	A	black natural	55 88 100 120 180 235	12	M5	40	70 103 115 135 195 250	1000				Reset
Order No.	Form	Main colour	A	B	D	H	L	Load capacity N	CAD	Acc.	Price	Order
06932-05501	A	black	55	12	M5	40	70	1000			on request
06932-08801	A	black	88	12	M5	40	103	1000			on request
06932-10001	A	black	100	12	M5	40	115	1000			on request
06932-12001	A	black	120	12	M5	40	135	1000			on request
06932-18001	A	black	180	12	M5	40	195	1000			on request
06932-23501	A	black	235	12	M5	40	250	1000			on request
06932-05503	A	natural	55	12	M5	40	70	1000			on request
06932-08803	A	natural	88	12	M5	40	103	1000			on request
06932-10003	A	natural	100	12	M5	40	115	1000			on request
06932-12003	A	natural	120	12	M5	40	135	1000			on request
06932-18003	A	natural	180	12	M5	40	195	1000			on request
06932-23503	A	natural	235	12	M5	40	250	1000			on request

Pull handles, aluminium with plastic grip legs and smooth grip, mounted from the front

More information

Drawings

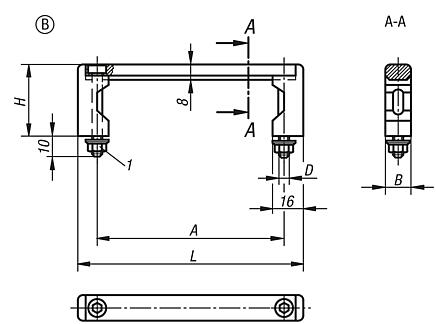

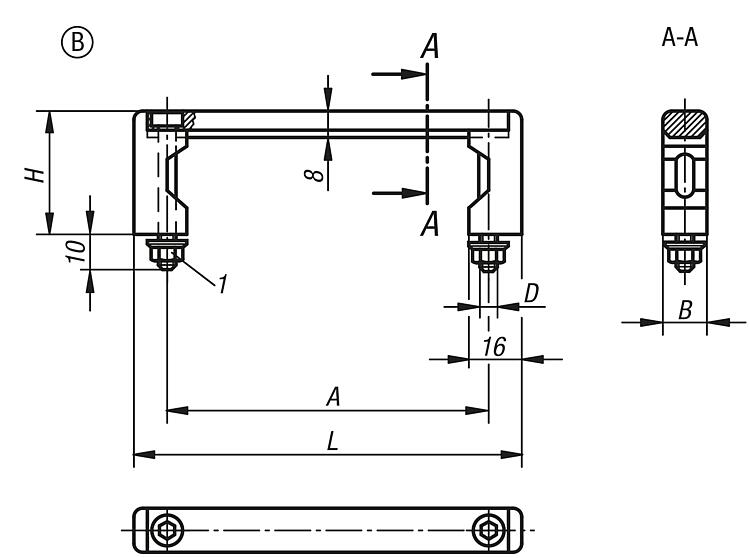

Pull handles, aluminium with plastic grip legs and smooth grip, mounted from the front

Item selection/filter

	B	black natural	55 88 100 120 180 235	12	M5	40	75 108 120 140 200 255	1000				Reset
Order No.	Form	Main colour	A	B	D	H	L	Load capacity N	CAD	Acc.	Price	Order
06932-055101	B	black	55	12	M5	40	75	1000			on request
06932-088101	B	black	88	12	M5	40	108	1000			on request
06932-100101	B	black	100	12	M5	40	120	1000			on request
06932-120101	B	black	120	12	M5	40	140	1000			on request
06932-180101	B	black	180	12	M5	40	200	1000			on request
06932-235101	B	black	235	12	M5	40	255	1000			on request
06932-055103	B	natural	55	12	M5	40	75	1000			on request
06932-088103	B	natural	88	12	M5	40	108	1000			on request
06932-100103	B	natural	100	12	M5	40	120	1000			on request
06932-120103	B	natural	120	12	M5	40	140	1000			on request
06932-180103	B	natural	180	12	M5	40	200	1000			on request
06932-235103	B	natural	235	12	M5	40	255	1000			on request
