        Tubular handles, aluminium with plastic grip legs

Item description/product images

Show/filter all items

DescriptionMaterial:Grip aluminium EN AW-6060.
Legs glass-bead reinforced polyamide.Version:Grip natural colour anodised or with black serrated plastic cover.Note:The legs have 2 or 4 PVC profile pins in the hole for the grip tube. When pushing the tube in these are trimmed off and produce a precise seating.
Black electro zinc-plated fastening screws, suitable washers and nuts are supplied.Assembly:From the front.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06939 Tubular handles, aluminium with plastic grip legs

148 kB

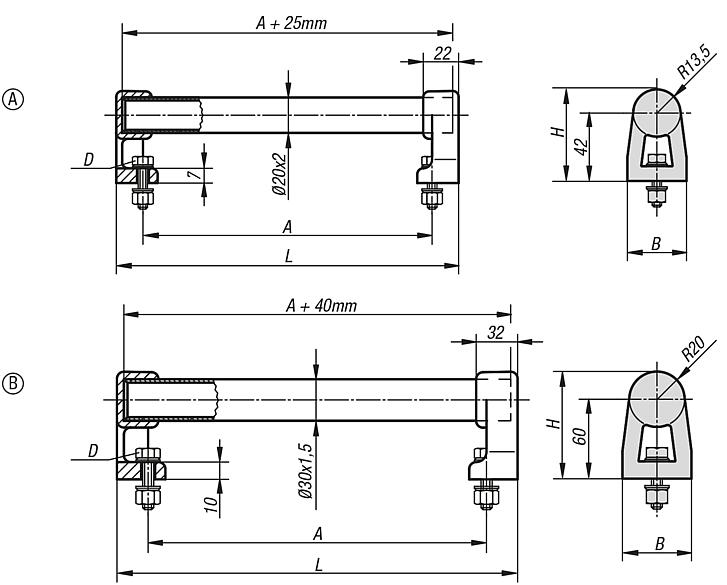

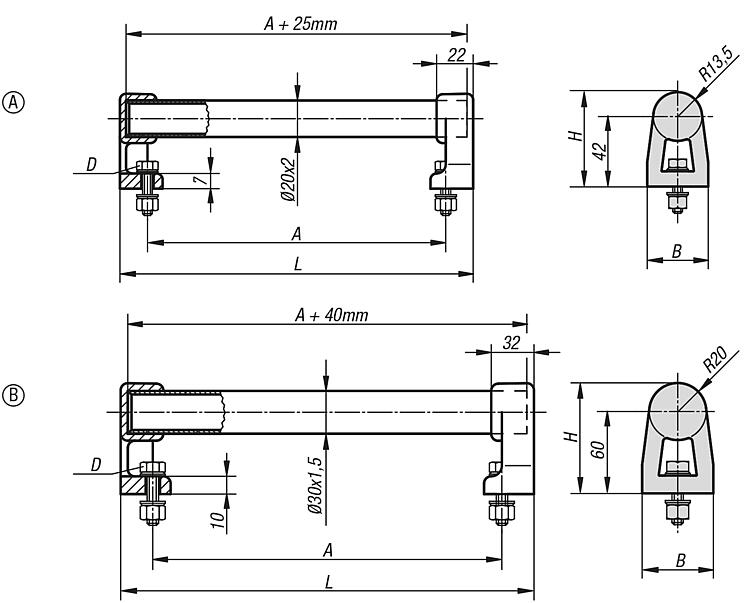

Drawings (total overview)

Tubular handles, aluminium with plastic grip legs, Form A

More information

Drawings

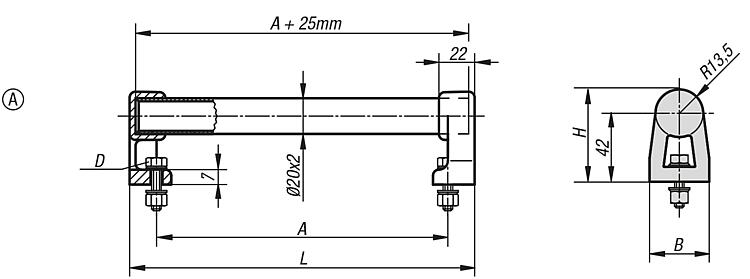

Tubular handles, aluminium with plastic grip legs, Form A

Item selection/filter

Order No.	Main colour	Form	A	B	D	H	L	Load capacity N	Price
06939-150203	natural	A	150	32	M5x20	55,5	184	1000	on request
06939-200203	natural	A	200	32	M5x20	55,5	234	1000	on request
06939-300203	natural	A	300	32	M5x20	55,5	334	1000	on request
06939-400203	natural	A	400	32	M5x20	55,5	434	1000	on request
06939-500203	natural	A	500	32	M5x20	55,5	534	1000	on request
06939-150202	black	A	150	32	M5x20	55,5	184	1000	on request
06939-200202	black	A	200	32	M5x20	55,5	234	1000	on request
06939-300202	black	A	300	32	M5x20	55,5	334	1000	on request
06939-400202	black	A	400	32	M5x20	55,5	434	1000	on request
06939-500202	black	A	500	32	M5x20	55,5	534	1000	on request

Tubular handles, aluminium with plastic grip legs, Form B

More information

Drawings

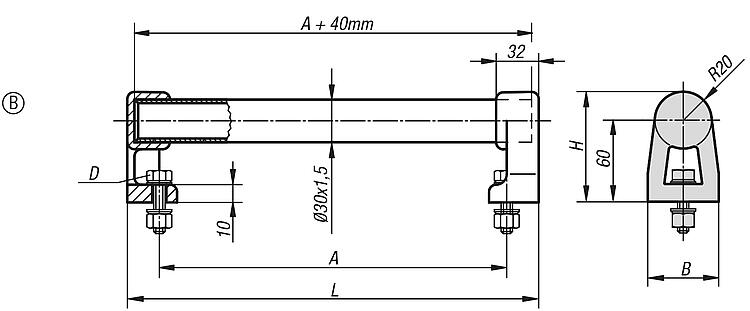

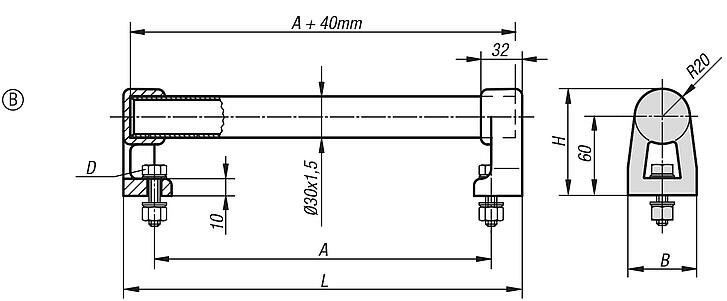

Tubular handles, aluminium with plastic grip legs, Form B

Item selection/filter

Order No.	Main colour	Form	A	B	D	H	L	Load capacity N	Price
06939-150302	black	B	150	48	M8x25	80	200	1000	on request
06939-300302	black	B	300	48	M8x25	80	350	1000	on request
06939-400302	black	B	400	48	M8x25	80	450	1000	on request
06939-200302	black	B	200	48	M8x25	80	250	1000	on request
06939-400303	natural	B	400	48	M8x25	80	450	1000	on request
06939-500303	natural	B	500	48	M8x25	80	550	1000	on request
06939-300303	natural	B	300	48	M8x25	80	350	1000	on request
06939-500302	black	B	500	48	M8x25	80	550	1000	on request
06939-150303	natural	B	150	48	M8x25	80	200	1000	on request
06939-200303	natural	B	200	48	M8x25	80	250	1000	on request
