        Ledge handles, aluminium

Item description/product images

Show/filter all items

DescriptionMaterial:Profile aluminium EN AW-6060Version:Matt-gloss anodised.Note:These ledge handles are available with M6 internal thread or with through hole for M5 countersunk screws for front mounting.Assembly:Form A from the rear.
Form B from the front.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06952 Ledge handles, aluminium

165 kB

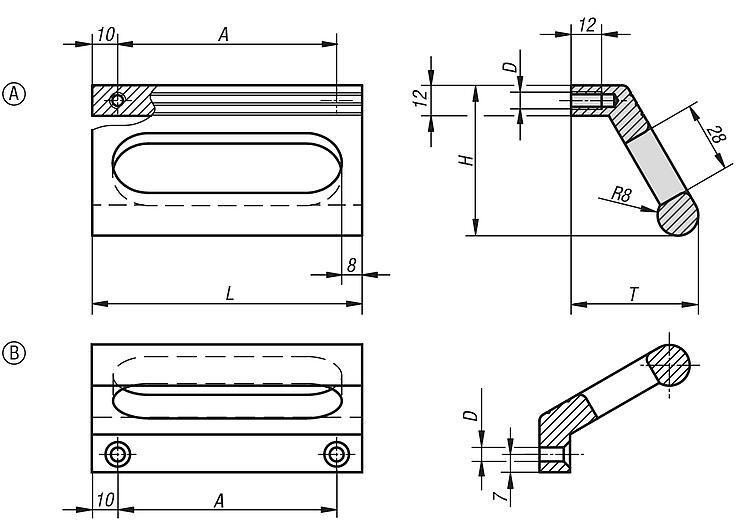

Drawings (total overview)

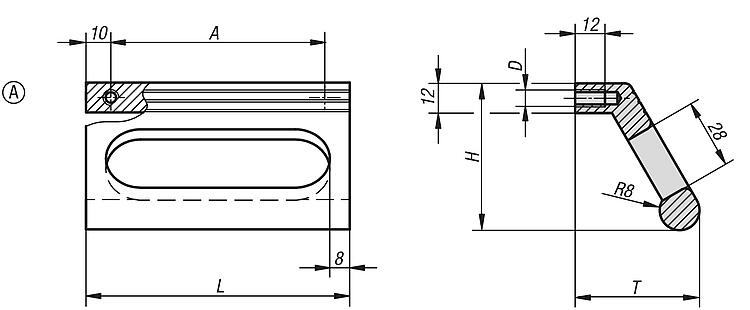

Ledge handles, aluminium, mounted from the rear

More information

Drawings

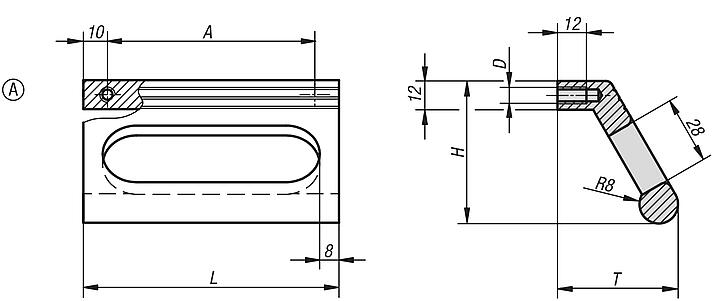

Ledge handles, aluminium, mounted from the rear

Item selection/filter

Order No.	Form	Main colour	A	D	H	L	T	Load capacity N	Price
06952-086061	A	black anodised	86	M6	59	106	50	500	on request
06952-100061	A	black anodised	100	M6	59	120	50	500	on request
06952-120061	A	black anodised	120	M6	59	140	50	500	on request
06952-086063	A	natural anodised	86	M6	59	106	50	500	on request
06952-100063	A	natural anodised	100	M6	59	120	50	500	on request
06952-120063	A	natural anodised	120	M6	59	140	50	500	on request

Ledge handles, aluminium, mounted from the front or rear

More information

Drawings

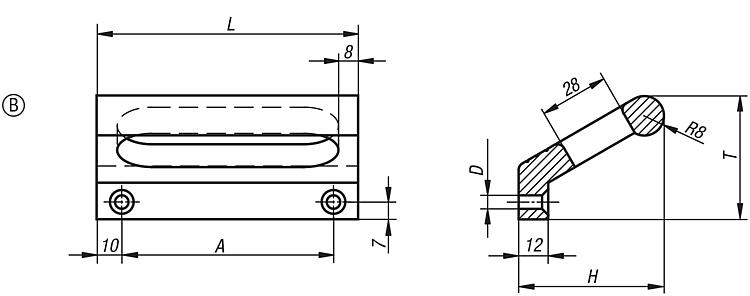

Ledge handles, aluminium, mounted from the front or rear

Item selection/filter

Order No.	Form	Main colour	A	D	H	L	T	Load capacity N	Price
06952-086051	B	black anodised	86	5,5	59	106	50	500	on request
06952-100051	B	black anodised	100	5,5	59	120	50	500	on request
06952-120051	B	black anodised	120	5,5	59	140	50	500	on request
06952-086053	B	natural anodised	86	5,5	59	106	50	500	on request
06952-100053	B	natural anodised	100	5,5	59	120	50	500	on request
06952-120053	B	natural anodised	120	5,5	59	140	50	500	on request
