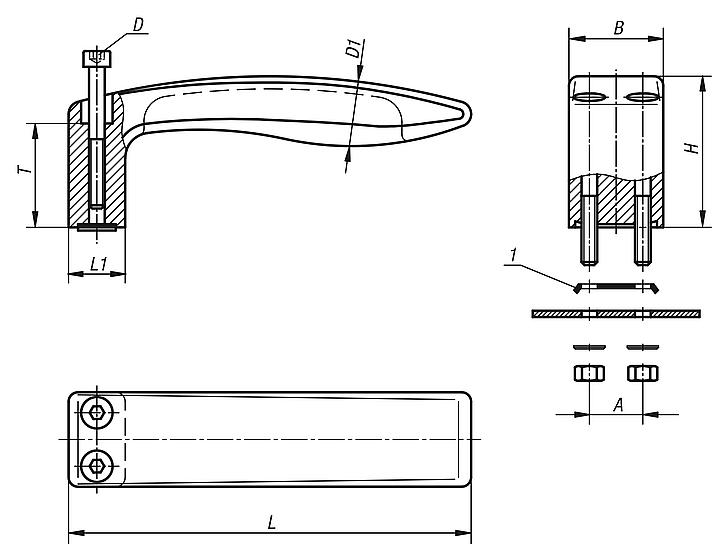

06959Pull handles, plastic, fastened from one side |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Glass-bead reinforced thermoplastic.
Fastening material 1.4301.Version:Matt black with fine texture.Note:These open-ended handles can be mounted right or left. They are form stable and have a high load rating.

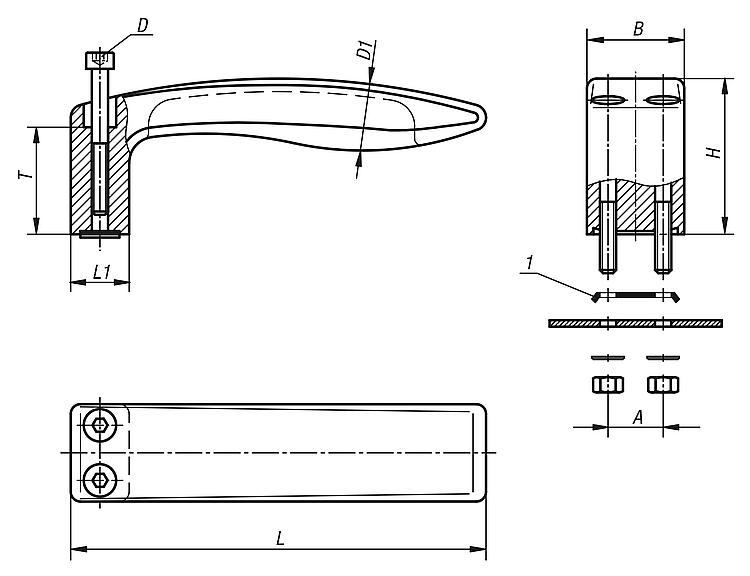

Fastening bolts, nuts and washers are supplied as is a locking plate to prevent twisting.Assembly:From the front.Drawing reference:Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| A | B | D | D1 | H | L | L1 | T | Load
capacity
N | CAD | Acc. | Price | Order |
|---|
| 06959-12805 | 17 | 30 | M5x45 | 20 | 48 | 128 | 18 | 33 | 800 |  | | on request | | | 06959-15606 | 20 | 36 | M6x55 | 24 | 58 | 156 | 22 | 40 | 1000 | | | on request | |
