        Pull handles, plastic with soft grip

Item description/product images

DescriptionMaterial:Main component polypropylene (PP).
Soft components thermoplastic elastomer.
Tapped bushes brass.Version:Main component black.

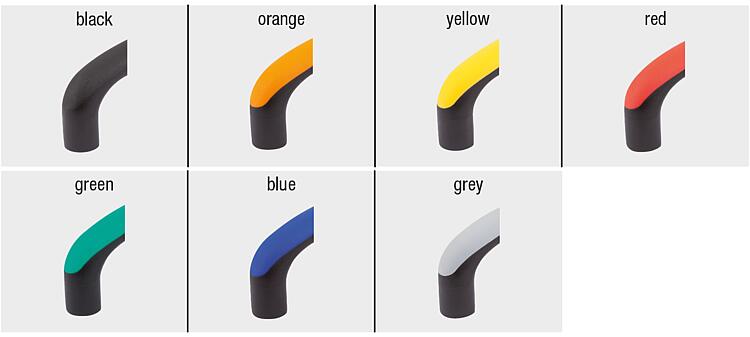

Soft components black, orange, yellow, red, green, blue, grey.
Tapped bushes electro zinc-plated.Note:Excellent carrying and gripping comfort thanks to its soft inner surface.Assembly:From the rear.On request:Main components grey with other colour combinations.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06913-10 Pull handles, plastic with soft grip

145 kB

Drawings

Item selection/filter

Order No.	Component colour	A	B	D	H	L	Load capacity N	Price
06913-10-0940411	black	93,7	16,3	M4	48,8	105	500	on request
06913-10-09404187	blue	93,7	16,3	M4	48,8	105	500	on request
06913-10-09404186	green	93,7	16,3	M4	48,8	105	500	on request
06913-10-09404184	red	93,7	16,3	M4	48,8	105	500	on request
06913-10-0940412	orange	93,7	16,3	M4	48,8	105	500	on request
06913-10-09404116	yellow	93,7	16,3	M4	48,8	105	500	on request
06913-10-09404188	grey	93,7	16,3	M4	48,8	105	500	on request
06913-10-1170511	black	117	20,6	M5	53,8	134,7	500	on request
06913-10-11705187	blue	117	20,6	M5	53,8	134,7	500	on request
06913-10-11705186	green	117	20,6	M5	53,8	134,7	500	on request
06913-10-11705184	red	117	20,6	M5	53,8	134,7	500	on request
06913-10-1170512	orange	117	20,6	M5	53,8	134,7	500	on request
06913-10-11705116	yellow	117	20,6	M5	53,8	134,7	500	on request
06913-10-11705188	grey	117	20,6	M5	53,8	134,7	500	on request
06913-10-1540611	black	148,5	26,7	M6	65	170,3	500	on request
06913-10-15406187	blue	148,5	26,7	M6	65	170,3	500	on request
06913-10-15406186	green	148,5	26,7	M6	65	170,3	500	on request
06913-10-15406184	red	148,5	26,7	M6	65	170,3	500	on request
06913-10-1540612	orange	148,5	26,7	M6	65	170,3	500	on request
06913-10-15406116	yellow	148,5	26,7	M6	65	170,3	500	on request
06913-10-15406188	grey	148,5	26,7	M6	65	170,3	500	on request
06913-10-1540811	black	148,5	26,7	M8	65	170,3	500	on request
06913-10-15408187	blue	148,5	26,7	M8	65	170,3	500	on request
06913-10-15408186	green	148,5	26,7	M8	65	170,3	500	on request
06913-10-15408184	red	148,5	26,7	M8	65	170,3	500	on request
06913-10-1540812	orange	148,5	26,7	M8	65	170,3	500	on request
06913-10-15408116	yellow	148,5	26,7	M8	65	170,3	500	on request
06913-10-15408188	grey	148,5	26,7	M8	65	170,3	500	on request
