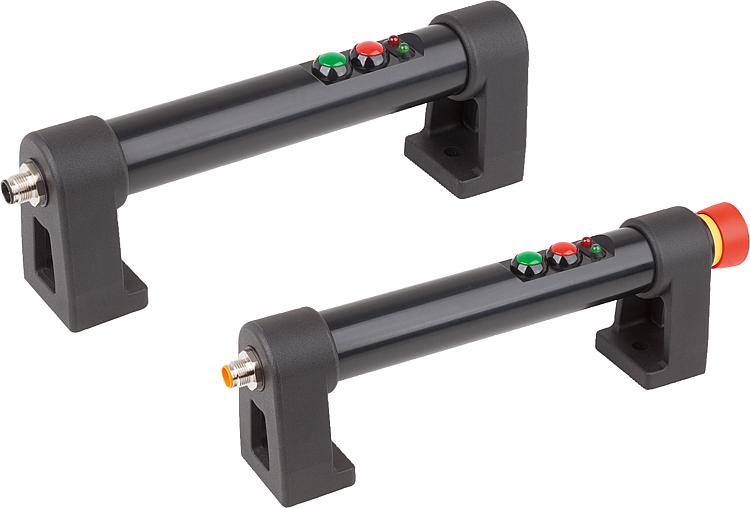

Tubular handles, plastic, with electronic switch function and two push buttons
 06980-11

Tubular handles, plastic, with electronic switch function and...

 go back

Item description/product images
DescriptionMaterial:Grip legs PA6 thermoplastic.
Grip tube PVC thermoplastic.Version:Grip legs black.
Grip tube black.Note:Form A:

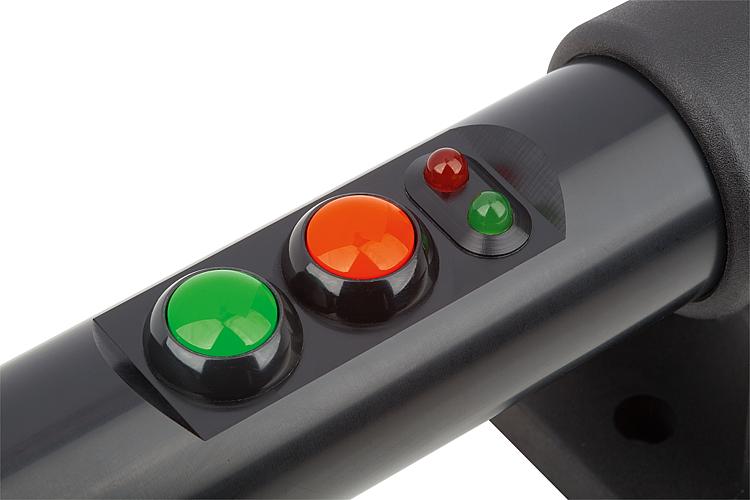

Push button 1 (changer)
Push button 2 (closer)
2 LED's
Plug 8 pin

Form B:

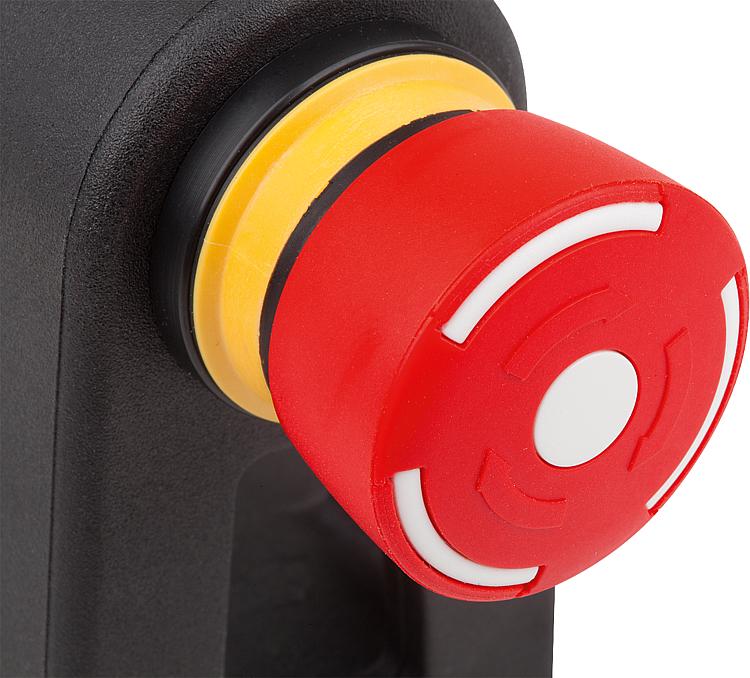

Emergency stop (2 opener)
Push button 1 (changer)
Push button 2 (closer)
2 LED's
Plug 12 pin
Technical data:See downloads, Technical Information

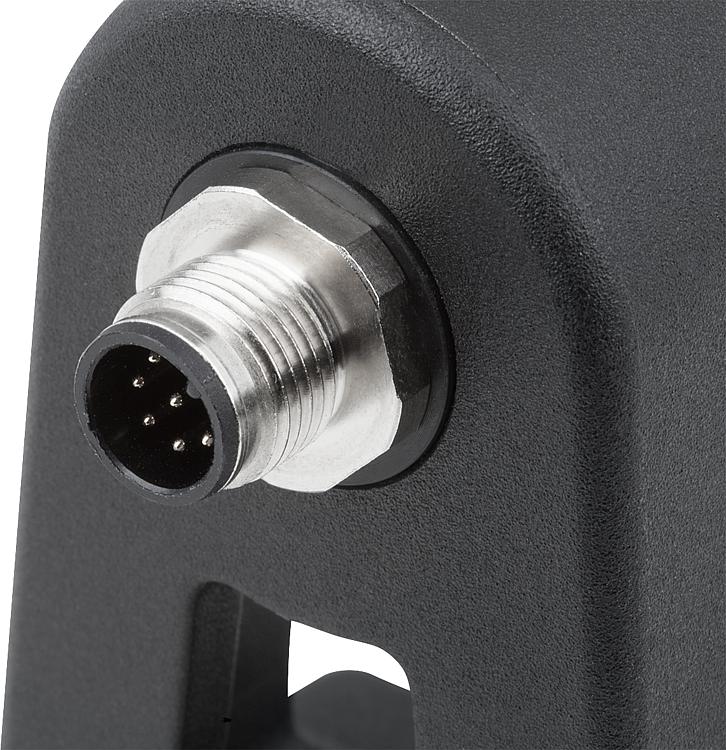

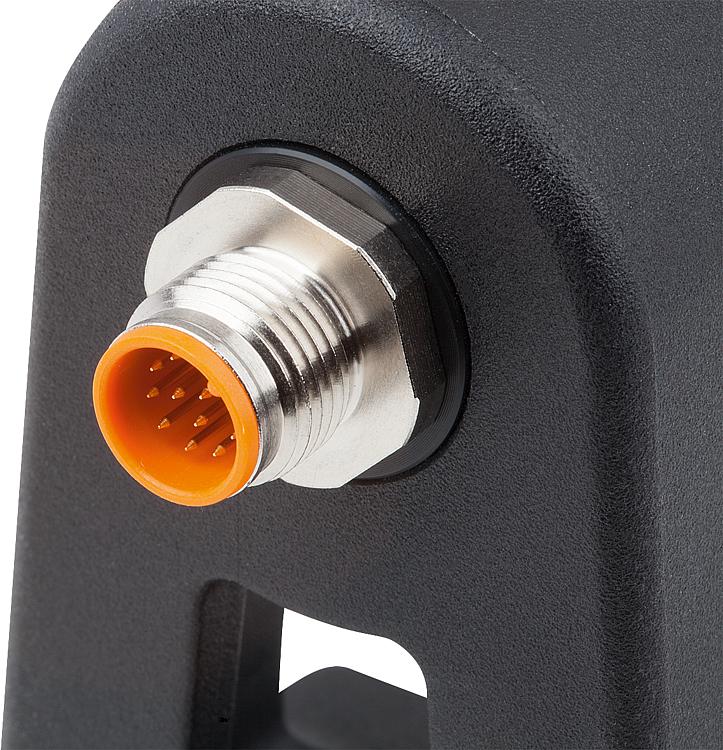

Connection type: M12x1 8 or 12 pin plug.

Rating: IP54 when connector is screwed on.
Assembly:From the front.Accessory:Plastic tubular handle with plastic grip legs 06980.
Connector bush M12x1, with screw lock 80150-10.

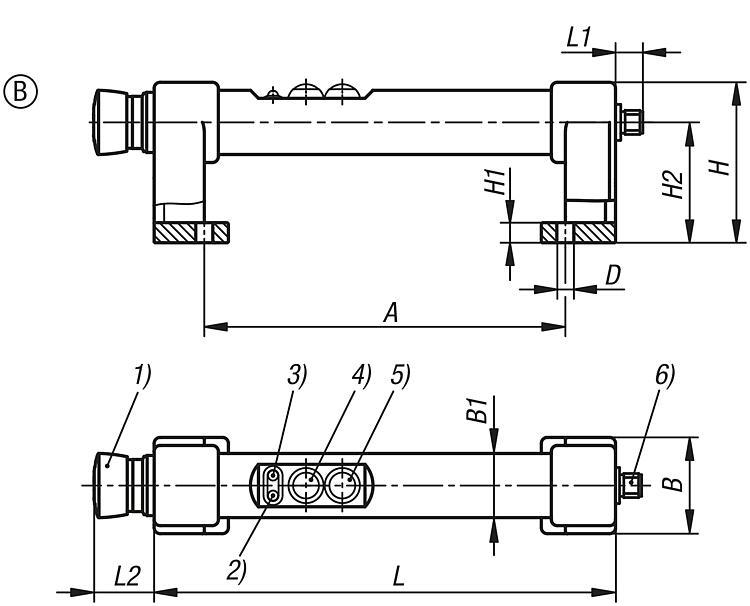

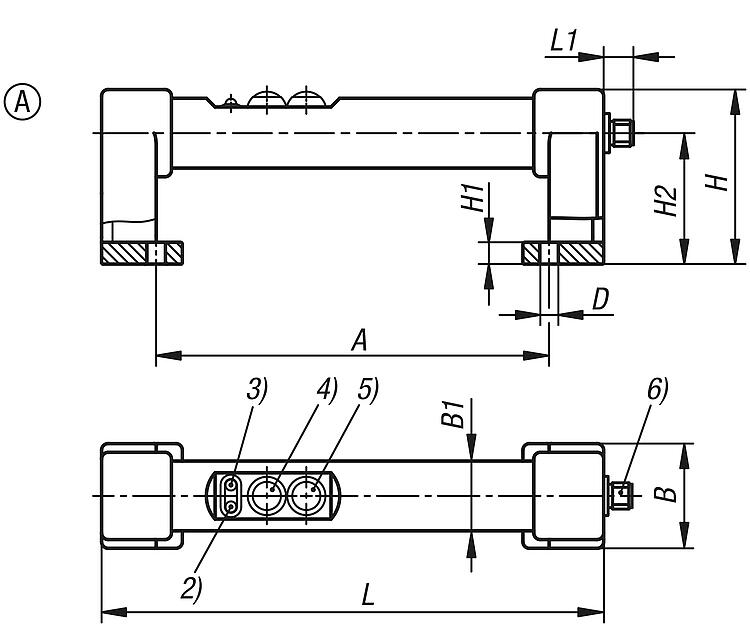

Drawing reference:
1) Emergency stop
2) Red LED
3) Green LED
4) Push button 1
5) Push button 2
6) Connector, M12x1
Special features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 06980-11 Tubular handles, plastic, with electronic switch function and two push buttons 879 kB

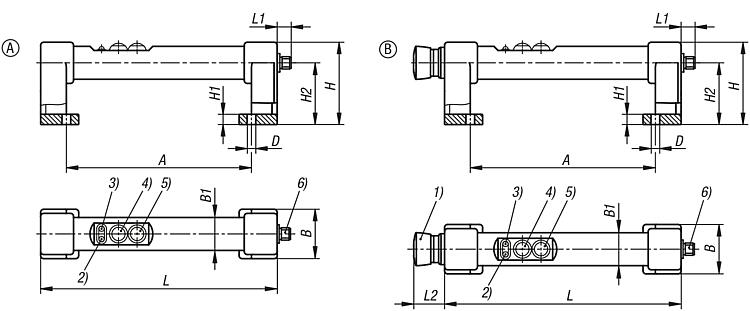

Drawings (total overview)

Tubular handles, plastic, with electronic switch function and two push buttons

Tubular handles, plastic, with electronic switch function and two push buttons, without emergency stop

 More information

Drawings
Tubular handles, plastic, with electronic switch function and two push buttons, without emergency stop

Item selection/filter


  •
  • A

  •
  • 180

  •
  • 48

  •
  • 32

  •
  • 8,5

  •
  • 80

  •
  • 10

  •
  • 60

  •
  • 230

  •
  • 13

  •
  • 1000

Reset
Order No.FormABB1D

HH1H2LL1Load
capacity
N		CADAcc.PriceOrder
06980-11-180A18048328,5801060230131000  on request

Tubular handles, plastic, with electronic switch function and two push buttons, with emergency stop

 More information

Drawings
Tubular handles, plastic, with electronic switch function and two push buttons, with emergency stop

Item selection/filter


  •
  • B

  •
  • 180

  •
  • 48

  •
  • 32

  •
  • 8,5

  •
  • 80

  •
  • 10

  •
  • 60

  •
  • 230

  •
  • 13

  •
  • 30

  •
  • 1000

Reset
Order No.FormABB1D

HH1H2LL1L2Load
capacity
N		CADAcc.PriceOrder
06980-11-1180B18048328,580106023013301000  on request
