        Pull handles, plastic, with electronic switch function and one push button

Item description/product images

DescriptionMaterial:Thermoplastic PA6.Version:Black thermoplastic.Note:Push button with red or green LED.

Form A:
Connector with 8 pin plug in the screw face of the grip leg

Form B:
Connection cable from the screw face of the grip leg.Technical data:See downloads, Technical Information
Connection type: M12x1 8 pole plug or 5 m cable
Rating: IP54 (for Form A with plug screwed on).
Assembly:From the rear.Accessory:For Form A:
Connector bush M12x1 with screw lock 80150-10Drawing reference:

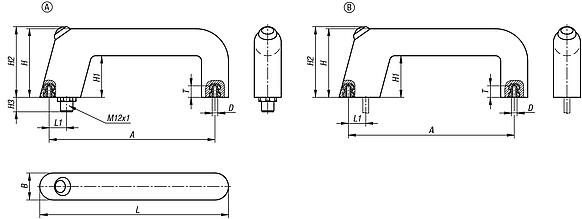

Form A: with plug
Form B: with cable

Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 06980 Pull handles, plastic, with electronic switch function and one push button

254 kB

Drawings (total overview)

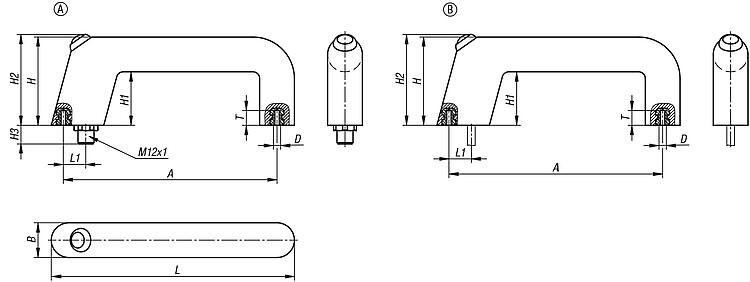

Pull handles, plastic, with electronic switch function and one push button, with plug

More information

Drawings

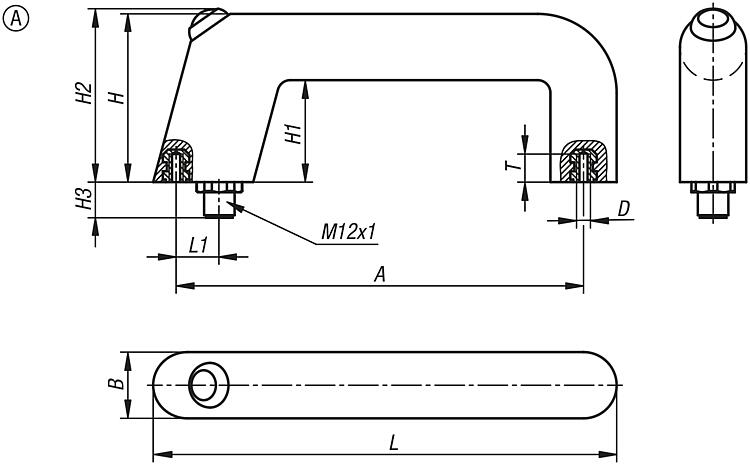

Pull handles, plastic, with electronic switch function and one push button, with plug

Item selection/filter

	A	green red	160	26	M6	66	40	70	10	182	17	10	1000				Reset
Order No.	Form	Component colour	A	B	D	H	H1	H2 max.	H3	L	L1	T	Load capacity N	CAD	Acc.	Price	Order
06980-11601	A	green	160	26	M6	66	40	70	10	182	17	10	1000			on request
06980-11602	A	red	160	26	M6	66	40	70	10	182	17	10	1000			on request

Pull handles, plastic, with electronic switch function and one push button, with cable

More information

Drawings

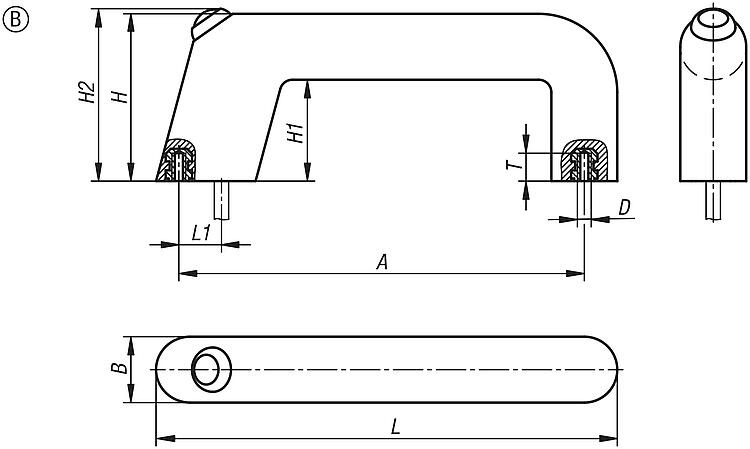

Pull handles, plastic, with electronic switch function and one push button, with cable

Item selection/filter

	B	green red	160	26	M6	66	40	70	182	17	10	1000				Reset
Order No.	Form	Component colour	A	B	D	H	H1	H2 max.	L	L1	T	Load capacity N	CAD	Acc.	Price	Order
06980-21601	B	green	160	26	M6	66	40	70	182	17	10	1000			on request
06980-21602	B	red	160	26	M6	66	40	70	182	17	10	1000			on request
