        Gripper pads round carbide

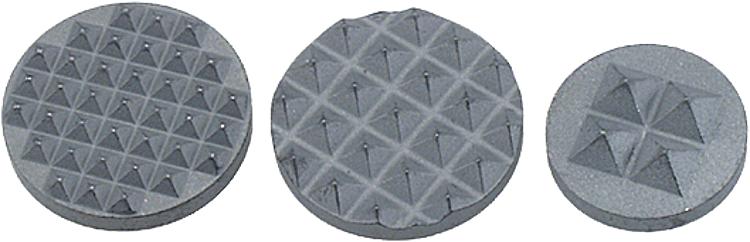

Item description/product images

DescriptionMaterial:Carbide.Version:sintered.Note:These carbide gripper pads are available as 4-point or serrated. They have many uses i.e. they can be glued onto cast iron base plates.Special features:

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07112 Gripper pads round carbide

154 kB

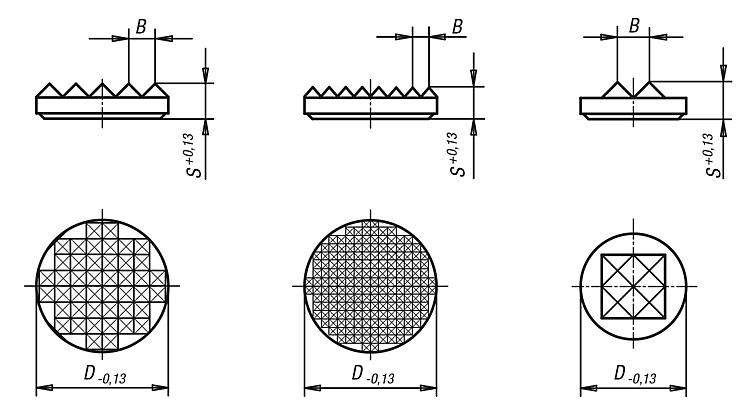

Drawings

Item selection/filter

Order No.	Version 2	D	S	B	Price
07112-110	serrated	6,35	3,2	2,3	on request
07112-111	serrated	7,9	3,2	2,3	on request
07112-112	serrated	9,5	3,2	3	on request
07112-113	serrated	12,7	3,2	3	on request
07112-114	serrated	19,05	3,2	3	on request
07112-211	fine serrated	7,9	3,2	1,5	on request
07112-212	fine serrated	9,5	3,2	2,3	on request
07112-213	fine serrated	12,7	3,2	2,3	on request
07112-214	fine serrated	19,05	3,2	2,3	on request
07112-215	fine serrated	25,4	4	2,3	on request
07112-411	4-point contact	7,9	3,2	3	on request
07112-412	4-point contact	9,5	3,2	3	on request
07112-413	4-point contact	12,7	4	3,5	on request
