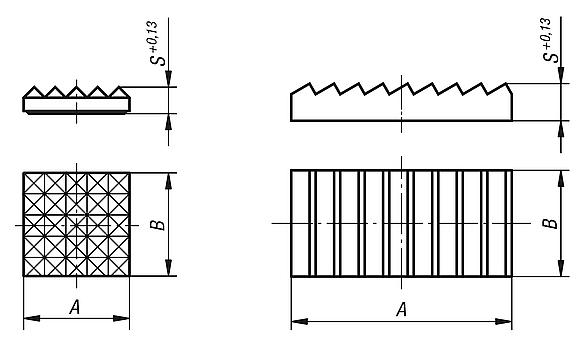

07116Gripper pads square carbide |
go back |
|
Item description/product images |
|
|

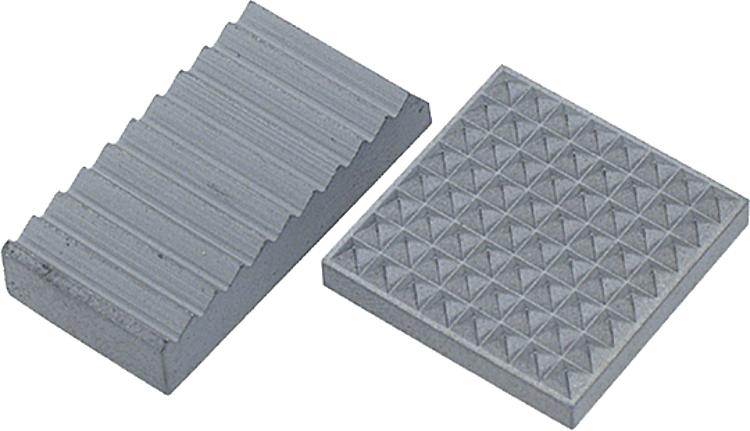

DescriptionMaterial:Carbide.Version:sintered.Note:These carbide gripper pads are available as serrated or wedge grips. They have many uses i.e. they can be glued onto cast iron base plates.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.

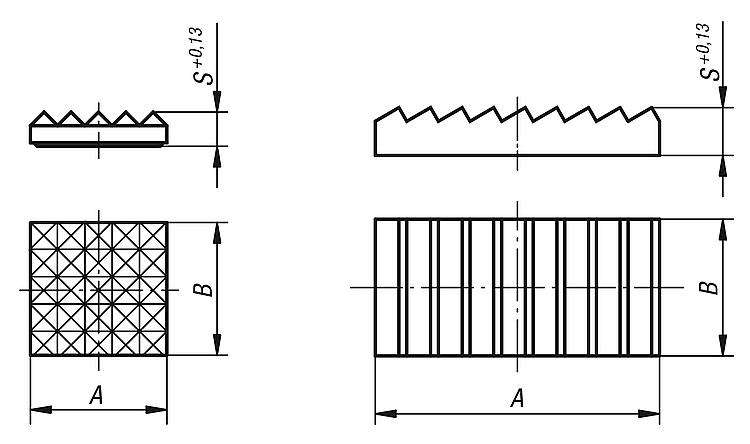

| Version 2 | A | B | S | CAD | Acc. | Price | Order |
|---|
| 07116-101 | serrated | 9,5 -0,13 | 9,5 -0,13 | 3,2 |  | | on request | | | 07116-102 | serrated | 12,7 -0,13 | 12,7 -0,13 | 3,2 | | | on request | | | 07116-201 | fine serrated | 9,5 -0,13 | 9,5 -0,13 | 3,2 | | | on request | | | 07116-202 | fine serrated | 12,7 -0,13 | 12,7 -0,13 | 3,2 | | | on request | | | 07116-203 | fine serrated | 15,9 -0,13 | 15,9 -0,13 | 3,2 | | | on request | | | 07116-206 | fine serrated | 19,05 -0,13 | 19,05 -0,13 | 4 | | | on request | | | 07116-207 | fine serrated | 25,4 -0,13 | 25,4 -0,13 | 4 | | | on request | | | 07116-308 | wedge-shaped | 25,7 +0,5 | 13,05 -0,13 | 4,8 | | | on request | | | 07116-309 | wedge-shaped | 38,4 +0,5 | 19,5 | 6,35 | | | on request | |
