        Grippers adjustable

Item description/product images

Show/filter all items

DescriptionMaterial:Hardened tool steel or carbide.Version:Black oxidised.Note:The full thread on the grippers allows exact adjustment to the clamping application.

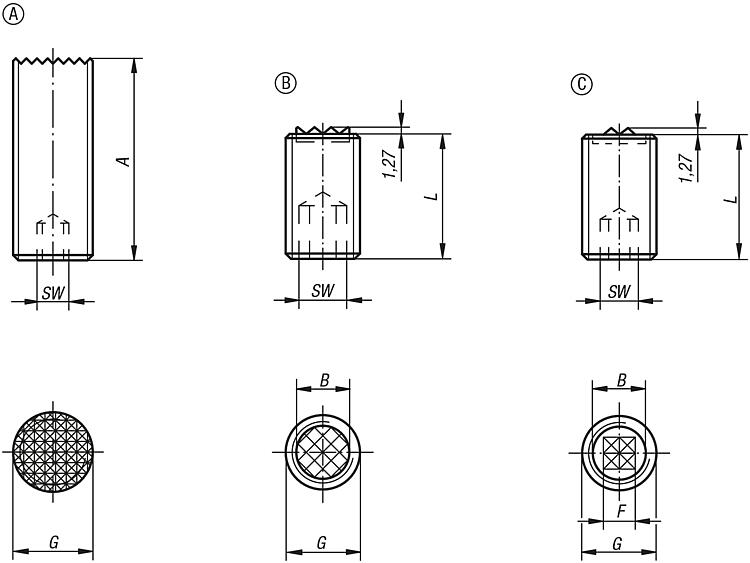

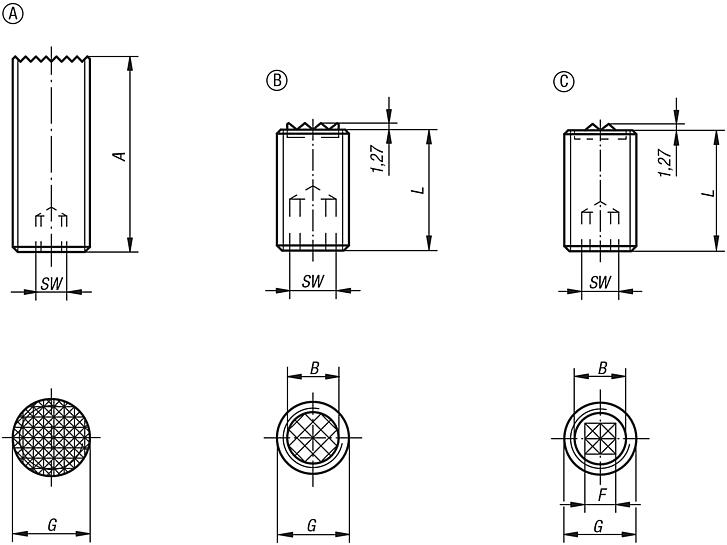

The carbide tips are soldered in.Drawing reference:

Form A: tool steel
Form B: tool steel, carbide diamond grip
Form C: 4-point carbide insert

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07117 Grippers adjustable

224 kB

Drawings (total overview)

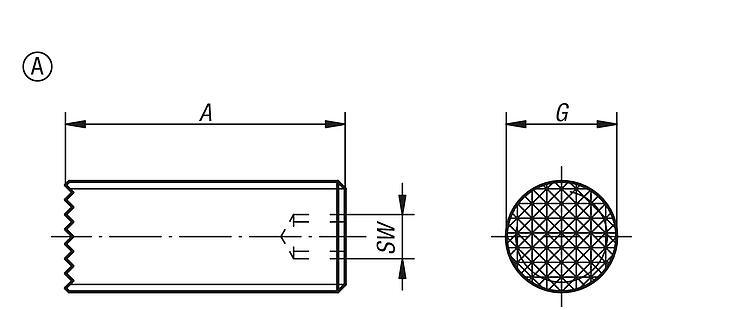

Adjustable grippers, Form A

More information

Drawings

Item selection/filter

Order No.	Form	A	G	SW	Price
07117-4010	A	40	M10	3	on request
07117-4012	A	40	M12	5	on request
07117-4016	A	40	M16	6	on request
07117-4020	A	40	M20	8	on request

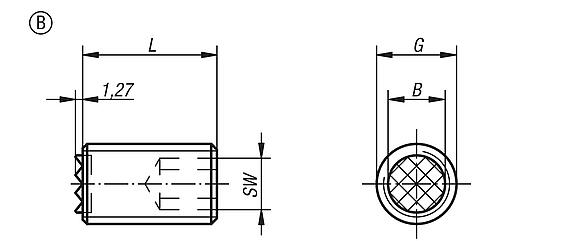

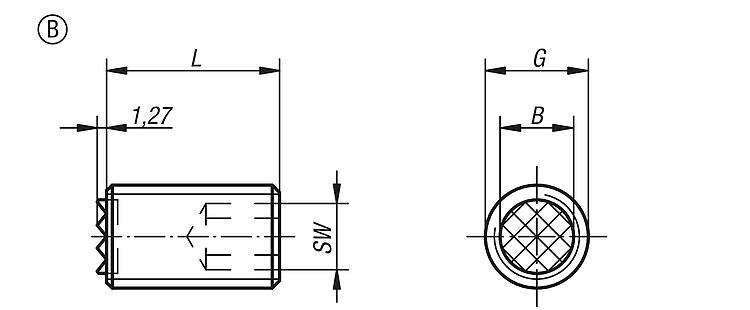

Adjustable grippers, Form B

More information

Drawings

Item selection/filter

Order No.	Form	L	B	G	SW	Price
07117-2510	B	25	6,4	M10	5	on request
07117-5010	B	50	6,4	M10	5	on request
07117-2512	B	25	7,9	M12	6	on request
07117-5012	B	50	7,9	M12	6	on request
07117-2516	B	25	11,2	M16	8	on request
07117-5016	B	50	11,2	M16	8	on request
07117-2520	B	25	12,7	M20	10	on request
07117-5020	B	50	12,7	M20	10	on request

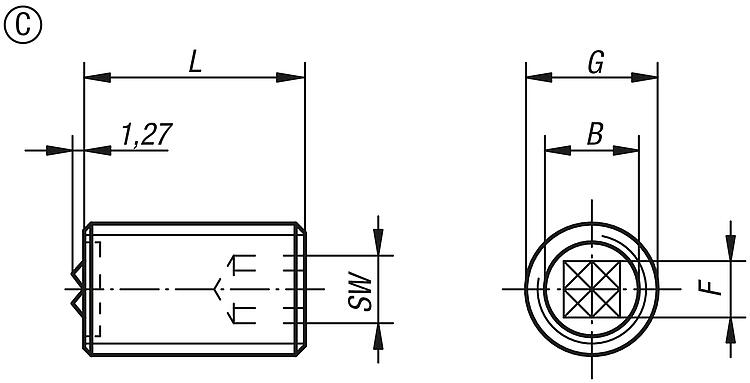

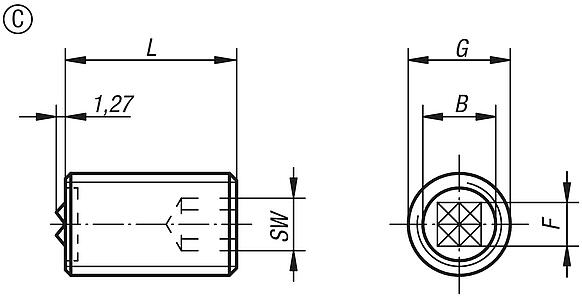

Adjustable grippers, Form C

More information

Drawings

Item selection/filter

Order No.	Form	L	B	G	F	SW	Price
07117-25124	C	25	7,9	M12	6,5	6	on request
07117-50124	C	50	7,9	M12	6,5	6	on request
07117-25164	C	25	11,2	M16	8	8	on request
07117-50164	C	50	11,2	M16	8	8	on request
07117-25204	C	25	12,7	M20	8	10	on request
07117-50204	C	50	12,7	M20	8	10	on request
