Thrust screws with radiused half-dog point

go back

Products
- Product overview
  - Flexible standard component system
    - Fasteners Ball-end thrust screws Thrust screws and thrust pads Grippers Torque bolts Threaded inserts Lifting bolts Swivel bales Ring bolts
      - Ball-end thrust screws and baseplates

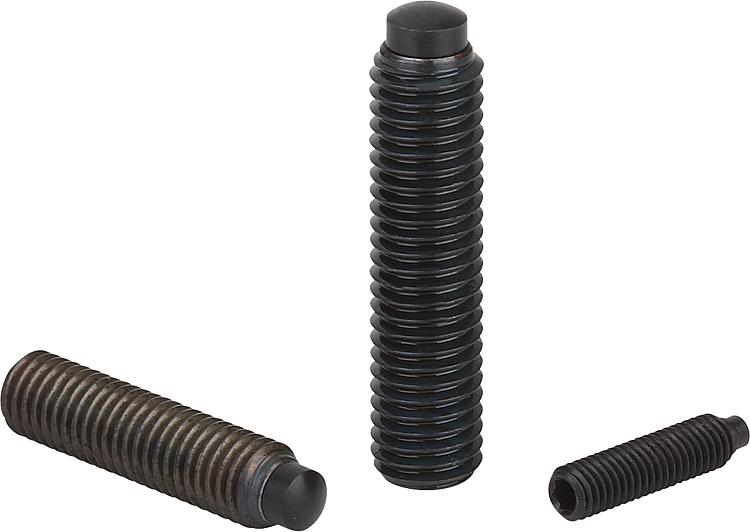

        Thrust screws with radiused half-dog point

Item description/product images

DescriptionMaterial:Screw steel grade 10.9.
Pin tool steel.Version:Pin, hardened.
Screw and pin black oxidised.Note:These rounded half-dog point thrust screws are used when a punctiform thrust or support point are required.

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 07123 Thrust screws with radiused half-dog point

130 kB

Grades

124 kB

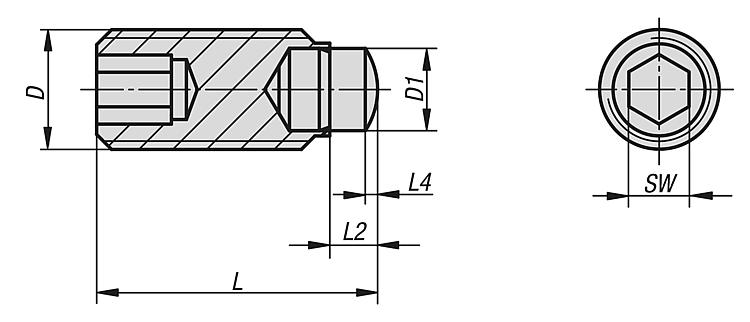

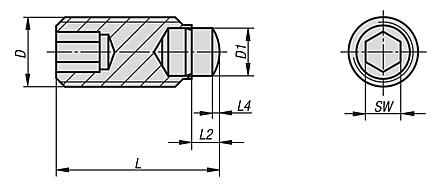

Drawings

Item selection/filter

Order No.	D	D1	L	L2	L4	SW	Load rating max. kN (static load only)	Price
07123-05X09	M5	3	9	1,8	0,5	2,5	4,5	on request
07123-05X13	M5	3	13	1,8	0,5	2,5	4,5	on request
07123-05X17	M5	3	17	1,8	0,5	2,5	4,5	on request
07123-05X21	M5	3	21	1,8	0,5	2,5	4,5	on request
07123-06X14	M6	4	14,3	2,7	0,8	3	9	on request
07123-06X18	M6	4	18,3	2,7	0,8	3	9	on request
07123-06X22	M6	4	22,3	2,7	0,8	3	9	on request
07123-06X27	M6	4	27,3	2,7	0,8	3	9	on request
07123-08X15	M8	5,5	14,8	3,2	0,8	4	15	on request
07123-08X19	M8	5,5	18,8	3,2	0,8	4	15	on request
07123-08X23	M8	5,5	22,8	3,2	0,8	4	15	on request
07123-08X28	M8	5,5	27,8	3,2	0,8	4	15	on request
07123-08X35	M8	5,5	34,8	3,2	0,8	4	15	on request
07123-10X19	M10	7	18,9	3,5	1,1	5	20	on request
07123-10X23	M10	7	22,9	3,5	1,1	5	20	on request
07123-10X28	M10	7	27,9	3,5	1,1	5	20	on request
07123-10X35	M10	7	34,9	3,5	1,1	5	20	on request
07123-10X43	M10	7	42,9	3,5	1,1	5	20	on request
