Shaft collars set screwDIN 705, stainless steel
07800

Shaft collars set screw DIN 705, stainless steel

go back

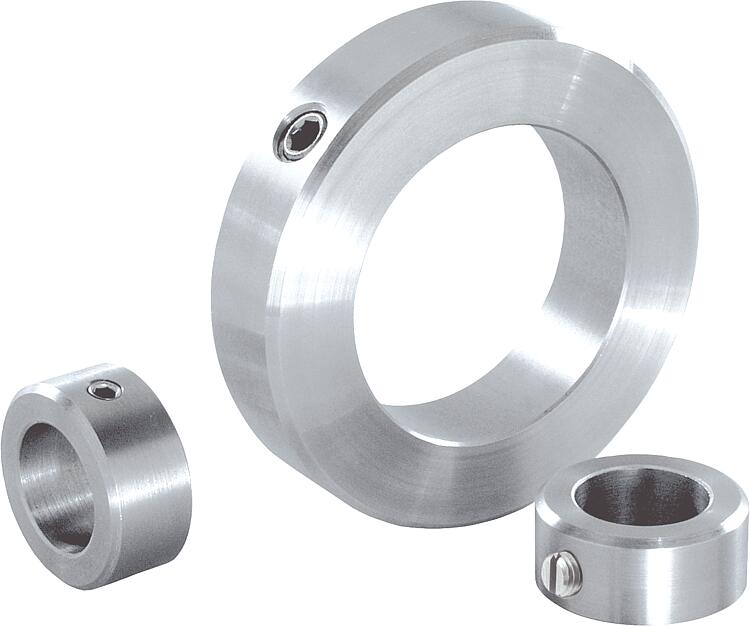

Item description/product images
DescriptionMaterial:

Stainless steel 1.4305.

Version:Bright.Note:Form A: with grub screw DIN 553 (recess)
Form E: with grub screw DIN 914 (hexagon socket)Drawing reference:
1) Second grub screw from D1 ≥ 75
Special features:
Stainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 07800 Shaft collars set screwDIN 705, stainless steel 201 kB

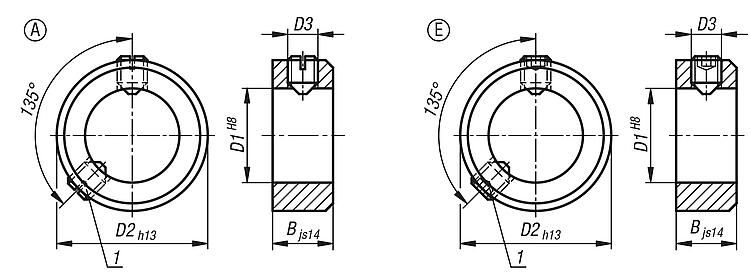

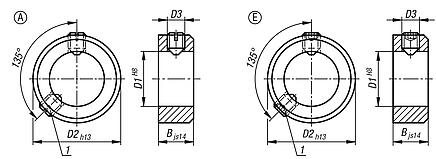

Drawings (total overview)

Shaft collars set screwDIN 705, stainless steel

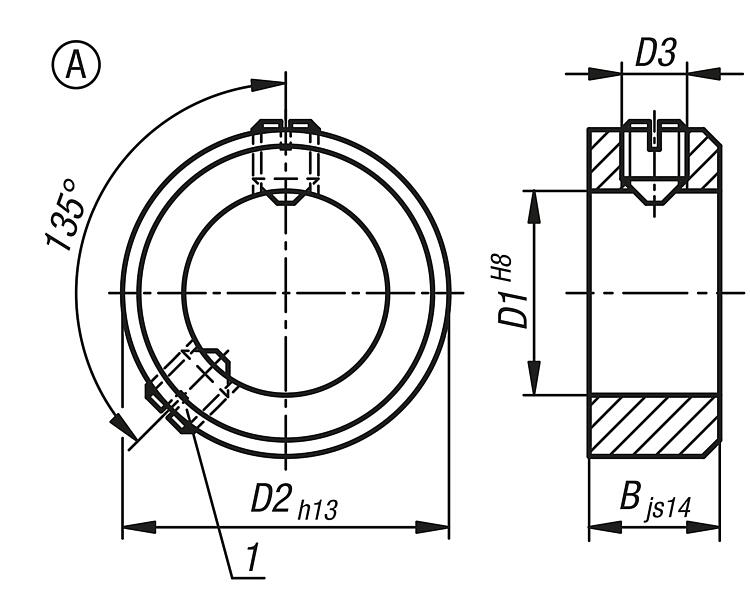

Shaft collars set screw DIN 705, stainless steel , Form A, recess

 More information

Drawings
Shaft collars set screw DIN 705, stainless steel , Form A, recess

Item selection/filter
Order No.FormComponent
material		D1BD2D3
grub screw		CADAcc.PriceOrder
07800-100302Astainless steel357M2x3 on request
07800-100402Astainless steel458M2,5x3 on request
07800-100502Astainless steel5610M3x4 on request
07800-100602Astainless steel6812M4x5 on request
07800-100702Astainless steel7812M4x5 on request
07800-100802Astainless steel8816M4x6 on request
07800-100902Astainless steel91018M5x8 on request
07800-101002Astainless steel101020M5x8 on request
07800-101102Astainless steel111020M5x8 on request
07800-101202Astainless steel121222M6x8 on request
07800-101402Astainless steel141225M6x8 on request
07800-101502Astainless steel151225M6x8 on request
07800-101602Astainless steel161228M6x8 on request
07800-101802Astainless steel181432M6x8 on request
07800-102002Astainless steel201432M6x8 on request
07800-102402Astainless steel241640M8x12 on request
07800-102502Astainless steel251640M8x10 on request
07800-102602Astainless steel261640M8x10 on request
07800-102802Astainless steel281645M8x12 on request
07800-103002Astainless steel301645M8x10 on request
07800-103202Astainless steel321650M8x12 on request
07800-103502Astainless steel351656M8x12 on request
07800-103602Astainless steel361656M8x12 on request
07800-103802Astainless steel381656M8x12 on request
07800-104002Astainless steel401863M10x16 on request
07800-104202Astainless steel421863M10x16 on request
07800-104502Astainless steel451870M10x16 on request
07800-104802Astainless steel481870M10x16 on request
07800-105002Astainless steel501880M10x16 on request
07800-105202Astainless steel521880M10x16 on request
07800-105502Astainless steel551880M10x16 on request
07800-105602Astainless steel561880M10x16 on request
07800-105802Astainless steel582090M10x16 on request
07800-106002Astainless steel602090M10x16 on request
07800-106302Astainless steel632090M10x16 on request
07800-106502Astainless steel6520100M10x20 on request
07800-106802Astainless steel6820100M10x20 on request
07800-107002Astainless steel7020100M10x20 on request
07800-107202Astainless steel7220100M10x20 on request
07800-107502Astainless steel7522110M12x20 on request
07800-108002Astainless steel8022110M12x20 on request
07800-108502Astainless steel8522125M12x25 on request
07800-109002Astainless steel9022125M12x20 on request
07800-110002Astainless steel10025140M12x25 on request

Shaft collars set screw DIN 705, stainless steel , Form E, hexagon socket

 More information

Drawings
Shaft collars set screw DIN 705, stainless steel , Form E, hexagon socket

Item selection/filter
Order No.FormComponent
material		D1BD2D3
grub screw		CADAcc.PriceOrder
07800-300302Estainless steel357M2x3 on request
07800-300402Estainless steel458M2,5x3 on request
07800-300502Estainless steel5610M3x4 on request
07800-300602Estainless steel6812M4x5 on request
07800-300702Estainless steel7812M4x5 on request
07800-300802Estainless steel8816M4x6 on request
07800-300902Estainless steel91018M5x8 on request
07800-301002Estainless steel101020M5x8 on request
07800-301102Estainless steel111020M5x8 on request
07800-301202Estainless steel121222M6x8 on request
07800-301402Estainless steel141225M6x8 on request
07800-301502Estainless steel151225M6x8 on request
07800-301602Estainless steel161228M6x8 on request
07800-301802Estainless steel181432M6x8 on request
07800-302002Estainless steel201432M6x8 on request
07800-302402Estainless steel241640M8x12 on request
07800-302502Estainless steel251640M8x10 on request
07800-302602Estainless steel261640M8x10 on request
07800-302802Estainless steel281645M8x12 on request
07800-303002Estainless steel301645M8x10 on request
07800-303202Estainless steel321650M8x12 on request
07800-303502Estainless steel351656M8x12 on request
07800-303602Estainless steel361656M8x12 on request
07800-303802Estainless steel381656M8x12 on request
07800-304002Estainless steel401863M10x16 on request
07800-304202Estainless steel421863M10x16 on request
07800-304502Estainless steel451870M10x16 on request
07800-304802Estainless steel481870M10x16 on request
07800-305002Estainless steel501880M10x16 on request
07800-305202Estainless steel521880M10x16 on request
07800-305502Estainless steel551880M10x16 on request
07800-305602Estainless steel561880M10x16 on request
07800-305802Estainless steel582090M10x16 on request
07800-306002Estainless steel602090M10x16 on request
07800-306302Estainless steel632090M10x16 on request
07800-306502Estainless steel6520100M10x20 on request
07800-306802Estainless steel6820100M10x20 on request
07800-307002Estainless steel7020100M10x20 on request
07800-307202Estainless steel7220100M10x20 on request
07800-307502Estainless steel7522110M12x20 on request
07800-308002Estainless steel8022110M12x20 on request
07800-308502Estainless steel8522125M12x25 on request
07800-309002Estainless steel9022125M12x20 on request
07800-310002Estainless steel10025140M12x25 on request
