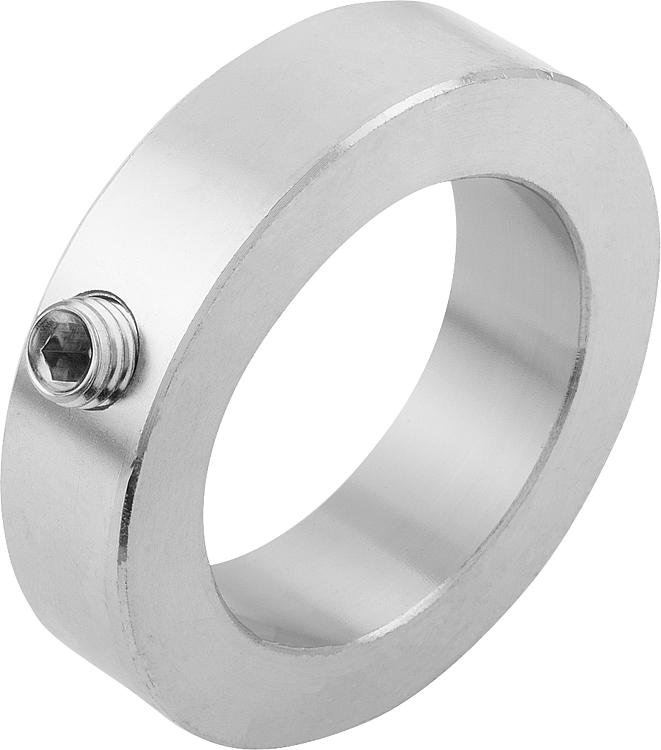

Shaft collars set screw DIN 705, stainless steel , Form E, hexagon socket
 07800_E

Shaft collars set screw DIN 705, stainless steel , Form E,...

 go back

Item description/product images
DescriptionMaterial:

Stainless steel 1.4305.

Version:Bright.Drawing reference:
1) Second grub screw from D1 ≥ 75
Special features:
Stainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 07800_E Shaft collars set screw DIN 705, stainless steel , Form E, hexagon socket 215 kB

Drawings

Shaft collars set screw DIN 705, stainless steel , Form E, hexagon socket

Item selection/filter
Order No.FormComponent
material		D1BD2D3
grub screw		CADAcc.PriceOrder
07800-300302Estainless steel357M2x3 on request
07800-300402Estainless steel458M2,5x3 on request
07800-300502Estainless steel5610M3x4 on request
07800-300602Estainless steel6812M4x5 on request
07800-300702Estainless steel7812M4x5 on request
07800-300802Estainless steel8816M4x6 on request
07800-300902Estainless steel91018M5x8 on request
07800-301002Estainless steel101020M5x8 on request
07800-301102Estainless steel111020M5x8 on request
07800-301202Estainless steel121222M6x8 on request
07800-301402Estainless steel141225M6x8 on request
07800-301502Estainless steel151225M6x8 on request
07800-301602Estainless steel161228M6x8 on request
07800-301802Estainless steel181432M6x8 on request
07800-302002Estainless steel201432M6x8 on request
07800-302402Estainless steel241640M8x12 on request
07800-302502Estainless steel251640M8x10 on request
07800-302602Estainless steel261640M8x10 on request
07800-302802Estainless steel281645M8x12 on request
07800-303002Estainless steel301645M8x10 on request
07800-303202Estainless steel321650M8x12 on request
07800-303502Estainless steel351656M8x12 on request
07800-303602Estainless steel361656M8x12 on request
07800-303802Estainless steel381656M8x12 on request
07800-304002Estainless steel401863M10x16 on request
07800-304202Estainless steel421863M10x16 on request
07800-304502Estainless steel451870M10x16 on request
07800-304802Estainless steel481870M10x16 on request
07800-305002Estainless steel501880M10x16 on request
07800-305202Estainless steel521880M10x16 on request
07800-305502Estainless steel551880M10x16 on request
07800-305602Estainless steel561880M10x16 on request
07800-305802Estainless steel582090M10x16 on request
07800-306002Estainless steel602090M10x16 on request
07800-306302Estainless steel632090M10x16 on request
07800-306502Estainless steel6520100M10x20 on request
07800-306802Estainless steel6820100M10x20 on request
07800-307002Estainless steel7020100M10x20 on request
07800-307202Estainless steel7220100M10x20 on request
07800-307502Estainless steel7522110M12x20 on request
07800-308002Estainless steel8022110M12x20 on request
07800-308502Estainless steel8522125M12x25 on request
07800-309002Estainless steel9022125M12x20 on request
07800-310002Estainless steel10025140M12x25 on request
