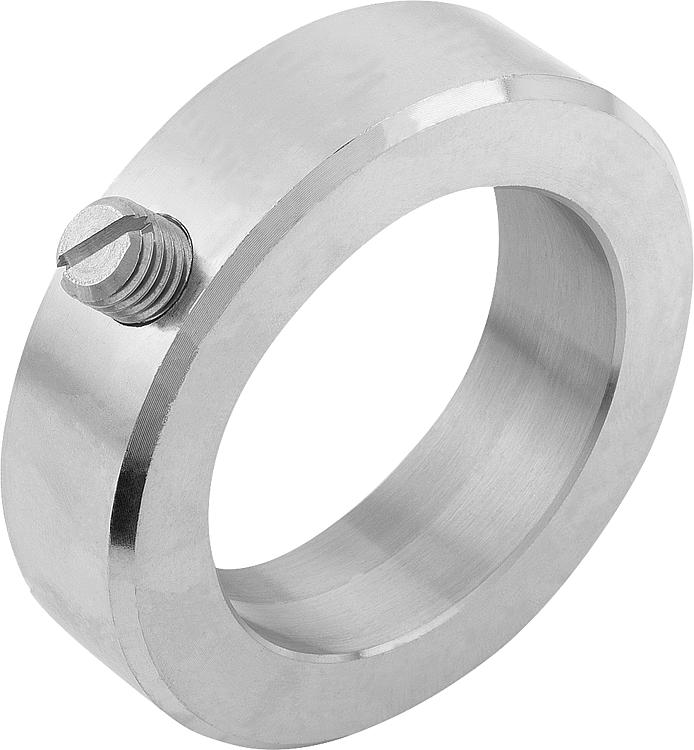

Shaft collars set screw DIN 705, stainless steel , Form A, recess
 07800_A

Shaft collars set screw DIN 705, stainless steel , Form A, recess

 go back

Item description/product images
DescriptionMaterial:

Stainless steel 1.4305.

Version:Bright.Drawing reference:
1) Second grub screw from D1 ≥ 75
Special features:
Stainless steel
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 07800_A Shaft collars set screw DIN 705, stainless steel , Form A, recess 264 kB

Drawings

Shaft collars set screw DIN 705, stainless steel , Form A, recess

Item selection/filter
Order No.FormComponent
material		D1BD2D3
grub screw		CADAcc.PriceOrder
07800-100302Astainless steel357M2x3 on request
07800-100402Astainless steel458M2,5x3 on request
07800-100502Astainless steel5610M3x4 on request
07800-100602Astainless steel6812M4x5 on request
07800-100702Astainless steel7812M4x5 on request
07800-100802Astainless steel8816M4x6 on request
07800-100902Astainless steel91018M5x8 on request
07800-101002Astainless steel101020M5x8 on request
07800-101102Astainless steel111020M5x8 on request
07800-101202Astainless steel121222M6x8 on request
07800-101402Astainless steel141225M6x8 on request
07800-101502Astainless steel151225M6x8 on request
07800-101602Astainless steel161228M6x8 on request
07800-101802Astainless steel181432M6x8 on request
07800-102002Astainless steel201432M6x8 on request
07800-102402Astainless steel241640M8x12 on request
07800-102502Astainless steel251640M8x10 on request
07800-102602Astainless steel261640M8x10 on request
07800-102802Astainless steel281645M8x12 on request
07800-103002Astainless steel301645M8x10 on request
07800-103202Astainless steel321650M8x12 on request
07800-103502Astainless steel351656M8x12 on request
07800-103602Astainless steel361656M8x12 on request
07800-103802Astainless steel381656M8x12 on request
07800-104002Astainless steel401863M10x16 on request
07800-104202Astainless steel421863M10x16 on request
07800-104502Astainless steel451870M10x16 on request
07800-104802Astainless steel481870M10x16 on request
07800-105002Astainless steel501880M10x16 on request
07800-105202Astainless steel521880M10x16 on request
07800-105502Astainless steel551880M10x16 on request
07800-105602Astainless steel561880M10x16 on request
07800-105802Astainless steel582090M10x16 on request
07800-106002Astainless steel602090M10x16 on request
07800-106302Astainless steel632090M10x16 on request
07800-106502Astainless steel6520100M10x20 on request
07800-106802Astainless steel6820100M10x20 on request
07800-107002Astainless steel7020100M10x20 on request
07800-107202Astainless steel7220100M10x20 on request
07800-107502Astainless steel7522110M12x20 on request
07800-108002Astainless steel8022110M12x20 on request
07800-108502Astainless steel8522125M12x25 on request
07800-109002Astainless steel9022125M12x20 on request
07800-110002Astainless steel10025140M12x25 on request
