08550Drilling jigs size 3 to 5 DIN 6348 |
go back |
|
Item description/product images |
|
|
DescriptionNote:Accessories see 08570 – 08610.
Force table, see technical information for DIN 6348 drilling jigs.Special features: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

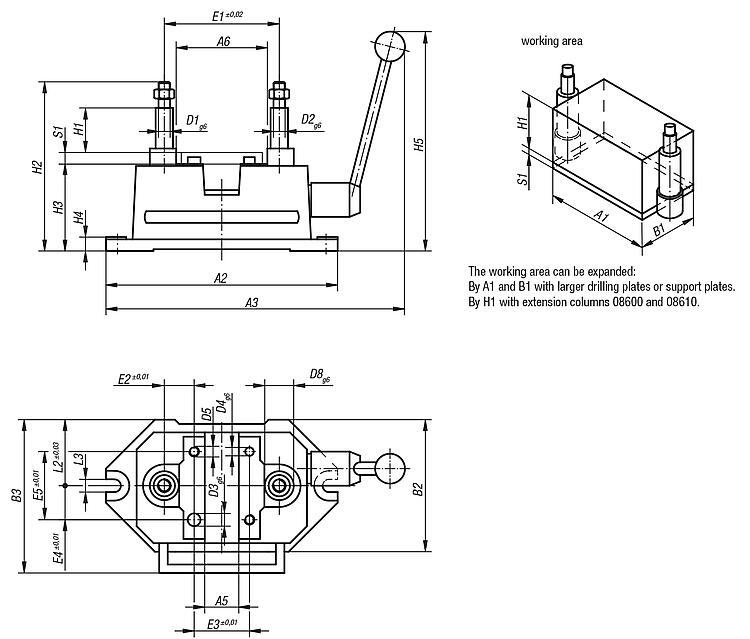

| Order No. | Size | Size
DIN 6348
| A1 | A2 | A3 | A5 | A6 | B1 | B2 | B3 | D1
| D2 | D3 | D4 | D5 | D8 | Status | CAD | Acc. | Price | Order |
|---|
| 08550-04 | 4 | 200x160 | 188 | 400 | 480 | 120 | 195 | 160 | 195 | 235 | 20 | 18 | 14 | 10 | M8 | 30 | expiring |  | | on request | |
Order No.
| E1 | E2 | E3 | E4 | E5 | H1
min. | H1
max. | H2
min. | H2
max. | H3 | H4 | H5 | L2 | L3 | S1 | Travel
at
210° | Status | CAD | Acc. | Price | Order |
|---|
| 08550-04 | 236 | 43 | 150 | 50 | 100 | 5 | 95 | 205 | 295 | 152 | 24 | 420 | 100 | 16 | 15 | 42 | expiring | | | on request | |
