Item description/product images |
|
|
DescriptionMaterial:Steel.Version:Carbonitrided and annealed, black oxidised. Lower part fine turned DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|

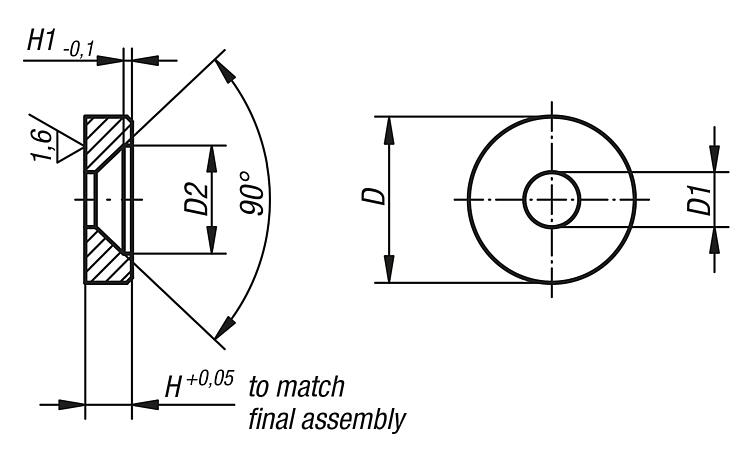

| Order No. | D | D1
| D2 | H | H1 | CAD | Acc. | Price | Order |
|---|
| 08180-01 | 12 | 4,3 | 8,3 | 2,5 | 0,4 |  | | on request | | | 08180-02 | 16 | 5,3 | 10,4 | 4,5 | 0,8 | | | on request | |
