Hinge blocks short
 08100

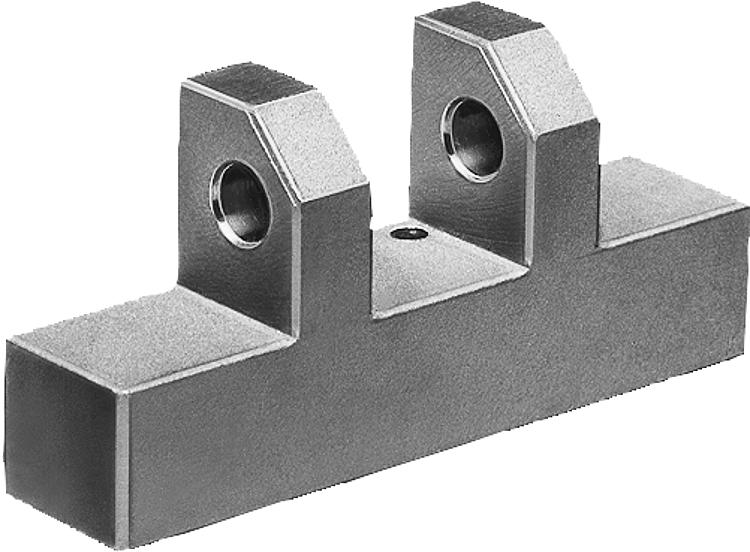

Hinge blocks short

 go back

Item description/product images
DescriptionMaterial:1.0036Version:PhosphatedSpecial features:
RoHS
DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.
Datasheet 08100 Hinge blocks short 222 kB

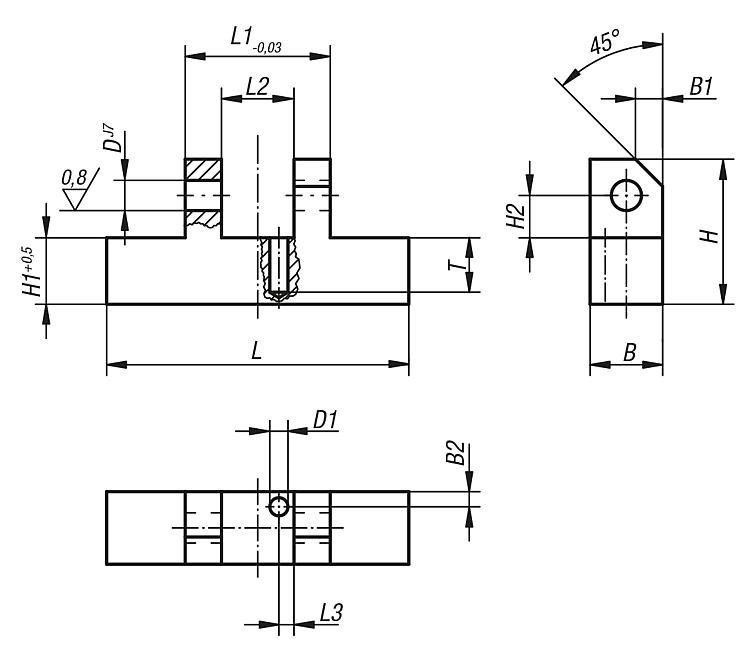

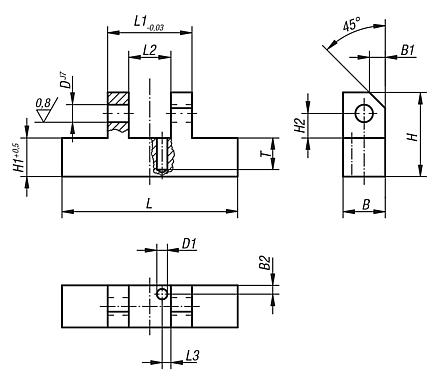

Drawings

Hinge blocks short

Item selection/filter
Order No.LL1L2L3BB1B2HH1H2DD1

TCADAcc.PriceOrder
08100-015024122,5124,52,524117539 on request
08100-026531162,51562,5301396310 on request
08100-0310049202,52082,54827118310 on request
