Item description/product images

Show/filter all items

DescriptionMaterial:Housing brass.
Magnetic core NdFeB (neodymium).Version:Housing smooth.Note:Smooth design, shielded system.
Under no circumstances may Neodym magnets be pressed directly into iron, loss of attractive force due to magnetic short circuits occurs.

Diameter “D” ground to tolerance h6.

The Form A magnets can be shortened by the dimension “H1” with no loss of magnetic force.Temperature range:max. 80°C.Assembly:The magnets can be mounted by press-fit, screwing-in or gluing.Drawing reference:

1) magnetic face

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 09067-10 Magnets deep pot NdFeB

180 kB

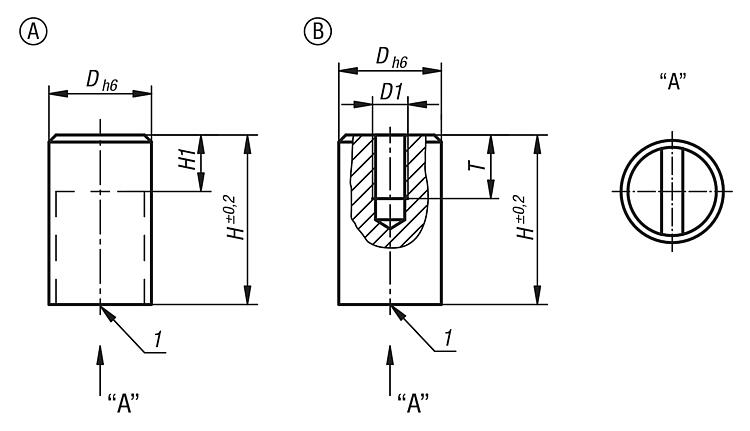

Drawings (total overview)

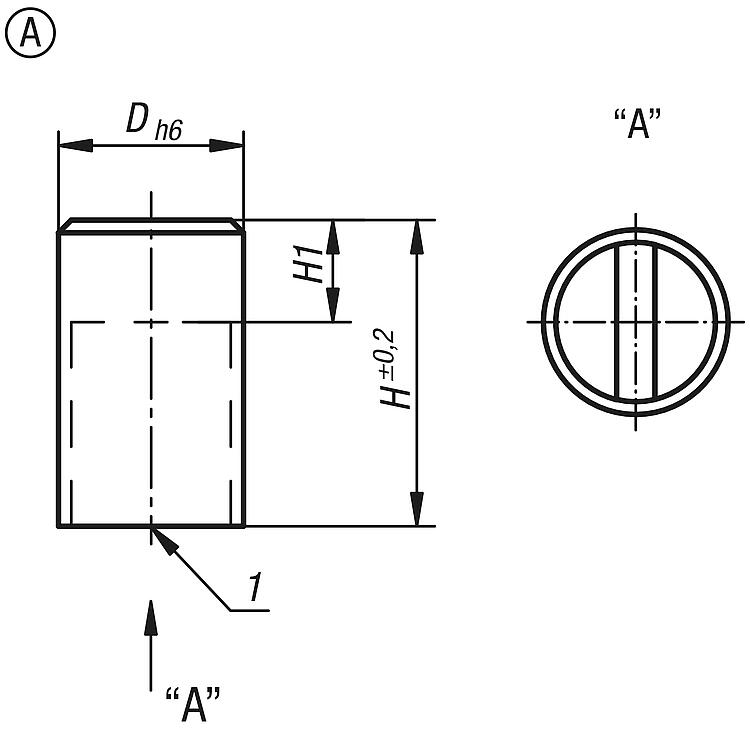

Magnets deep pot NdFeB, Form A

More information

Drawings

Item selection/filter

Order No.	Form	D	H	H1	Magnetic force N	Distance to iron wall mm	Price
09067-10-106	A	6	20	10	10	1,5	on request
09067-10-108	A	8	20	10	25	1,5	on request
09067-10-110	A	10	20	8	45	2	on request
09067-10-113	A	13	20	6	70	2,5	on request
09067-10-116	A	16	20	2	150	3	on request
09067-10-120	A	20	25	5	280	4	on request
09067-10-125	A	25	35	7	450	5	on request
09067-10-132	A	32	40	4,5	700	6	on request

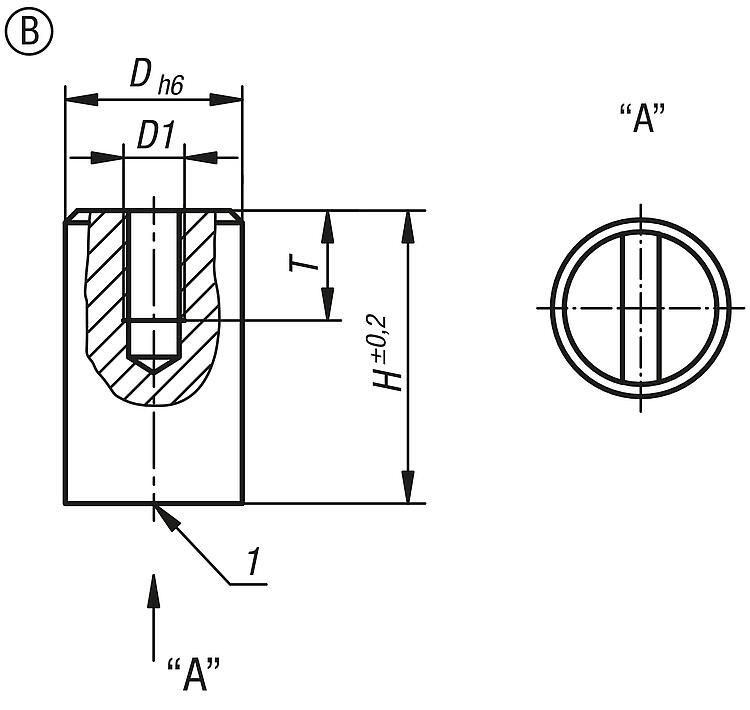

Magnets deep pot NdFeB, Form B

More information

Drawings

Item selection/filter

Order No.	Form	D	D1	H	T	Magnetic force N	Distance to iron wall mm	Price
09067-10-206	B	6	M3	20	5	10	1,5	on request
09067-10-208	B	8	M3	20	5	25	1,5	on request
09067-10-210	B	10	M4	20	7	45	2	on request
09067-10-213	B	13	M4	20	7	70	2,5	on request
09067-10-216	B	16	M4	25	8	150	3	on request
09067-10-220	B	20	M6	25	6	280	4	on request
09067-10-225	B	25	M6	35	8	450	5	on request
09067-10-232	B	32	M6	40	6	700	6	on request
