Magnets shallow pot with counterbore hard ferrite

Products
- Product overview
  - Flexible standard component system
    - Magnets
      - Magnets shallow pot with counterbore hard ferrite

Item description/product images

DescriptionMaterial:Housing, steel.
Magnetic core hard ferrite.Version:Housing, electro zinc-plated.Note:Shielded system.Temperature range:max. 200°C.Drawing reference:

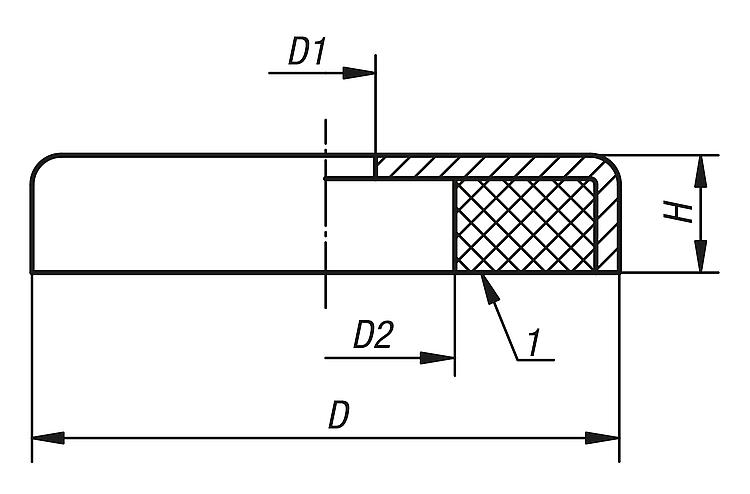

1) magnetic face

DownloadHere is all the information as a PDF datasheet:

Are you looking for CAD data? These can be found directly in the product table.

Datasheet 09070 Magnets shallow pot with counterbore hard ferrite

112 kB

Drawings

Item selection/filter

Order No.	D	D1	D2	H	Magnetic force N	Price
09070-50	50 ±0,20	8,5	22	10	180	on request
09070-63	63 ±0,20	6,5	24	14	290	on request
09070-80	80 ±0,25	6,5	11,5	18	540	on request
