09071Magnets shallow pot with countersink hard ferrite |
go back |
|
Item description/product images |
|
|
DescriptionMaterial:Housing, steel.

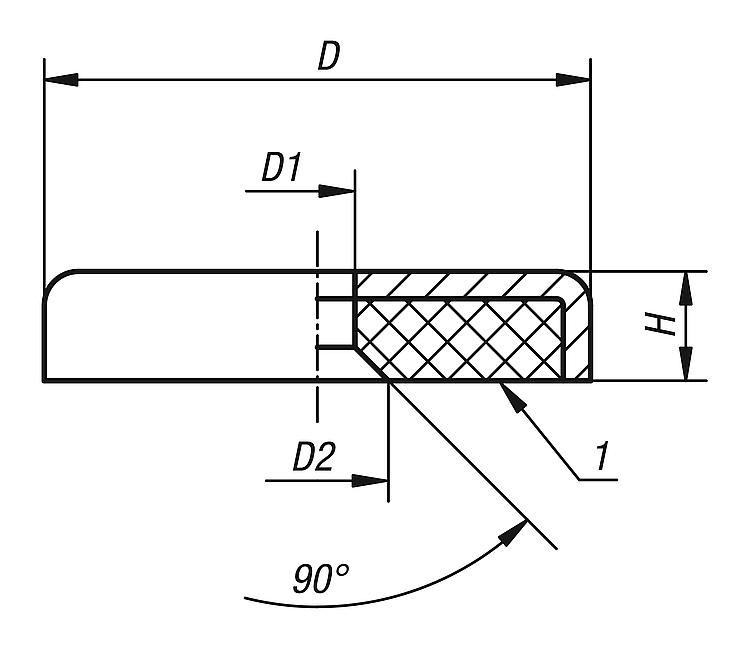

Magnetic core hard ferrite.Version:Housing, electro zinc-plated.Note:Shielded system.Temperature range:max. 200°C.Drawing reference: DownloadHere is all the information as a PDF datasheet:
Are you looking for CAD data? These can be found directly in the product table.
|
Order No.
| D | D1 | D2 | H | Magnetic
force
N | CAD | Acc. | Price | Order |
|---|
| 09071-01 | 16±0,15 | 3,5 ±0,2 | 7,5±1 | 4,5 | 14 |  | | on request | | | 09071-02 | 20±0,15 | 4,2±0,2 | 8,5±1 | 6 | 22 | | | on request | | | 09071-03 | 25±0,15 | 5,5±0,2 | 12±1 | 7 | 36 | | | on request | | | 09071-04 | 32±0,20 | 5,5±0,2 | 12±1 | 7 | 72 | | | on request | | | 09071-05 | 40±0,20 | 5,5±0,2 | 13±1 | 8 | 90 | | | on request | |
